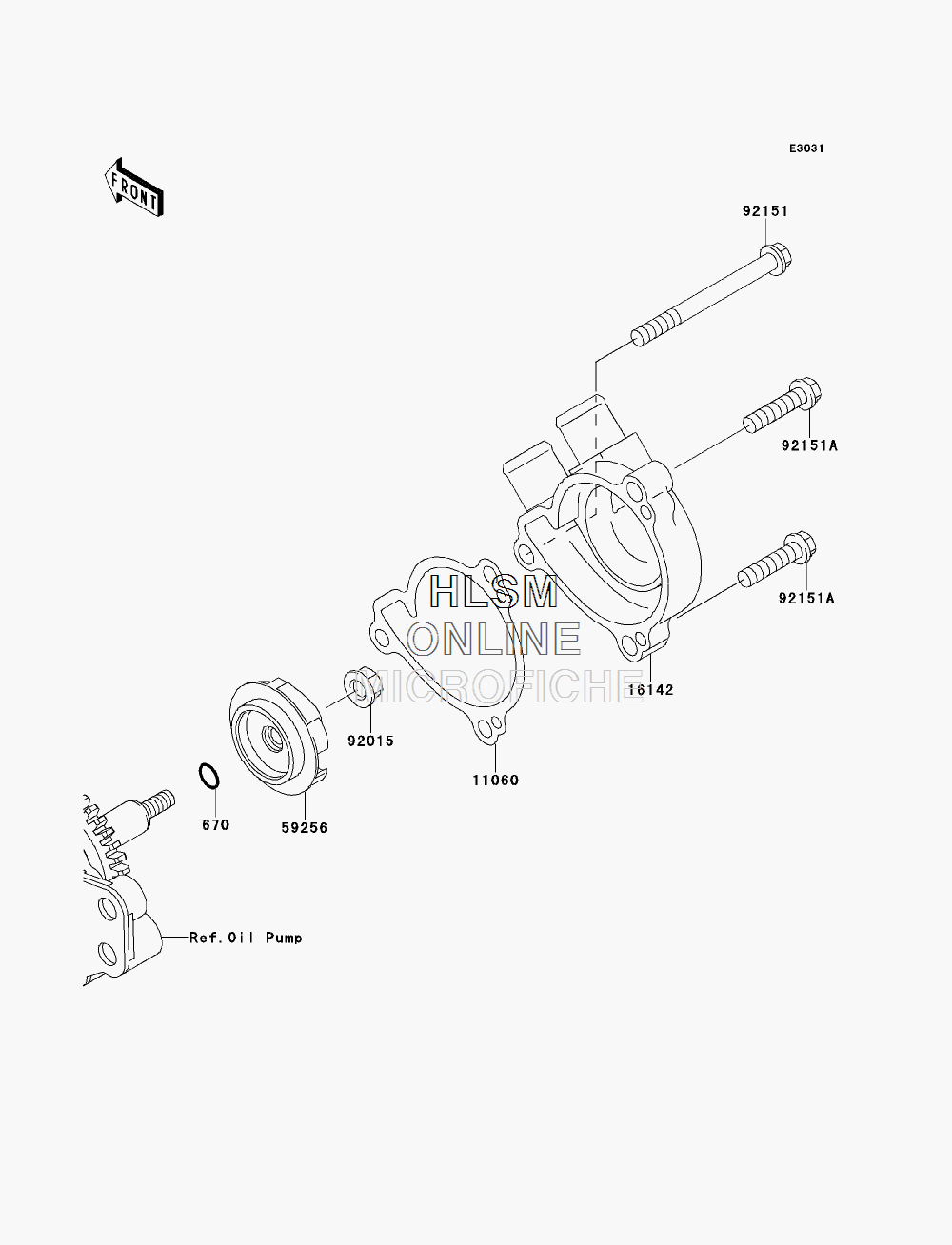

WATER PUMP для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
670670B1506 O RING,6MMO RING,6MM
-
1106011060-1328 GASKET,PUMP COVERGASKET,PUMP COVER
-
1614216142-0059 COVER-PUMPCOVER-PUMP
-
5925659256-1063 IMPELLERIMPELLER
-
9201592015-1078 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9215192151-1199 BOLT,6X65BOLT,6X65
-
92151A92151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
