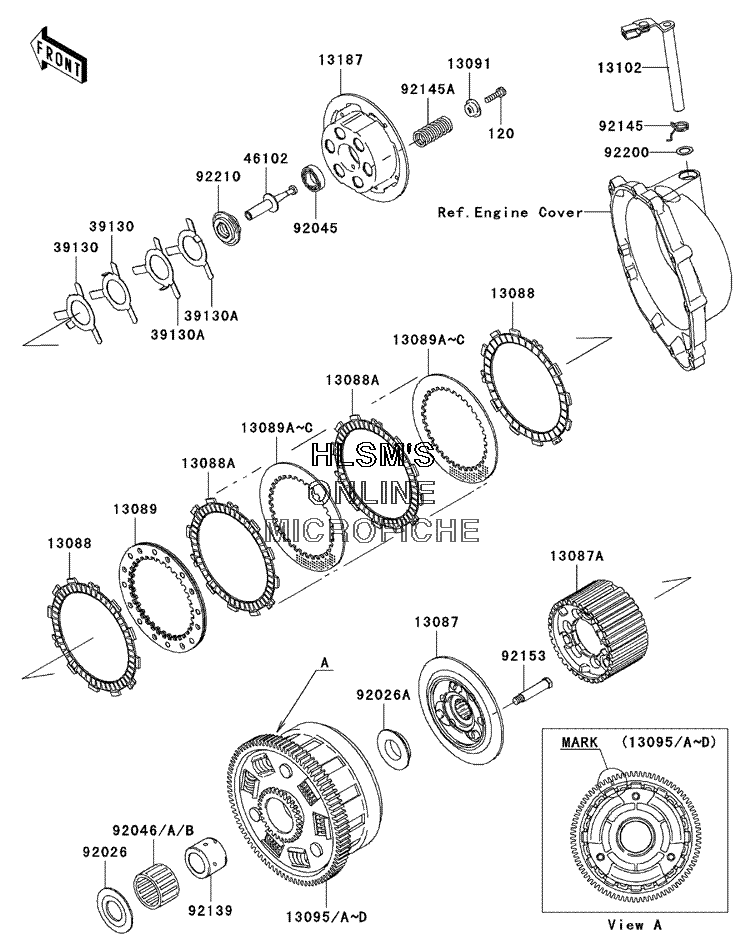

CLUTCH для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
120120W0620 BOLT, SOCKETBOLT, SOCKET
-
1308713087-0010 HUB, CLUTCHHUB, CLUTCH
-
13087A13087-0011 HUB, CLUTCHHUB, CLUTCH
-
1308813088-0003 PLATE, FRICTIONPLATE, FRICTION
-
13088A13088-0013 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-0003 PLATE, CLUTCHPLATE, CLUTCH
-
13089A13089-1084 PLATE, CLUTCH, T=2.3PLATE, CLUTCH, T=2.3
-
13089B13089-1093 PLATE, CLUTCHPLATE, CLUTCH
-
13089C13089-1115 PLATE, CLUTCH, T=2.6PLATE, CLUTCH, T=2.6
-
1309113091-1041 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-0031 HOUSING, COMP, CLUTCH, "A" MARKHOUSING, COMP, CLUTCH, "A" MARK
-
13095A13095-0032 HOUSING, COMP, CLUTCH, "B" MARKHOUSING, COMP, CLUTCH, "B" MARK
-
13095B13095-0033 HOUSING, COMP, CLUTCH, NO MARKHOUSING, COMP, CLUTCH, NO MARK
-
13095C13095-0034 HOUSING, COMP, CLUTCH, "C" MARKHOUSING, COMP, CLUTCH, "C" MARK
-
13095D13095-0035 HOUSING, COMP, CLUTCH, "D" MARKHOUSING, COMP, CLUTCH, "D" MARK
-
1310213102-0012 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1318713187-0006 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
3913039130-1078 SPRING, LEAFSPRING, LEAF
-
39130A39130-1079 SPRING, LEAFSPRING, LEAF
-
4610246102-0047 RODROD
-
9202692026-0029 SPACERSPACER
-
92026A92026-0037 SPACERSPACER
-
9204592045-1053 BEARING, BALL, 6903/2ABEARING, BALL, 6903/2A
-
9204692046-0010 BEARING, NEEDLE, CLUTCH, "1"BEARING, NEEDLE, CLUTCH, "1"
-
92046A92046-0011 BEARING, NEEDLE, CLUTCH, "2"BEARING, NEEDLE, CLUTCH, "2"
-
92046B92046-1263 BEARING, NEEDLE, K38X43X28.8XBEARING, NEEDLE, K38X43X28.8X
-
9213992139-0067 BUSHING, 25X38X29.05BUSHING, 25X38X29.05
-
9214592145-0194 SPRINGSPRING
-
92145A92145-0220 SPRING, CLUTCHSPRING, CLUTCH
-
9215392153-0553 BOLTBOLT
-
9220092200-1487 WASHER, 12X18.5X0.5WASHER, 12X18.5X0.5
-
9221092210-0152 NUTNUT
