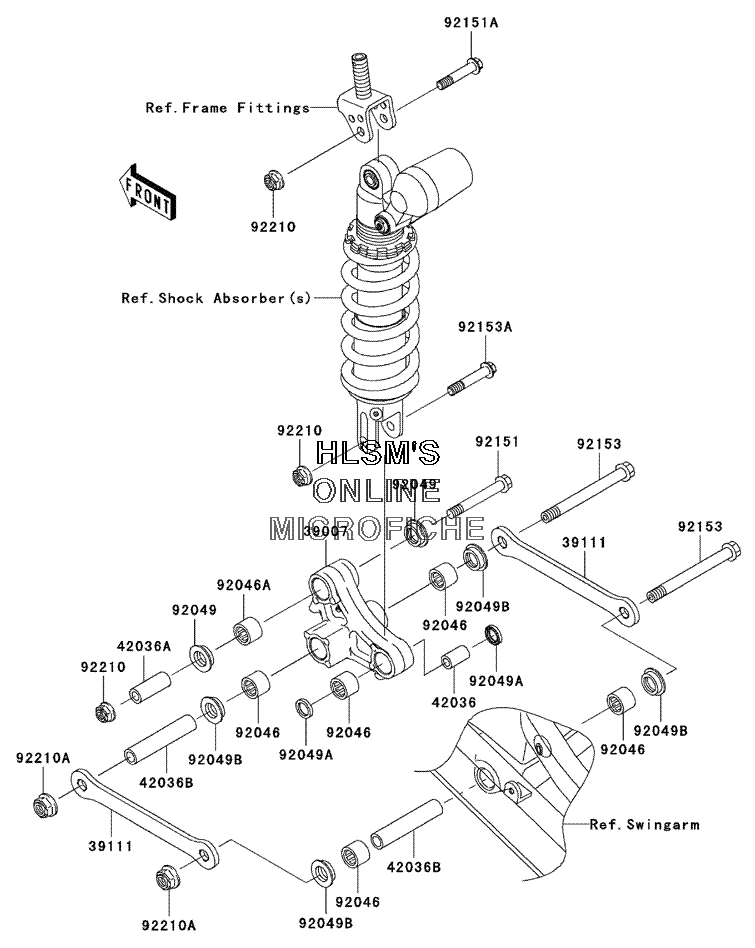

SUSPENSION - REAR для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
3900739007-0003 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
3911139111-0008 ROD, TIE, SUSPENSIONROD, TIE, SUSPENSION
-
4203642036-1258 SLEEVE, 10.1X18X30SLEEVE, 10.1X18X30
-
42036A42036-1342 SLEEVE, 10.1X17X44.5SLEEVE, 10.1X17X44.5
-
42036B42036-1360 SLEEVE, 12.1X18X90SLEEVE, 12.1X18X90
-
9204692046-1272 BEARING, NEEDLE, SFYZM182417BEARING, NEEDLE, SFYZM182417
-
92046A92046-1273 BEARING, NEEDLE, SFYZM172425BEARING, NEEDLE, SFYZM172425
-
9204992049-1223 SEAL, OIL, MHA17245.7FSEAL, OIL, MHA17245.7F
-
92049A92049-1225 SEAL, OIL, MHA18244SEAL, OIL, MHA18244
-
92049B92049-1493 SEAL, OIL, KCR MF018N1SEAL, OIL, KCR MF018N1
-
9215192151-1600 BOLT, FLANGED, 10X77BOLT, FLANGED, 10X77
-
92151A92151-1798 BOLT, FLANGED, 10X51BOLT, FLANGED, 10X51
-
9215392153-0508 BOLT, FLANGED, 12X117BOLT, FLANGED, 12X117
-
92153A92153-0663 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1150 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
