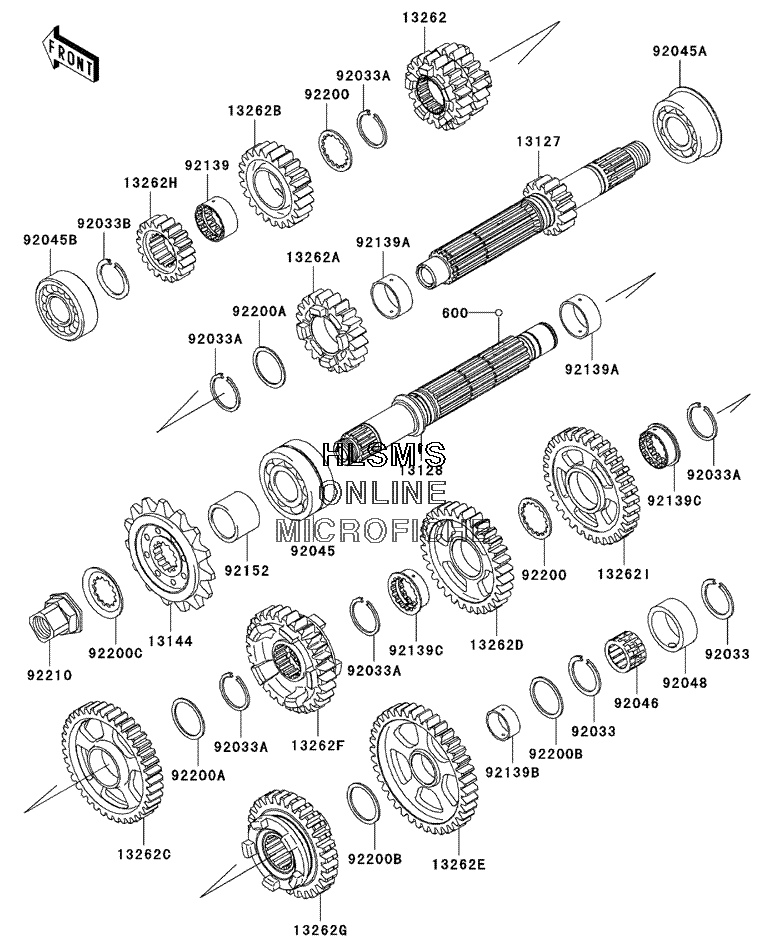

TRANSMISSION для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-0027 SHAFT, TRANSMISSION INPUT (15 TEETH)SHAFT, TRANSMISSION INPUT (15 TEETH)
-
1312813128-0019 SHAFT, TRANSMISSION OUTPUT (13 TEETH)SHAFT, TRANSMISSION OUTPUT (13 TEETH)
-
1314413144-0004 SPROCKET, OUTPUT (17 TEETH)#525SPROCKET, OUTPUT (17 TEETH)#525
-
1326213262-0134 GEAR, INPUT 3RD AND 4TH (19 TEETH) AND 21TGEAR, INPUT 3RD AND 4TH (19 TEETH) AND 21T
-
13262A13262-0135 GEAR, INPUT 5TH (21 TEETH)GEAR, INPUT 5TH (21 TEETH)
-
13262B13262-0136 GEAR, INPUT 6TH (23 TEETH)GEAR, INPUT 6TH (23 TEETH)
-
13262C13262-0152 GEAR, OUTPUT 2ND (39 TEETH)GEAR, OUTPUT 2ND (39 TEETH)
-
13262D13262-0166 GEAR, OUTPUT 4TH (32 TEETH)GEAR, OUTPUT 4TH (32 TEETH)
-
13262E13262-0170 GEAR, OUTPUT LOW (38 TEETH)GEAR, OUTPUT LOW (38 TEETH)
-
13262F13262-0171 GEAR, OUTPUT 6TH (30 TEETH)GEAR, OUTPUT 6TH (30 TEETH)
-
13262G13262-0183 GEAR, OUTPUT 5TH (29 TEETH)GEAR, OUTPUT 5TH (29 TEETH)
-
13262H13262-0185 GEAR, INPUT 2ND (19 TEETH)GEAR, INPUT 2ND (19 TEETH)
-
13262I13262-0218 GEAR, OUTPUT 3RD (33 TEETH)GEAR, OUTPUT 3RD (33 TEETH)
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-1037 RING, SNAP, 25.9X30.6X1.2RING, SNAP, 25.9X30.6X1.2
-
92033B92033-1249 RING, SNAP, T=1.5RING, SNAP, T=1.5
-
9204592045-0003 BEARING, BALL, DAC2557NSSHBEARING, BALL, DAC2557NSSH
-
92045A92045-0014 BEARING, BALL, 5205N6RSH2CS6BEARING, BALL, 5205N6RSH2CS6
-
92045B92045-0015 BEARING, BALL, DG2152SH2C3BEARING, BALL, DG2152SH2C3
-
9204692046-1291 BEARING, NEEDLEBEARING, NEEDLE
-
9204892048-1053 RACE, 30X38X15RACE, 30X38X15
-
9213992139-0036 BUSHING, GEAR, 6TH INBUSHING, GEAR, 6TH IN
-
92139A92139-0037 BUSHING, GEAR, 5TH IN AND 2ND OUTBUSHING, GEAR, 5TH IN AND 2ND OUT
-
92139B92139-0038 BUSHING, GEAR, LOW OUTBUSHING, GEAR, LOW OUT
-
92139C92139-0066 BUSHING, GEAR, 3RD AND 4TH OUTBUSHING, GEAR, 3RD AND 4TH OUT
-
9215292152-0153 COLLARCOLLAR
-
9220092200-0050 WASHER, 28.3X34.0X1.6WASHER, 28.3X34.0X1.6
-
92200A92200-0051 WASHER, 28.1X34.0X1.2WASHER, 28.1X34.0X1.2
-
92200B92200-0138 WASHERWASHER
-
92200C92200-1065 WASHERWASHER
-
9221092210-1098 NUT, SPROCKETNUT, SPROCKET
