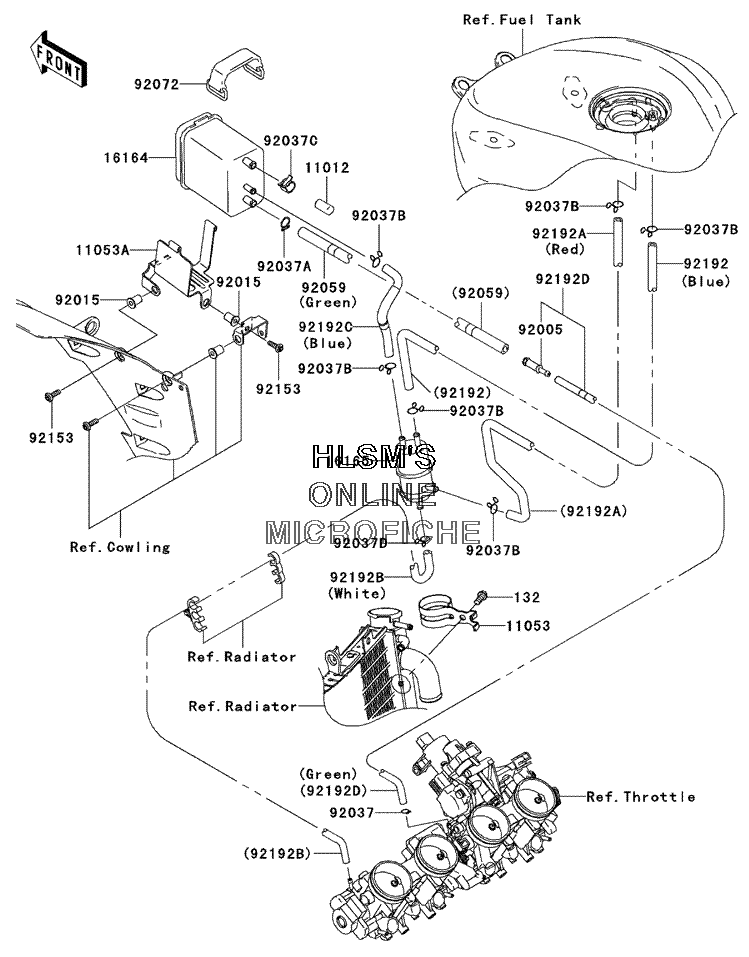

FUEL EVAPORATIVE SYSTEM для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
132132L0614 BOLT, FLANGED, SMALL (CALIF. ONLY)BOLT, FLANGED, SMALL (CALIF. ONLY)
-
1101211012-1388 CAP, CANISTER (CALIF. ONLY)CAP, CANISTER (CALIF. ONLY)
-
1105311053-0453 BRACKET, SEPARATOR (CALIF. ONLY)BRACKET, SEPARATOR (CALIF. ONLY)
-
11053A11053-0959 BRACKET, CANISTER (CALIF. ONLY)BRACKET, CANISTER (CALIF. ONLY)
-
1616416164-1001 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
9200592005-0032 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9201592015-1757 NUT, WELL, 5MM (CALIF. ONLY)NUT, WELL, 5MM (CALIF. ONLY)
-
9203792037-010 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037A92037-1104 CLAMP, HOSE (CALIF. ONLY)CLAMP, HOSE (CALIF. ONLY)
-
92037B92037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037C92037-1512 CLAMP, CANISTER (CALIF. ONLY)CLAMP, CANISTER (CALIF. ONLY)
-
92037D92037-1712 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9205992059-1642 TUBE, 7X12X200 (GREEN) (CALIF. ONLY)TUBE, 7X12X200 (GREEN) (CALIF. ONLY)
-
9207292072-1419 BAND, L=50 (CALIF. ONLY)BAND, L=50 (CALIF. ONLY)
-
9215392153-1244 BOLT, SOCKET, 5X16 (CALIF. ONLY)BOLT, SOCKET, 5X16 (CALIF. ONLY)
-
9219292192-0042 TUBE, FUEL TANK, SEPARATOR (BLUE) (CALIF. ONLY)TUBE, FUEL TANK, SEPARATOR (BLUE) (CALIF. ONLY)
-
92192A92192-0043 TUBE, SEPARATOR, FUEL TANK (RED) (CALIF. ONLY)TUBE, SEPARATOR, FUEL TANK (RED) (CALIF. ONLY)
-
92192B92192-0158 TUBE, THROTTLE, SEPARATOR (WHITE) (CALIF. ONLY)TUBE, THROTTLE, SEPARATOR (WHITE) (CALIF. ONLY)
-
92192C92192-0162 TUBE, SEPARATOR, CANISTER (BLUE) (CALIF. ONLY)TUBE, SEPARATOR, CANISTER (BLUE) (CALIF. ONLY)
-
92192D92192-0193 TUBE, CANISTER, THROTTLE (GREEN) (CALIF. ONLY)TUBE, CANISTER, THROTTLE (GREEN) (CALIF. ONLY)
