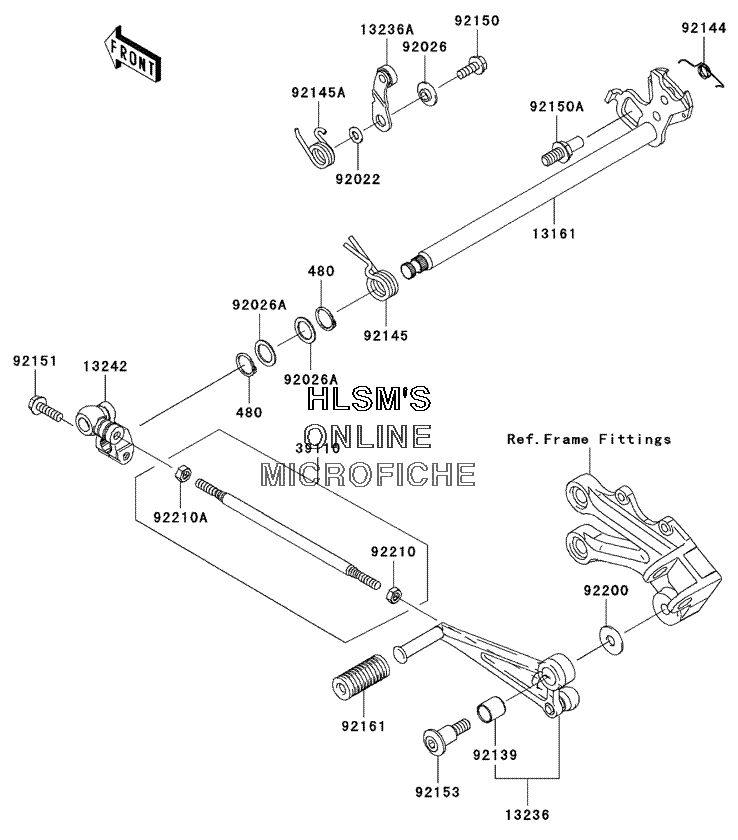

GEAR CHANGE MECHANISM для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
480480J1400 CIRCLIP, TYPE, C, 14MMCIRCLIP, TYPE, C, 14MM
-
1316113161-0028 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1323613236-0063 LEVER, COMP, CHANGE PEDALLEVER, COMP, CHANGE PEDAL
-
13236A13236-0084 LEVER, COMP, POSITIONLEVER, COMP, POSITION
-
1324213242-0016 LEVER, ASSY, CHANGELEVER, ASSY, CHANGE
-
3911039110-1131 ROD, ASSY, TIEROD, ASSY, TIE
-
9202292022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
92026A92026-1534 SPACER, 14X20X1.0SPACER, 14X20X1.0
-
9213992139-0023 BUSHINGBUSHING
-
9214492144-1029 SPRINGSPRING
-
9214592145-0287 SPRINGSPRING
-
92145A92145-0288 SPRINGSPRING
-
9215092150-1394 BOLT, 6X16BOLT, 6X16
-
92150A92150-1869 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9215192151-1226 BOLT, 6X20BOLT, 6X20
-
9215392153-0446 BOLT, 8X32BOLT, 8X32
-
9216192161-1300 DAMPER, CHANGE LEVERDAMPER, CHANGE LEVER
-
9220092200-0174 WASHER, 8.0X22.0X1.5WASHER, 8.0X22.0X1.5
-
9221092210-1100 NUT, 6MMNUT, 6MM
-
92210A92210-1101 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
