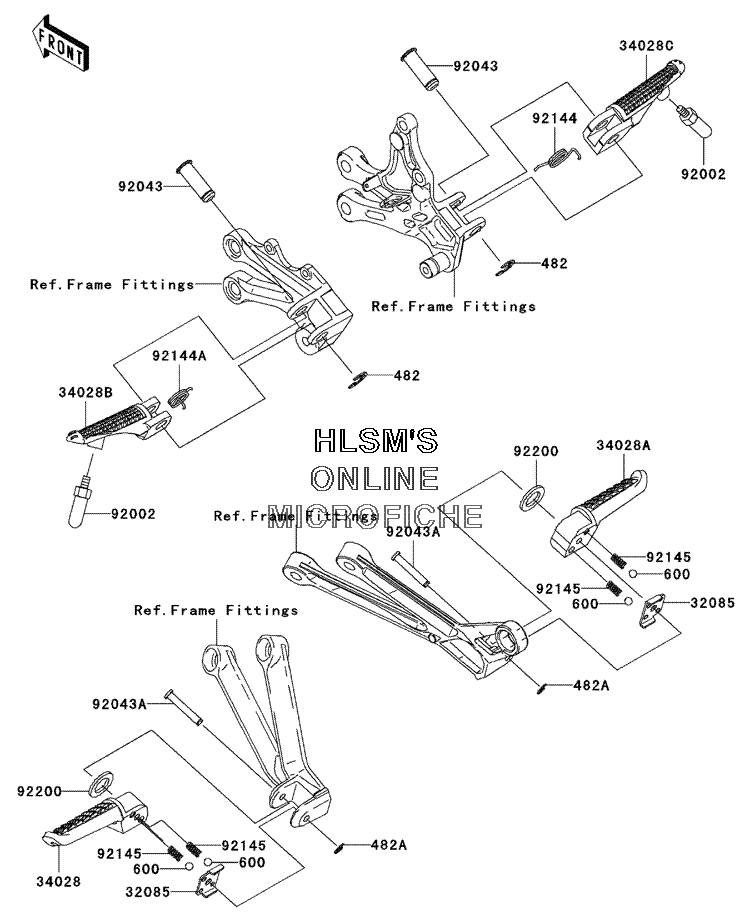

FOOTRESTS для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
482A482L5000 CIRCLIP, TYPE, E, 5MMCIRCLIP, TYPE, E, 5MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
3208532085-0047 STOPPER, REAR STEPSTOPPER, REAR STEP
-
3402834028-0004 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028A34028-0005 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
34028B34028-0012 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028C34028-0013 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
9200292002-1995 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9204392043-0028 PIN, 12X36.5PIN, 12X36.5
-
92043A92043-1595 PIN, 6X40PIN, 6X40
-
9214492144-1567 SPRING, STEP RETURNSPRING, STEP RETURN
-
92144A92144-1568 SPRING, STEP RETURNSPRING, STEP RETURN
-
9214592145-1319 SPRINGSPRING
-
9220092200-0043 WASHER, 16X26X2.3WASHER, 16X26X2.3
