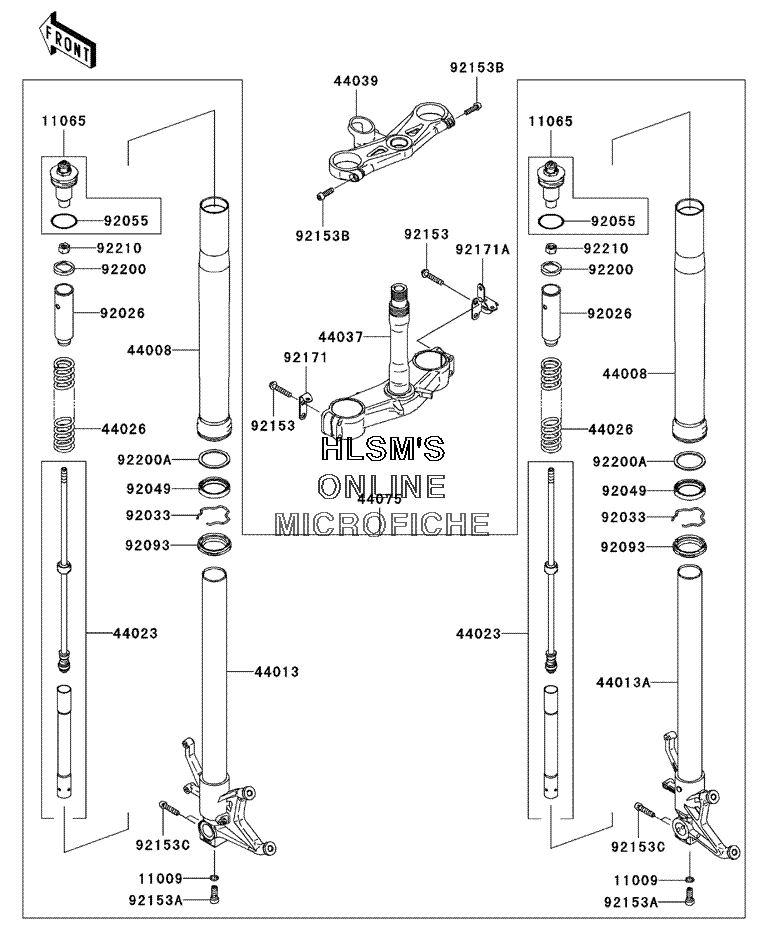

FRONT FORK для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
1100911009-1325 GASKET, PIPE, COMP, SUSPGASKET, PIPE, COMP, SUSP
-
1106511065-0038 CAPCAP
-
4400844008-0014 PIPE, FORK OUTERPIPE, FORK OUTER
-
4401344013-0005 PIPE, FORK INNER (LEFT)PIPE, FORK INNER (LEFT)
-
44013A44013-0006 PIPE, FORK INNER (RIGHT)PIPE, FORK INNER (RIGHT)
-
4402344023-0022 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-0062 SPRING, FRONT FORKSPRING, FRONT FORK
-
4403744037-0019 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-0005 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4407544075-0071 DAMPER, SET, FORKDAMPER, SET, FORK
-
9202692026-0045 SPACER, FORKSPACER, FORK
-
9203392033-1077 RING, SNAPRING, SNAP
-
9204992049-1522 SEAL, OIL, FORK OUTER TUBESEAL, OIL, FORK OUTER TUBE
-
9205592055-1333 O-RING, FORK, AIR TUBEO-RING, FORK, AIR TUBE
-
9209392093-1480 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215392153-0484 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92153A92153-0548 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
92153B92153-0768 BOLT, SOCKET, 8X27BOLT, SOCKET, 8X27
-
92153C92153-1228 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
-
9217192171-0247 CLAMP (LEFT)CLAMP (LEFT)
-
92171A92171-0396 CLAMP, HARNESS AND CABLECLAMP, HARNESS AND CABLE
-
9220092200-0085 WASHERWASHER
-
92200A92200-0204 WASHERWASHER
-
9221092210-0100 NUTNUT
