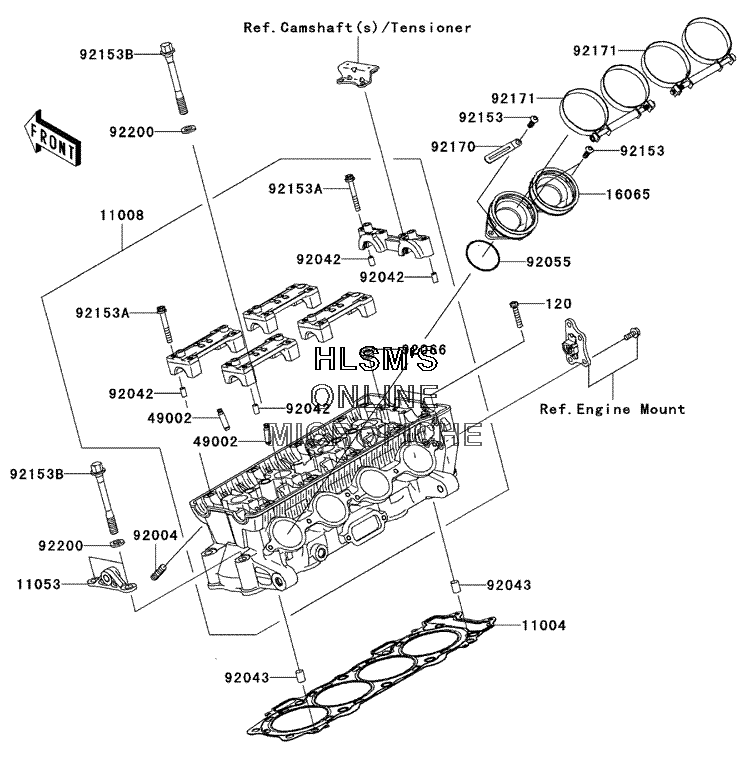

CYLINDER HEAD для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
120120Z0630 BOLT, SOCKETBOLT, SOCKET
-
1100411004-0032 GASKET, HEADGASKET, HEAD
-
1100811008-0041 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1105311053-0530 BRACKETBRACKET
-
1606516065-0016 HOLDER, CARBURETORHOLDER, CARBURETOR
-
4900249002-0009 GUIDE, VALVEGUIDE, VALVE
-
9200492004-1186 STUD, 8X18STUD, 8X18
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1506 PINPIN
-
9205592055-1401 O-RING, 43.7X1.9O-RING, 43.7X1.9
-
9206692066-0016 PLUG, 18X10PLUG, 18X10
-
9215392153-0454 BOLT, 6X18BOLT, 6X18
-
92153A92153-0656 BOLT, 6X45BOLT, 6X45
-
92153B92153-0893 BOLT, 10X90BOLT, 10X90
-
9217092170-1514 CLAMPCLAMP
-
9217192171-0278 CLAMPCLAMP
-
9220092200-0114 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
