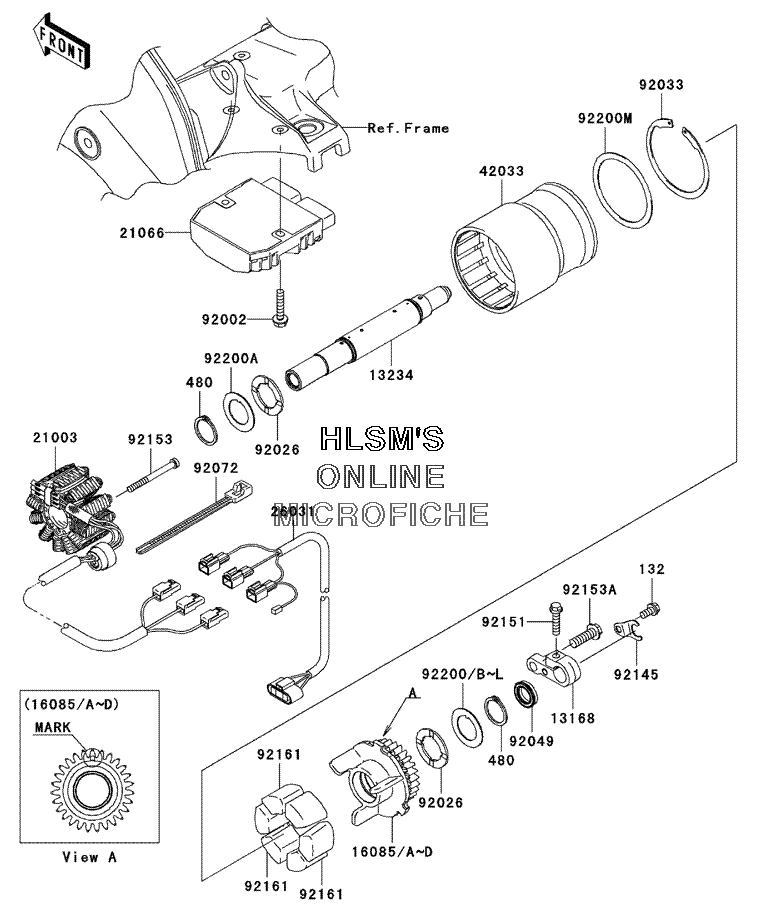

GENERATOR для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
132132L0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
480480J2400 CIRCLIP, TYPE, C, 24MMCIRCLIP, TYPE, C, 24MM
-
1316813168-0035 LEVERLEVER
-
1323413234-0023 SHAFT, COMPSHAFT, COMP
-
1608516085-0053 GEAR, "A" MARKGEAR, "A" MARK
-
16085A16085-0054 GEAR, "B" MARKGEAR, "B" MARK
-
16085B16085-0055 GEAR, NO MARKGEAR, NO MARK
-
16085C16085-0056 GEAR, "E" MARKGEAR, "E" MARK
-
16085D16085-0057 GEAR, "F" MARKGEAR, "F" MARK
-
2100321003-0019 STATORSTATOR
-
2106621066-0008 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2603126031-0271 HARNESSHARNESS
-
4203342033-0016 COUPLING, ASSYCOUPLING, ASSY
-
9200292002-1138 BOLT, 6X30BOLT, 6X30
-
9202692026-0071 SPACER, 24.3X38.0X2.0SPACER, 24.3X38.0X2.0
-
9203392033-0033 RING, SNAPRING, SNAP
-
9204992049-0043 SEAL, OILSEAL, OIL
-
9207292072-1293 BAND, L=140BAND, L=140
-
9214592145-0140 SPRINGSPRING
-
9215192151-1930 BOLT, FLANGED, M6X25BOLT, FLANGED, M6X25
-
9215392153-0450 BOLT, 5X55BOLT, 5X55
-
92153A92153-0758 BOLT, 8X25BOLT, 8X25
-
9216192161-0217 DAMPER, COUPLINGDAMPER, COUPLING
-
9220092200-0124 WASHER, 24.2X38X1.2WASHER, 24.2X38X1.2
-
92200A92200-0125 WASHER, 24.2X38X1.4WASHER, 24.2X38X1.4
-
92200B92200-0125 WASHER, 24.2X38X1.4WASHER, 24.2X38X1.4
-
92200C92200-0126 WASHER, 24.2X38X1.6WASHER, 24.2X38X1.6
-
92200D92200-0127 WASHER, 24.2X38X1.8WASHER, 24.2X38X1.8
-
92200E92200-0128 WASHER, 24.2X38X2.0WASHER, 24.2X38X2.0
-
92200F92200-0129 WASHER, 24.2X38X2.3WASHER, 24.2X38X2.3
-
92200G92200-0179 WASHER, 24.2X38.0X1.3WASHER, 24.2X38.0X1.3
-
92200H92200-0180 WASHER, 24.2X38.0X1.5WASHER, 24.2X38.0X1.5
-
92200I92200-0181 WASHER, 24.2X38.0X1.7WASHER, 24.2X38.0X1.7
-
92200J92200-0182 WASHER, 24.2X38.0X1.9WASHER, 24.2X38.0X1.9
-
92200K92200-0183 WASHER, 24.2X38.0X2.1WASHER, 24.2X38.0X2.1
-
92200L92200-0184 WASHER, 24.2X38.0X2.2WASHER, 24.2X38.0X2.2
-
92200M92200-0195 WASHER, 62.0X73.8X1.0WASHER, 62.0X73.8X1.0
