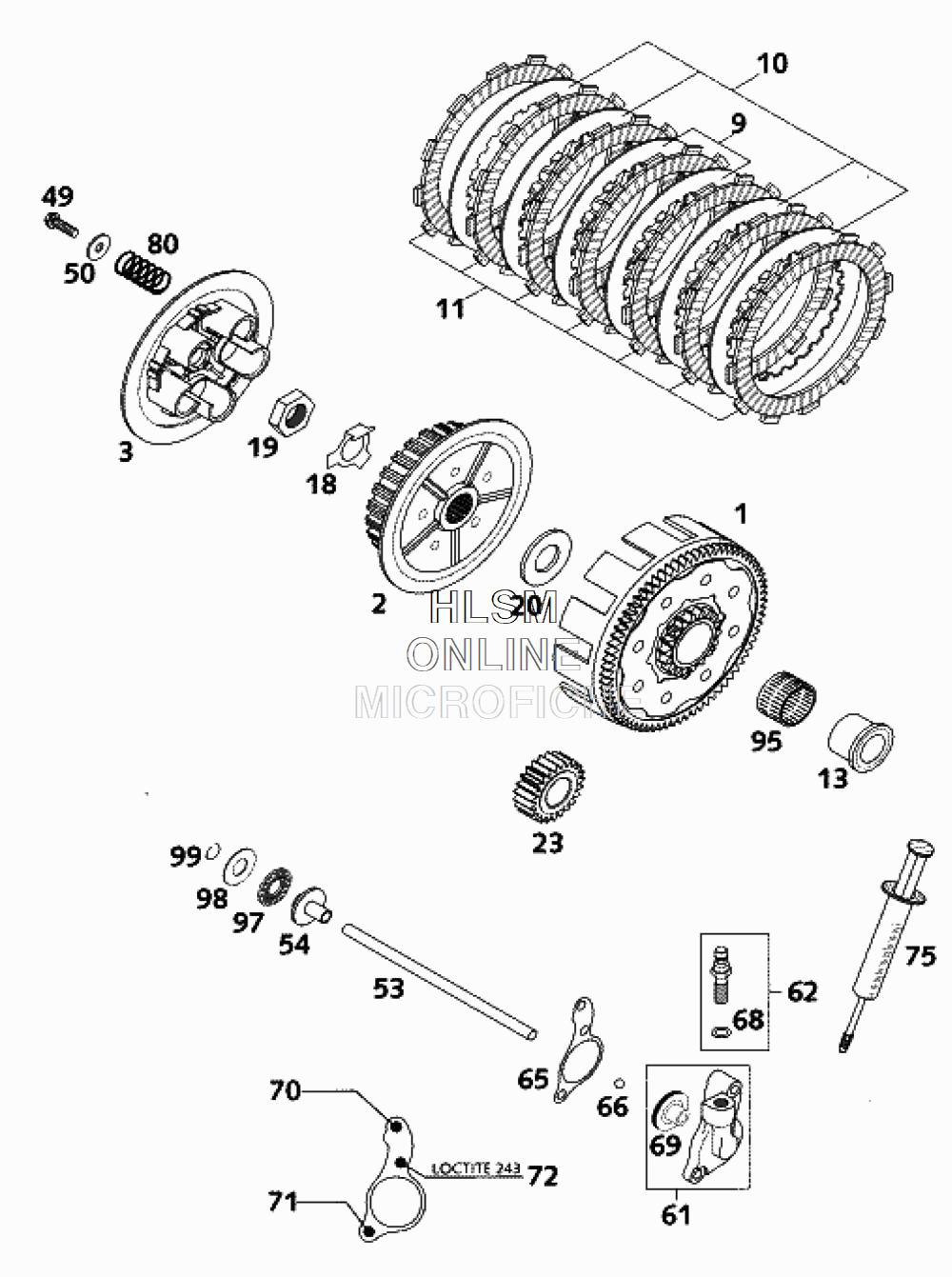

CLUTCH для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
150332000073 OUTER CLUTCH WITHOUT PRIMARY PINIONOUTER CLUTCH WITHOUT PRIMARY PINION
-
250332002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
350332003000 PRESSURE PLATEPRESSURE PLATE
-
950332010100 INTERMEDI. D/5C STEELINTERMEDI. D/5C STEEL
-
1050332010000 INTERMEDIATE DISC ALUINTERMEDIATE DISC ALU
-
1150332011000 ORGANIC DISK 3MMORGANIC DISK 3MM
-
1350332013000 INNER RING 20X26X25,9INNER RING 20X26X25,9
-
1850332018000 SHEET METAL LOCK 1.5MMSHEET METAL LOCK 1.5MM
-
190936181505 HEXAGON NUT DIN0936·M18X1,5 R.HEXAGON NUT DIN0936·M18X1,5 R.
-
2050332020000 STOP DISK 20X39,6X3STOP DISK 20X39,6X3
-
2350332023023 PRIMARY PINION 23·T 1251200'98PRIMARY PINION 23·T 1251200'98
-
490015060203 HH COLLAR SCREW M 6X20 WS;BHH COLLAR SCREW M 6X20 WS;B
-
5050232050000 WASHER 6,2 X 18 X 2WASHER 6,2 X 18 X 2
-
5350332017200 PUSH ROD LO179MM 1251200'98PUSH ROD LO179MM 1251200'98
-
5450332054051 PRESSURE PIECEPRESSURE PIECE
-
6150332061044 CYLINDER CPL.CYLINDER CPL.
-
6250332062000 HOLLOW SOIEW CPL M10X1 '98HOLLOW SOIEW CPL M10X1 '98
-
6550332065051 CLUTCH RELEASE GASKET 0.3MMCLUTCH RELEASE GASKET 0.3MM
-
6550332065052 CLUTCH RELEASE GASKET 0,5MMCLUTCH RELEASE GASKET 0,5MM
-
6550332065053 CLUTCH RELEASE GASKET 0,75MMCLUTCH RELEASE GASKET 0,75MM
-
660401070003 BALL DIN5401· 7BALL DIN5401· 7
-
6842013226000 CU·SEAL RING DIN7603-10X16X1CU·SEAL RING DIN7603-10X16X1
-
6950332066000 PISTON W/ O·RINGPISTON W/ O·RING
-
700015060403 HH COLLAR SCREW M 6X40 WS:SHH COLLAR SCREW M 6X40 WS:S
-
710015060203 HH COLLAR SCREW M 6X20 WS:SHH COLLAR SCREW M 6X20 WS:S
-
720015060253 HH COLLAR SCREW M 6X25 WS:SHH COLLAR SCREW M 6X25 WS:S
-
7550329050000 VENT INIEKTION HYDR. CLUTCHVENT INIEKTION HYDR. CLUTCH
-
8050332005000 CLUTCH SPRING 2,3X39.5CLUTCH SPRING 2,3X39.5
-
8052332005000 CLUTCH SPRING 2.4X40CLUTCH SPRING 2.4X40
-
9556532095000 NEEDLE BEARING K26X30X21ZW.KSENEEDLE BEARING K26X30X21ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING 1226 AXXAXIAL NEEDLE BEARING 1226 AXX
-
9854637098200 AXIAL WASHER AS122612X26X1AXIAL WASHER AS122612X26X1
-
9854637098300 AXIAL WASHER 12,5X25,8X1,5AXIAL WASHER 12,5X25,8X1,5
-
990993012000 CIRCL/P DIN7993A·RW12CIRCL/P DIN7993A·RW12
