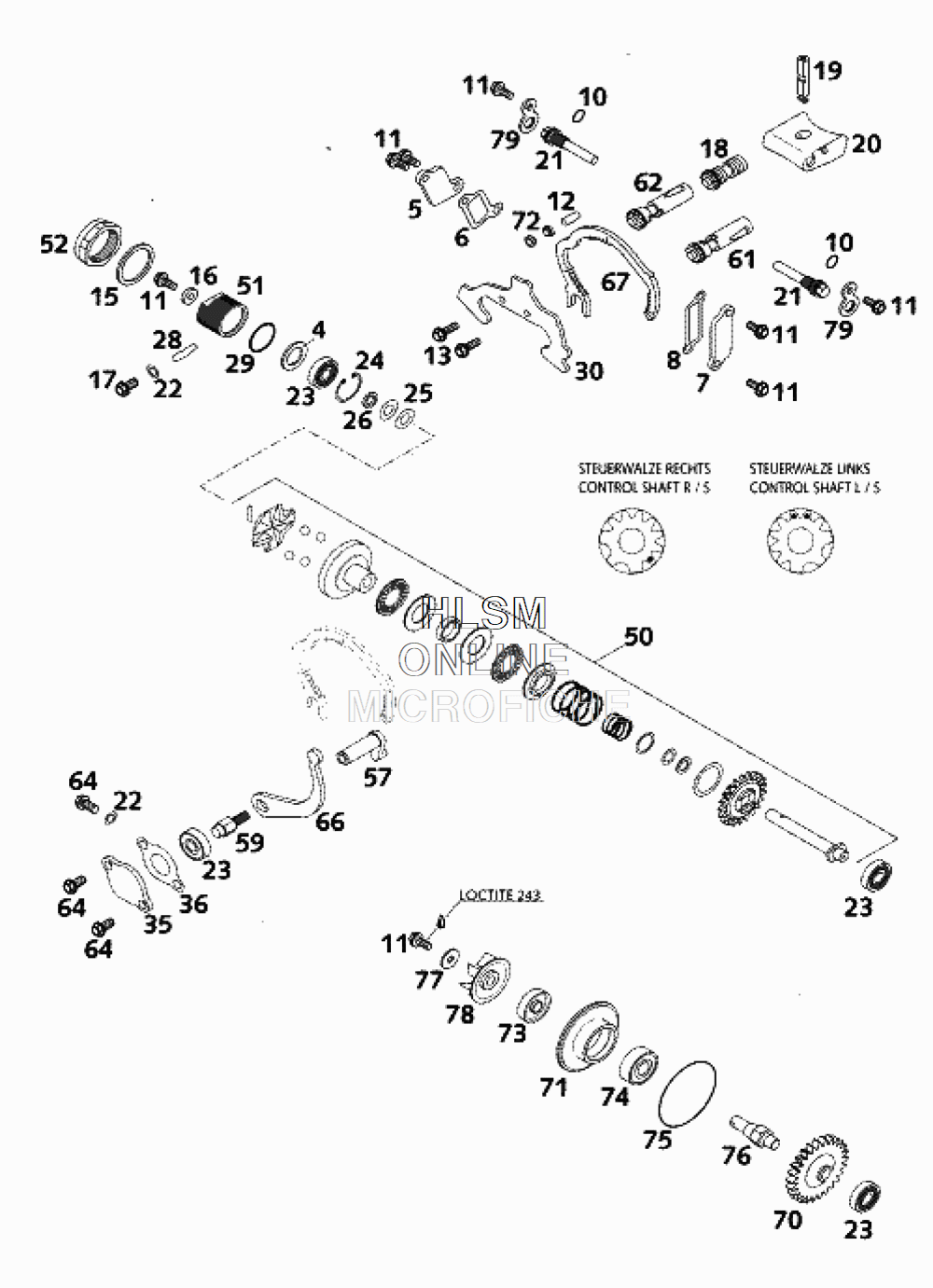

TWIN VALVE CONTROL для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
449033031015 STOP DISK 14,2X1X1.5STOP DISK 14,2X1X1.5
-
550337005000 SIDE COVER R/SSIDE COVER R/S
-
650337006000 GASKET SIDE COVER R/SGASKET SIDE COVER R/S
-
750337007000 SIDE COVER LISSIDE COVER LIS
-
850337008000 GASKET SIDE COVER L/SGASKET SIDE COVER L/S
-
10770008020 O -RING 8.00X2.00 NBRO -RING 8.00X2.00 NBR
-
1115050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
12402051600 NEEDLE ROL. DIN5402 NRB 5X15,8NEEDLE ROL. DIN5402 NRB 5X15,8
-
1315050163 HH COLLAR SCREW M 5X16 WS:8HH COLLAR SCREW M 5X16 WS:8
-
15603262322 CU·SEAL RING DIN7603-26.2X32X2CU·SEAL RING DIN7603-26.2X32X2
-
1650337050064 WASHER 5.2 X 12 X 3WASHER 5.2 X 12 X 3
-
1715060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
1850337018044 ECCENTRIC FOR CRANKBOLTECCENTRIC FOR CRANKBOLT
-
1950337019000 CRANK BOLT F. CONTROL FL.CRANK BOLT F. CONTROL FL.
-
2050337020000 CONTROL FLAPCONTROL FLAP
-
2150337021000 AXLE FOR CONTROL FLAP WS=8AXLE FOR CONTROL FLAP WS=8
-
220603061001 CU·SEAL RING DIN7603 6X10X1CU·SEAL RING DIN7603 6X10X1
-
230625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
240472022100 CIRCLIP DIN0472-L2X1CIRCLIP DIN0472-L2X1
-
250093821606 WASHER DIN2093 8.2X16X0,6WASHER DIN2093 8.2X16X0,6
-
2650337050063 SPACER BUSHING 8X12X2.3SPACER BUSHING 8X12X2.3
-
2800099300011 O·RING STRING 4MMO·RING STRING 4MM
-
290770160030 O·RING 16,00X3.00 NBR 70O·RING 16,00X3.00 NBR 70
-
3050337030000 SHEET METAL GUIDE 3MMSHEET METAL GUIDE 3MM
-
3550337035000 CLOSING COVERCLOSING COVER
-
3650337035050 CLOSING COVER GASKET 1MMCLOSING COVER GASKET 1MM
-
5050337050044 CENTRIFUGAL TIMER CPL.CENTRIFUGAL TIMER CPL.
-
5150337050062 BEARING HOLDER M26X1BEARING HOLDER M26X1
-
5250337050061 CLOSING NUT M26X1 WS=30CLOSING NUT M26X1 WS=30
-
5750337057000 CONTROL LEVERCONTROL LEVER
-
5950337059000 CONTROL SHAFT M6 WS=10CONTROL SHAFT M6 WS=10
-
6150337061144 CONTROL SHAFT CPL L/SCONTROL SHAFT CPL L/S
-
6250337062144 CONTROL SHAFT CPL.R/SCONTROL SHAFT CPL.R/S
-
640015060123 HH COLLAR SCREW M 6X12 WS=SHH COLLAR SCREW M 6X12 WS=S
-
6650337066000 LEVER F. CONTROL SEGMENTLEVER F. CONTROL SEGMENT
-
6750337067000 CONTROL SHAFT SEGMENTCONTROL SHAFT SEGMENT
-
7050335054026 DRIVE WHEEL 26 TDRIVE WHEEL 26 T
-
7150335056000 BEARING SUPPORT WATER PUMPBEARING SUPPORT WATER PUMP
-
7250337072000 ROLLER GUIDE 5X6.1X8X4ROLLER GUIDE 5X6.1X8X4
-
730760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
740625060001 BALL BEARING 6000BALL BEARING 6000
-
750770049025 O·RING 49,00X2,50 NBRO·RING 49,00X2,50 NBR
-
7650335054050 WATER PUMP SHAFTWATER PUMP SHAFT
-
770349000050 WASHER DIN7349- 5X15X2WASHER DIN7349- 5X15X2
-
7854635005000 WATER PUMP WHEELWATER PUMP WHEEL
-
7950337079000 LOCK METAL SHEET 2MMLOCK METAL SHEET 2MM
