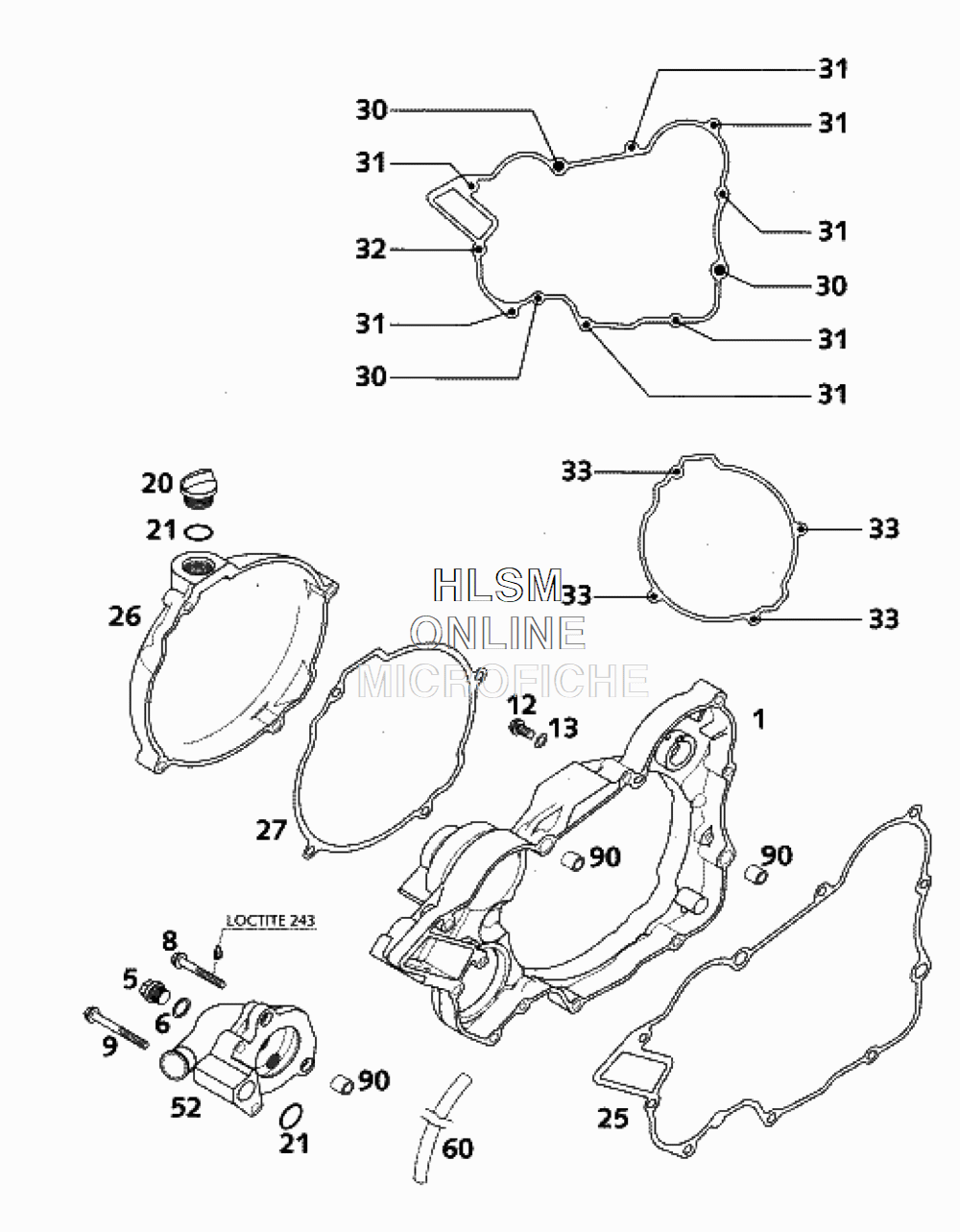

CLUTCH COVER для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
15033000104498 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
50910100003 PLUGPLUG
-
642013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
80015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
90015060503 HH COLLAR SCREW M 6X50HH COLLAR SCREW M 6X50
-
120015060123 HH COLLAR SCREW M 6X12HH COLLAR SCREW M 6X12
-
130603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
2058030020000 PLUG M 24 X 3PLUG M 24 X 3
-
210770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
2550330025000 CLUTCH COVER GASKET O,SMMCLUTCH COVER GASKET O,SMM
-
2650330026000198 CLUTCH OUTS. COVERCLUTCH OUTS. COVER
-
2750330027000 CLUTCH OUTS.COVER GASKETCLUTCH OUTS.COVER GASKET
-
300015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
310015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
320015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
330015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
5250335052000 WATER PUMP COVERWATER PUMP COVER
-
6050332095001 TUBE VINNYLAN 6X8,2 BU.CKTUBE VINNYLAN 6X8,2 BU.CK
-
9049030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
