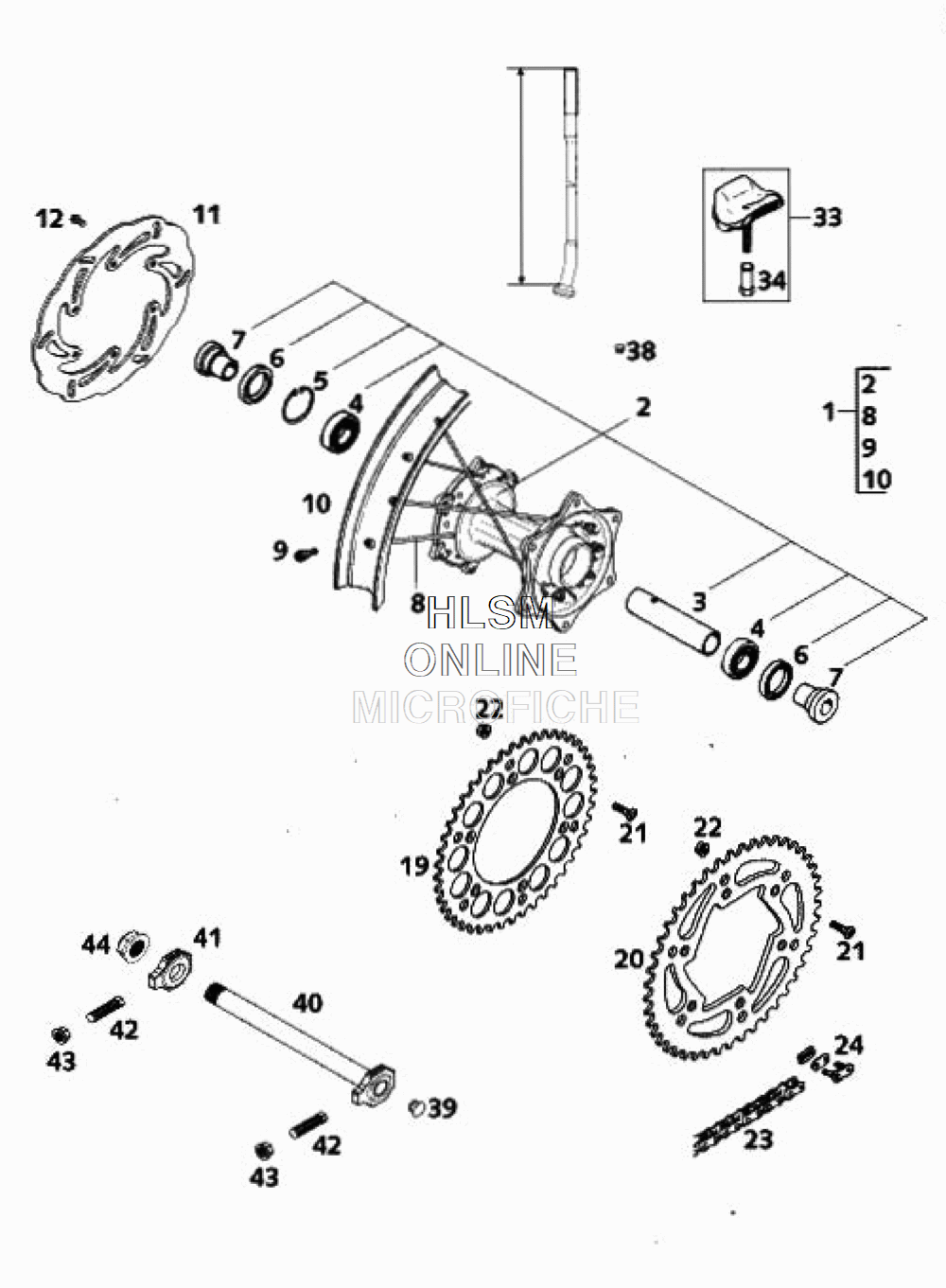

REAR WHEEL для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
150310JJ01144 REAR WHEELREAR WHEEL
-
250310010044 REARWHEEL HUB CPLREARWHEEL HUB CPL
-
356510011000 BEARING SPACER TUBE 121,5MMBEARING SPACER TUBE 121,5MM
-
40625060058 GROOVED BALL BEALL..GROOVED BALL BEALL..
-
40472047175 CIRCL/P O/N0472CIRCL/P O/N0472
-
50760324N1 SHAFT SEAL RING 12X47X7 BSLSHAFT SEAL RING 12X47X7 BSL
-
654610016000 BUSHING FOR HUBBUSHING FOR HUB
-
850310071207 SPOKE M5X207-10G 19" DDESPOKE M5X207-10G 19" DDE
-
958309072000 STEEL NIPPLE MS CHROME PLATEDSTEEL NIPPLE MS CHROME PLATED
-
1054610070100 REAR RIM 2,15X19" EXCEL AL4REAR RIM 2,15X19" EXCEL AL4
-
1150310060000 BRAKE DISC REAR D=220MM 2000BRAKE DISC REAR D=220MM 2000
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1958310051038 REAR SPROCKET 38· TREAR SPROCKET 38· T
-
1958310151040 REAR SPROCKET 40· TREAR SPROCKET 40· T
-
1958310051042 REAR SPROCKET 42· TREAR SPROCKET 42· T
-
1958310151045 REAR SPROCKET 45· TREAR SPROCKET 45· T
-
2058310151048 REAR SPROCKET 48· TREAR SPROCKET 48· T
-
2058310151050 REAR SPROCKET 50· TREAR SPROCKET 50· T
-
2058310151052 REAR SPROCKET 52· TREAR SPROCKET 52· T
-
2154310086200 SPROCKET SCREW·AH M8X26 10.9SPROCKET SCREW·AH M8X26 10.9
-
2350010065000 CHAIN 5/8X1/4"CHAIN 5/8X1/4"
-
2350010065100 X-RING CHAIN 5/8X1/4" DIDX-RING CHAIN 5/8X1/4" DID
-
2450010066000 MASTER LINK 5/8X1/4"MASTER LINK 5/8X1/4"
-
2450010066100 MASTER LINK 5/8X1/4" X-RINGMASTER LINK 5/8X1/4" X-RING
-
3354010100100 RIM LOCK VM3 (2.15")RIM LOCK VM3 (2.15")
-
3450310090050 NUT WHEEL HOWERNUT WHEEL HOWER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL 16COVERING CAP SFL 16
-
4050310085044 AXLE REAR CPL. 265MMAXLE REAR CPL. 265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040000 SPECIAL SCREW M10X1.25SPECIAL SCREW M10X1.25
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1. 5HEXAGON NUT M20X1. 5
