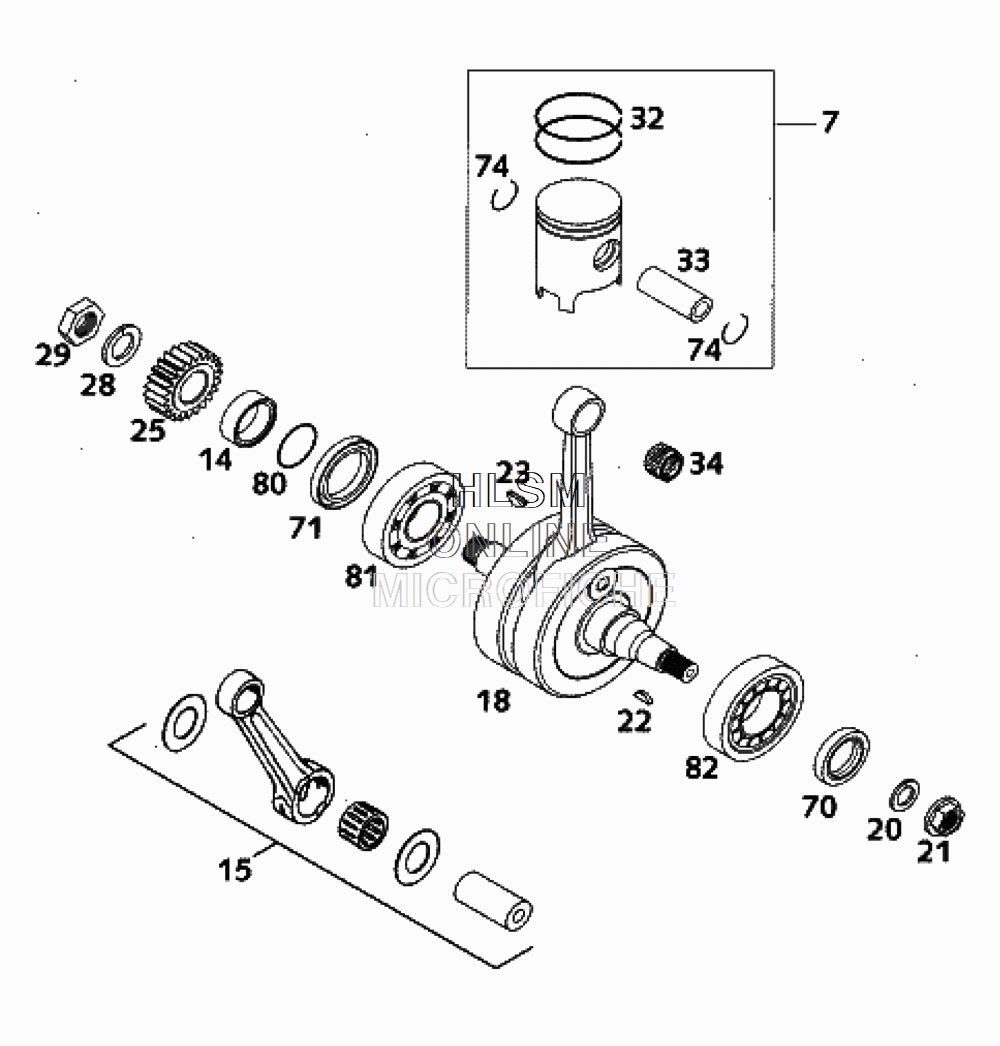

CRANKSHAFT PISTON для Ktm 125 SX - 2001 года выпуска

№

Артикул

Название
7

50330007500/1 PISTON I CPL. 54MM ONE RING, CAST

PISTON I CPL. 54MM ONE RING, CAST

0 ₽
7

50330007500/11 PISTON II CPL. 54MM

PISTON II CPL. 54MM

0 ₽
7

50330007400/1 PISTON I CPL. 54MM

PISTON I CPL. 54MM

0 ₽
7

50330007400/11 PISTON II CPL.54MM

PISTON II CPL.54MM

0 ₽
14

54633014100 SPACER BUSHING 12

SPACER BUSHING 12

5 140 ₽
15

50330015000 CON. ROD REPAIR KIT

CON. ROD REPAIR KIT

99 500 ₽
18

50330018200 CRANKSHAFT

CRANKSHAFT

146 170 ₽
20

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
21

49030021000 COLLAR NUT M12X1

COLLAR NUT M12X1

2 660 ₽
22

0888030050 WOODRUFF KEY

WOODRUFF KEY

290 ₽
23

6946005 WOODRUFF KEY 5X6, 5 HARD

WOODRUFF KEY 5X6, 5 HARD

290 ₽
25

50332023023 PRIMARY PINION 23 ·T

PRIMARY PINION 23 ·T

22 170 ₽
28

50230029016 LOCKING RING VSK 16

LOCKING RING VSK 16

350 ₽
29

50330029000 HEXAGON NUT M 16 X 1,5

HEXAGON NUT M 16 X 1,5

1 870 ₽
32

50330032500 SQUARE RING 54X1

SQUARE RING 54X1

11 620 ₽
33

50330033500 PISTON PIN 15X45,2

PISTON PIN 15X45,2

4 760 ₽
34

51030034000 NEEDLE BEARING K15 X 19 X 20

NEEDLE BEARING K15 X 19 X 20

6 750 ₽
34

52330034000 NEEDLE BEARING KV16X20X20

NEEDLE BEARING KV16X20X20

3 660 ₽
70

760253570 SHAFT SEAL RING 25X35X7 BTSL

SHAFT SEAL RING 25X35X7 BTSL

0 ₽
71

760324564 SHAFT SEAL RING 32X45X6,5 BT

SHAFT SEAL RING 32X45X6,5 BT

0 ₽
74

50330074500 WIRE LOCK RING 15X1

WIRE LOCK RING 15X1

270 ₽
74

52330074000 WIRE LOCK RING C15X1,2

WIRE LOCK RING C15X1,2

790 ₽
80

770250020 O·RING 25,00X2,00 NBR 70

O·RING 25,00X2,00 NBR 70

0 ₽
81

625063054 BALL BEARING NSK 6305 C4F

BALL BEARING NSK 6305 C4F

0 ₽
82

50330082000 CYL.ROLLER BEARING 206 ET2XCS45

CYL.ROLLER BEARING 206 ET2XCS45

22 490 ₽
