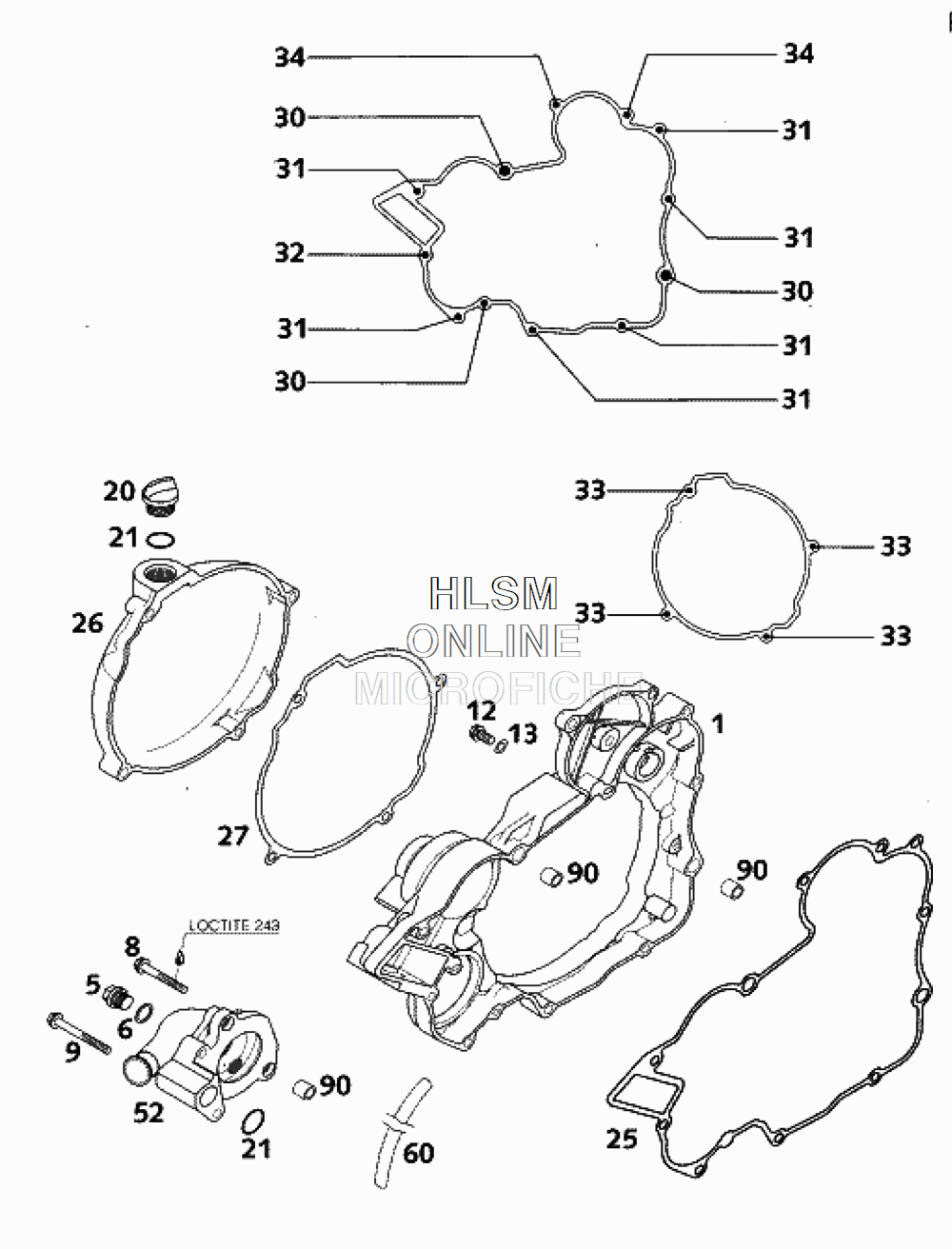

CLUTCH COVER WITH OIL PUMP для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
152330101044/98 CLUTCH COVER CPL.. OILPUMPCLUTCH COVER CPL.. OILPUMP
-
50910100003 PLUG DIN0910.M10X1PLUG DIN0910.M10X1
-
642013226000 CU-SEAL RING OIN7603-10X16X1CU-SEAL RING OIN7603-10X16X1
-
80015060353 HH COLLAR SCREW M 6X3S W5=8HH COLLAR SCREW M 6X3S W5=8
-
90015060503 HH COLLAR SCREW M 6X50 WS:8HH COLLAR SCREW M 6X50 WS:8
-
120015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
130603061001 CU·SEAL RING DIN7603- 6X10X1CU·SEAL RING DIN7603- 6X10X1
-
2058030020000 PLUGM24XJPLUGM24XJ
-
210770160030 0-RJNG 16.00X3,00 NBR 700-RJNG 16.00X3,00 NBR 70
-
2550330125000 CLUTCH COVER GASKET 5MM FOR OIL PUMPCLUTCH COVER GASKET 5MM FOR OIL PUMP
-
2650330026000/98 CLUTCH QUTS.COVERCLUTCH QUTS.COVER
-
2750330027000 CLUTCH OUTS.COVER GASKET 1MK1CLUTCH OUTS.COVER GASKET 1MK1
-
300015060403 HH COLLAR SCREW M 6X40HH COLLAR SCREW M 6X40
-
310015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
320015060553 HH COLLAR SCREW M 6X55HH COLLAR SCREW M 6X55
-
330015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
340015060653 HH COLLAR SCREW M 6X65HH COLLAR SCREW M 6X65
-
5250335052000 WATER PUMP COVERWATER PUMP COVER
-
6050332095001 TUBE VINNYLIIN 6X8.2 BLACKTUBE VINNYLIIN 6X8.2 BLACK
-
9049030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
