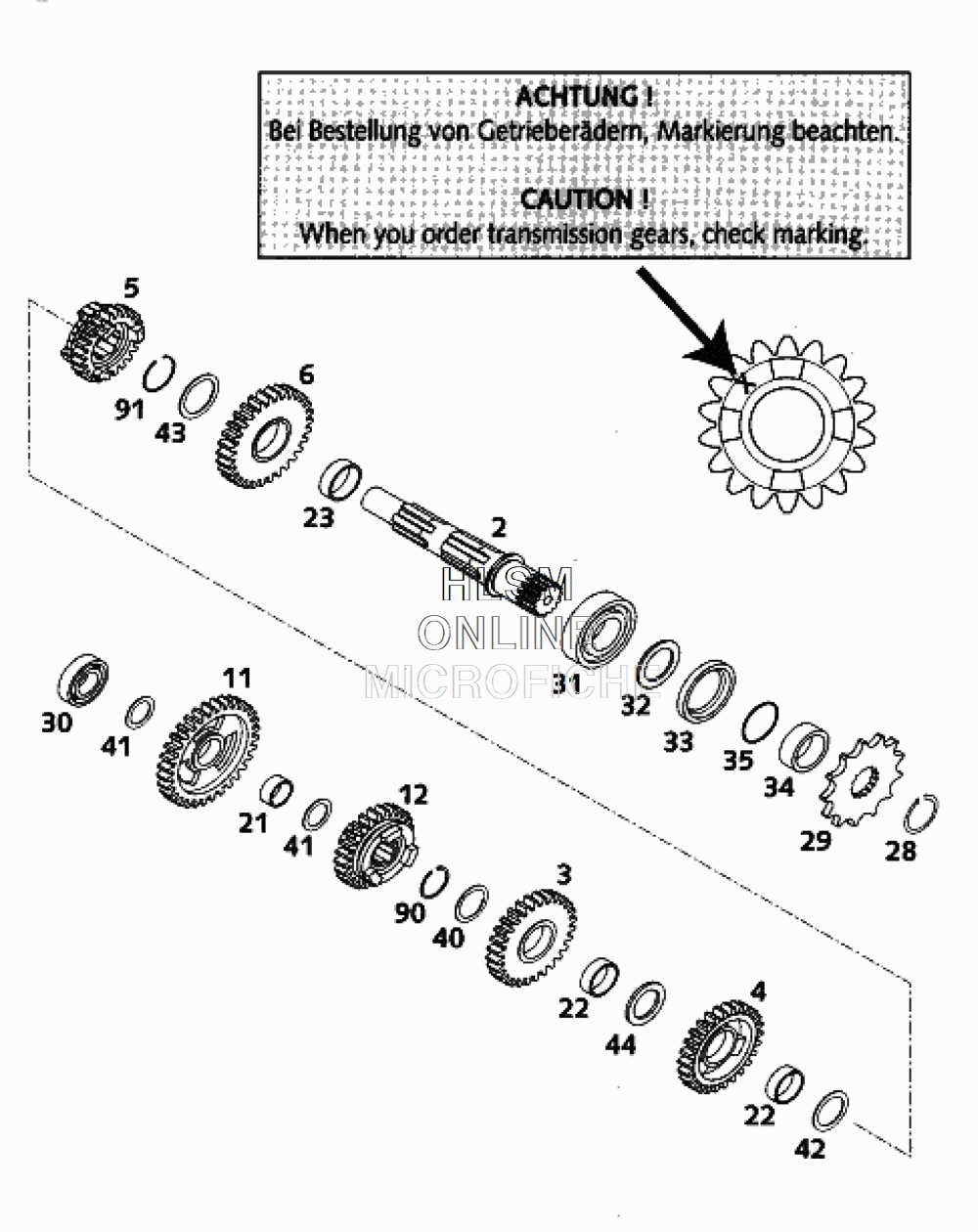

TRANSMISSION - COUNTER SHAFT для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
250333002000 COUNTER SHAFTCOUNTER SHAFT
-
350333003000 IDLE G.3RD G.28-T 3S28"IDLE G.3RD G.28-T 3S28"
-
450333004000 IDLE G.4TH G.26-T 4S26IDLE G.4TH G.26-T 4S26
-
550333005000 SLIDING G.6TH G.24-T 6S24SLIDING G.6TH G.24-T 6S24
-
550333005100 SLIDING G.6TH G.20-T 6G20SLIDING G.6TH G.20-T 6G20
-
550333005200 SLIDING G.6TH G.23-T 6S23SLIDING G.6TH G.23-T 6S23
-
550333005300 SLIDING G. 6TH G.20-T 6E20'SLIDING G. 6TH G.20-T 6E20'
-
650333006000 IDLER G. 2ND G. 30-T 2S30IDLER G. 2ND G. 30-T 2S30
-
650333006100 IDLER G. 2ND G. 31-T 2G31IDLER G. 2ND G. 31-T 2G31
-
1150333011000 IDLER G.1ST G. 32-T 1S32IDLER G.1ST G. 32-T 1S32
-
1150333011300 IDLER G. 1ST G. 33-T 1G33IDLER G. 1ST G. 33-T 1G33
-
1250333012000 SLIDING G.5TH G.25-T 5S25SLIDING G.5TH G.25-T 5S25
-
1252333012000 SLIDING G.5TH G.19-T 5G19SLIDING G.5TH G.19-T 5G19
-
2150333021000 IDLER GEAR BUSHING 17X20X9,7 BIDLER GEAR BUSHING 17X20X9,7 B
-
2250333022000 IDLER GEAR BUSHING 22X25X8,1 CIDLER GEAR BUSHING 22X25X8,1 C
-
23503L3023000 IDLER GEAR BUSHING 15X28X9.7 DIDLER GEAR BUSHING 15X28X9.7 D
-
2852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
2950033029013 SPROCKET 13-TSPROCKET 13-T
-
2950033029014 SPROCKET 14-TSPROCKET 14-T
-
2950033029015 SPROCKET 15-TSPROCKET 15-T
-
300625060031 BALL BEARING 6003 TN9BALL BEARING 6003 TN9
-
310625062058 BALL BEARING 6205 TN9BALL BEARING 6205 TN9
-
3256033020000 STOP RINGSTOP RING
-
330760324565 SHAFT SEAL RING 32X45X6,5SHAFT SEAL RING 32X45X6,5
-
3454633014100 SPACER BUSHING 12 MMSPACER BUSHING 12 MM
-
350770230020 O·RING 23,00X2,00 NBRLOO·RING 23,00X2,00 NBRLO
-
4050333040000 STOP DISC 21.2X27,8X1 ASTOP DISC 21.2X27,8X1 A
-
4150333041000 STOP DISC 17,2X26X1 8STOP DISC 17,2X26X1 8
-
4250333042000 STOP DISC 22.2X28X1 CSTOP DISC 22.2X28X1 C
-
4350333043000 STOP DISC 25.2X32X1STOP DISC 25.2X32X1
-
4450333044000 STOP DISC 22,2X30X2,5STOP DISC 22,2X30X2,5
-
9050133090000 LOCK RING 22X1.2LOCK RING 22X1.2
-
4152033090100 LOCK RING 25X1.2LOCK RING 25X1.2
