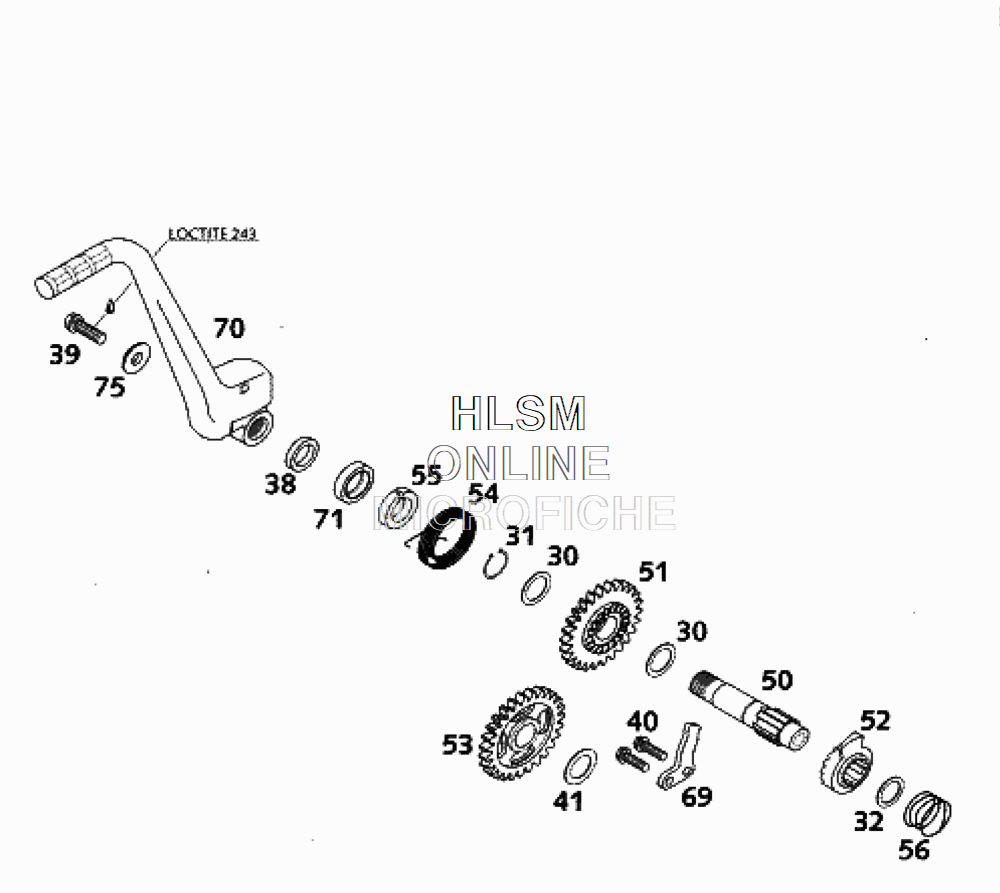

KICKSTARTER для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
3050333030000 STOP DISK 17,2 X 24 X 1STOP DISK 17,2 X 24 X 1
-
310471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
320988162210 THRUST WASHER DIN0988-16X22X1THRUST WASHER DIN0988-16X22X1
-
3850333038100 SPACER BUSHING 16X23X26X6,1SPACER BUSHING 16X23X26X6,1
-
390015080203 HH COLLAR SCREW M 8X20 WS:10HH COLLAR SCREW M 8X20 WS:10
-
400015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
5050333050000 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
5150333051026 KICKSTART.GEAR 26-TKICKSTART.GEAR 26-T
-
5250333052000 KICKSTARTER RATCHETKICKSTARTER RATCHET
-
5350333053027 INTERMEDIATE GEAR 27·TINTERMEDIATE GEAR 27·T
-
5450333054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
5550333055000 DRIVING HUBDRIVING HUB
-
5650333056000 SPRING 1,4MMSPRING 1,4MM
-
6950333069000 STOP MET.SHEET 4MMSTOP MET.SHEET 4MM
-
7050333070044 KICKSTARTER CPL.KICKSTARTER CPL.
-
710760172870 SHAFT SEAL RING 17X28X7SHAFT SEAL RING 17X28X7
-
7550333075000 WASHER 8,2X22X4,5WASHER 8,2X22X4,5
