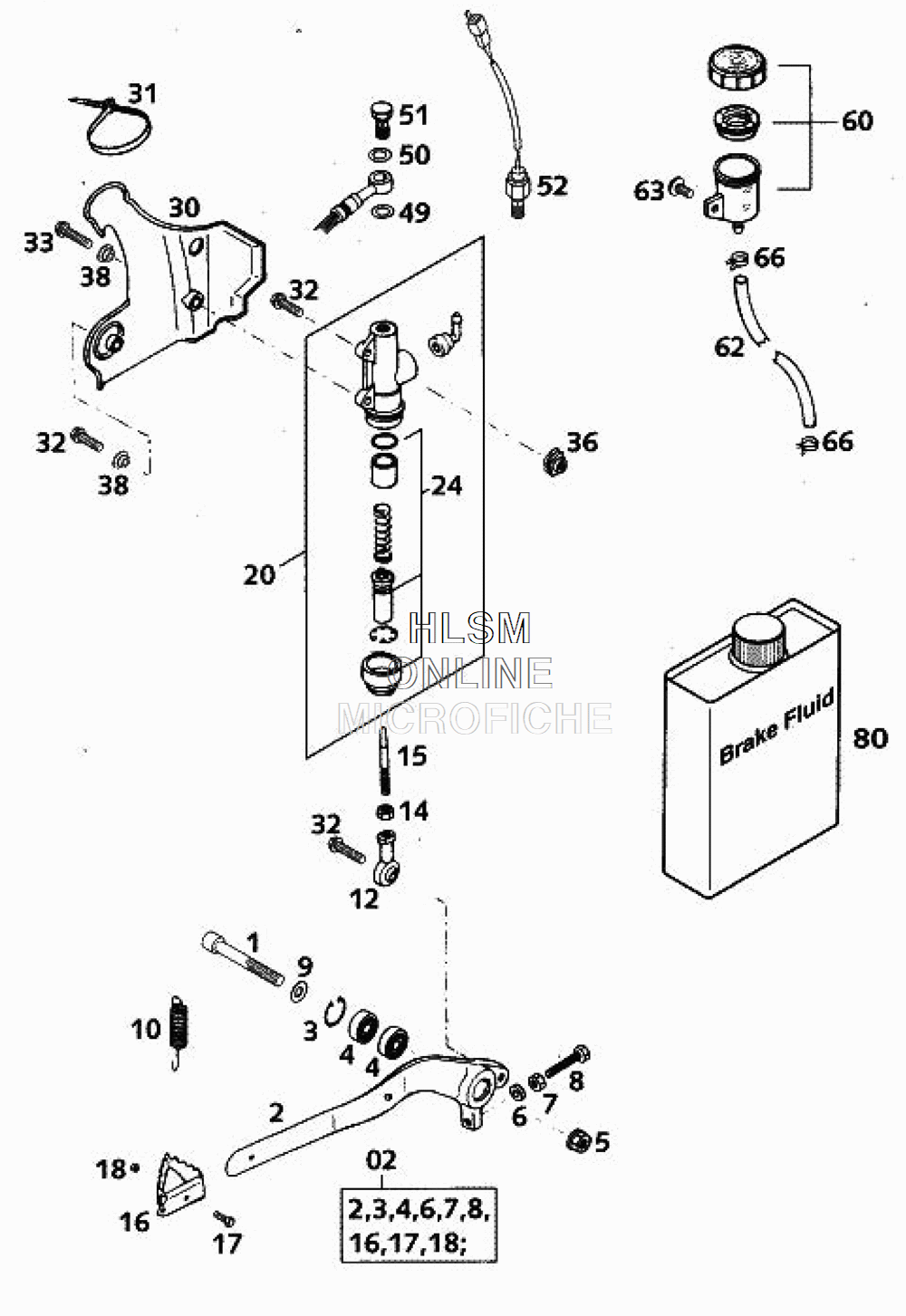

REAR BRAKE CONTROL для Ktm 125 SX - 2001 года выпуска
-
№АртикулНазвание
-
10912080603 AH SCREW DIN0912-M 8X60AH SCREW DIN0912-M 8X60
-
254603060144 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
30472022100 CIRCLIP DIN0472-22X1CIRCLIP DIN0472-22X1
-
40625006087 GROOVED BALL BEAR.GROOVED BALL BEAR.
-
554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
654310086200 WASHER 6 X 12 X 3WASHER 6 X 12 X 3
-
70934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
80933060353 HH SCREW DIN0933-M 6X35HH SCREW DIN0933-M 6X35
-
90125080003 WASHER DIN0125-A 8.4WASHER DIN0125-A 8.4
-
1054603062000 RETURN 5PRINC F OR BRAKE LEVERRETURN 5PRINC F OR BRAKE LEVER
-
1254603069000 SWIVEL HEAD M6 FOOT BRAKELEVERSWIVEL HEAD M6 FOOT BRAKELEVER
-
140934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1554603068000 PRESSURE ROD AWPRESSURE ROD AW
-
1654603060150 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
170933050163 HH SCREW DIN0933-M 5X16HH SCREW DIN0933-M 5X16
-
180985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
2050313060100 FOOTBRAKECYL. 13MM NATUREFOOTBRAKECYL. 13MM NATURE
-
2454513150000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
3054613038100 BRAKECYL.PROTECT.BRAKECYL.PROTECT.
-
3144011076200 CABLE TIE 200MMCABLE TIE 200MM
-
320015060203 HH COLLAR SCREW M 6X20 W5=8HH COLLAR SCREW M 6X20 W5=8
-
330015060253 HH COLLAR SCREW M 6X25 W5=8HH COLLAR SCREW M 6X25 W5=8
-
3650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3850308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
4942013026000 CU-SEAL RING DIN7603 -10X16X1,5CU-SEAL RING DIN7603 -10X16X1,5
-
5042013226000 CU-SEAL RING DIN7603 -10X16X1CU-SEAL RING DIN7603 -10X16X1
-
5150213025000 HOLLOW SCREW M10X1 X19HOLLOW SCREW M10X1 X19
-
5250311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
6054513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
6258007016101 HOSE FOR RESERVOIR 6X15HOSE FOR RESERVOIR 6X15
-
630014060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
6658007017000 YDNAC CLAMP 10101 (10,4MM)YDNAC CLAMP 10101 (10,4MM)
-
80306054 BRAKEFLUID DOT 5.1BRAKEFLUID DOT 5.1
