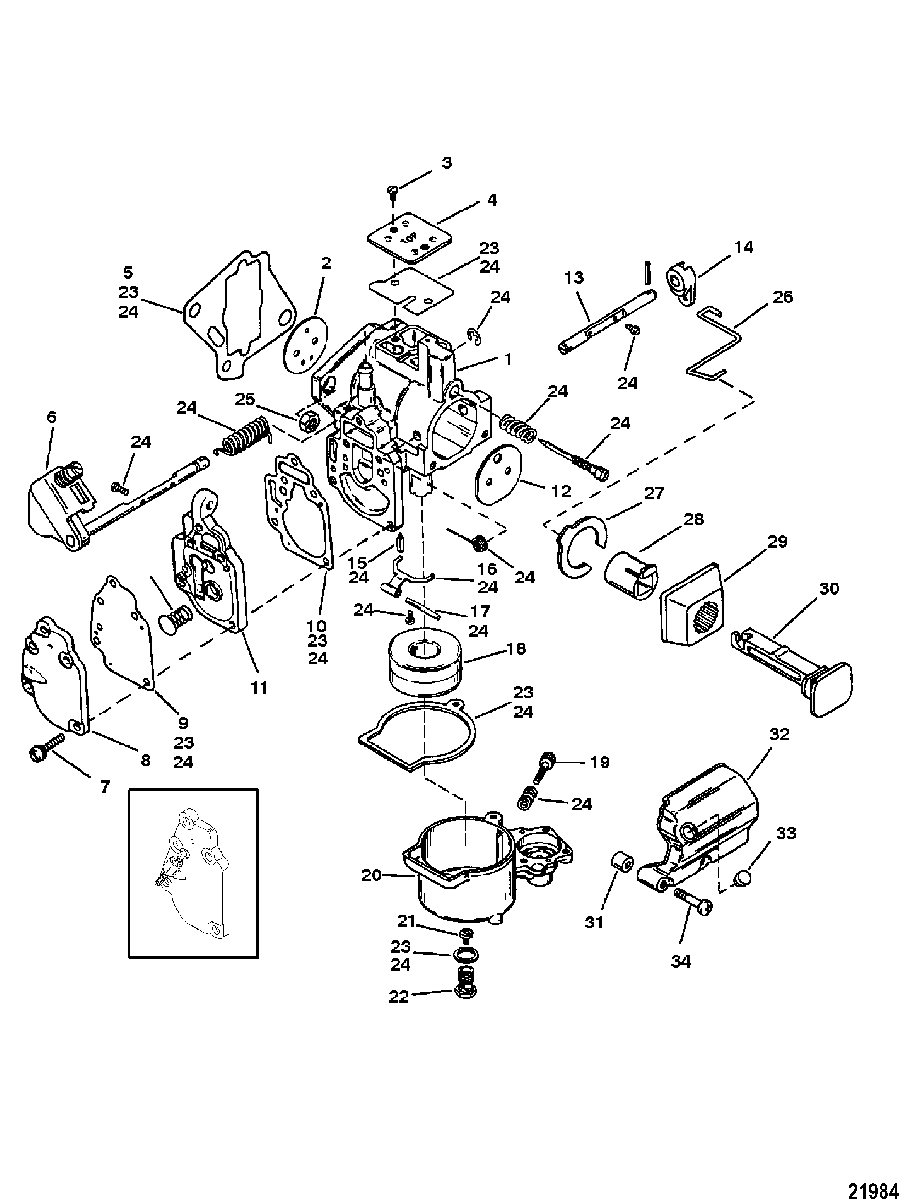

Carburetor для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
11392-823907A2 CARBURETOR
(WMC-38)CARBURETOR
(WMC-38) -
11392-823907A2 CARBURETOR
(WMC-38A)CARBURETOR
(WMC-38A) -
2815133 THROTTLE VALVETHROTTLE VALVE
-
31395-9696 SCREW, Cover PlateSCREW, Cover Plate
-
41395-9699 PLATE, CoverPLATE, Cover
-
527-192061 GASKET, CarburetorGASKET, Carburetor
-
6813022 THROTTLE SHAFTTHROTTLE SHAFT
-
71395-9643 SCREW, Fuel Pump CoverSCREW, Fuel Pump Cover
-
81395-9637 COVER, Fuel PumpCOVER, Fuel Pump
-
91395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
101395-9633 GASKETGASKET
-
111395-9702 BODY, Fuel PumpBODY, Fuel Pump
-
121395-811806 CHOKE VALVECHOKE VALVE
-
131395-8113541 CHOKE SHAFTCHOKE SHAFT
-
141395-811805 CHOKE LEVERCHOKE LEVER
-
151395-803861 VALVE, Inlet NeedleVALVE, Inlet Needle
-
161395-824401 FLOAT LEVERFLOAT LEVER
-
17F10064 SHAFT, FloatSHAFT, Float
-
181395-91691 FLOATFLOAT
-
191395-811360 SCREW, Bowl DrainSCREW, Bowl Drain
-
201395-811353 FUEL BOWLFUEL BOWL
-
2119266038 JET, Main Fuel (.038)JET, Main Fuel (.038)
-
221395-9171 PLUG, Jet RetainerPLUG, Jet Retainer
-
231395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
241395-8237072 REPAIR PARTS KITREPAIR PARTS KIT
-
2511-400213 NUT, (M8 - Stainless Steel), Carb StudNUT, (M8 - Stainless Steel), Carb Stud
-
26817425 LINK, ChokeLINK, Choke
-
2753-11278 CLIP, RetainingCLIP, Retaining
-
28817426 INSERT, Choke BezelINSERT, Choke Bezel
-
29172291 CHOKE BEZELCHOKE BEZEL
-
30817424 KNOB, ChokeKNOB, Choke
-
3141750T INSERTINSERT
-
32174421 COVER, CarburetorCOVER, Carburetor
-
3319-47579 PLUG, Carburetor CoverPLUG, Carburetor Cover
-
3410-40011110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
-27-41670A94 GASKET SETGASKET SET
-
-879731T97 POWERHEAD
SN# 0G202749 & BelowPOWERHEAD
SN# 0G202749 & Below -
-879731T97 POWERHEAD
SN# 0G202750 & UpPOWERHEAD
SN# 0G202750 & Up
