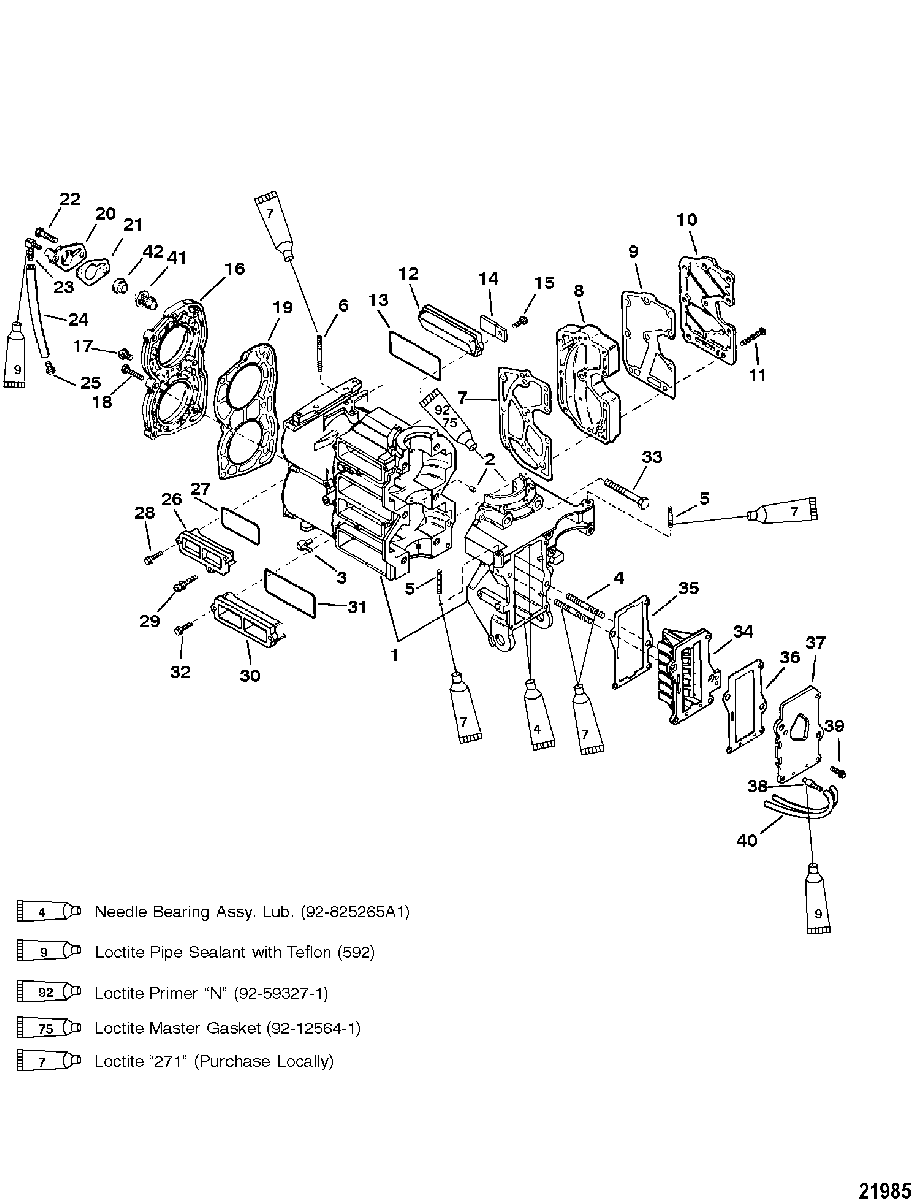

Cylinder Block and Covers для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
1872-9533T40 CYLINDER BLOCK/CRANKCASECYLINDER BLOCK/CRANKCASE
-
217-85171 PIN, DowelPIN, Dowel
-
322-15133 FITTING (45 Degrees)FITTING (45 Degrees)
-
416-429173 STUDSTUD
-
516-8161945 STUD, (M6 x 32)STUD, (M6 x 32)
-
616-8M0034424 STUD, (M6 x 50)STUD, (M6 x 50)
-
727-892158 GASKET, Exhaust ManifoldGASKET, Exhaust Manifold
-
892329F03 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
927-892157 GASKET, Exhaust Manifold CoverGASKET, Exhaust Manifold Cover
-
10923301 COVERCOVER
-
1110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
12144071 COVERCOVER
-
1325-822370 O-RINGO-RING
-
1454-825404 STRAPSTRAP
-
1510-82191916 SCREW, (M5 x 14) (Self-Threading)SCREW, (M5 x 14) (Self-Threading)
-
161028-8282A1 COVER ASSEMBLYCOVER ASSEMBLY
-
1722-390721 PLUG (BRASS)PLUG (BRASS)
-
1810-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
19863893 GASKETGASKET
-
20143171 COVERCOVER
-
2127-14318005 GASKETGASKET
-
2210-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
2322-996642 ELBOWELBOW
-
2432-8M0108355 FUEL LINE, (57.00 Inches Bulk), Tell Tale (Cut to 8 Inches)FUEL LINE, (57.00 Inches Bulk), Tell Tale (Cut to 8 Inches)
-
2522-94848 FITTINGFITTING
-
2614406 COVERCOVER
-
2725-86391 O-RINGO-RING
-
2810-82191916 SCREW, (M5 x 14) (Self-Threading)SCREW, (M5 x 14) (Self-Threading)
-
298235695 BALL, ThreadedBALL, Threaded
-
3014408 COVERCOVER
-
3125-822370 O-RINGO-RING
-
3210-82191916 SCREW, (M5 x 14) (Self-Threading)SCREW, (M5 x 14) (Self-Threading)
-
3310-40001209 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
3414112T REED BLOCKREED BLOCK
-
3527-414172 GASKETGASKET
-
3627-414181 GASKETGASKET
-
3741420A3 PLATE, Carb AdaptorPLATE, Carb Adaptor
-
3821-889781 CHECK VALVECHECK VALVE
-
3910-40011108 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
4032-99130100 HOSE (Cut to 13.25 Inches)HOSE (Cut to 13.25 Inches)
-
4114586 THERMOSTATTHERMOSTAT
-
4227-62386001 GASKET, ThermostatGASKET, Thermostat
-
-27-41670A94 GASKET SETGASKET SET
-
-879731T97 POWERHEAD
SN# 0G202749 & BelowPOWERHEAD
SN# 0G202749 & Below -
-879731T97 POWERHEAD
SN# 0G202750 & UpPOWERHEAD
SN# 0G202750 & Up
