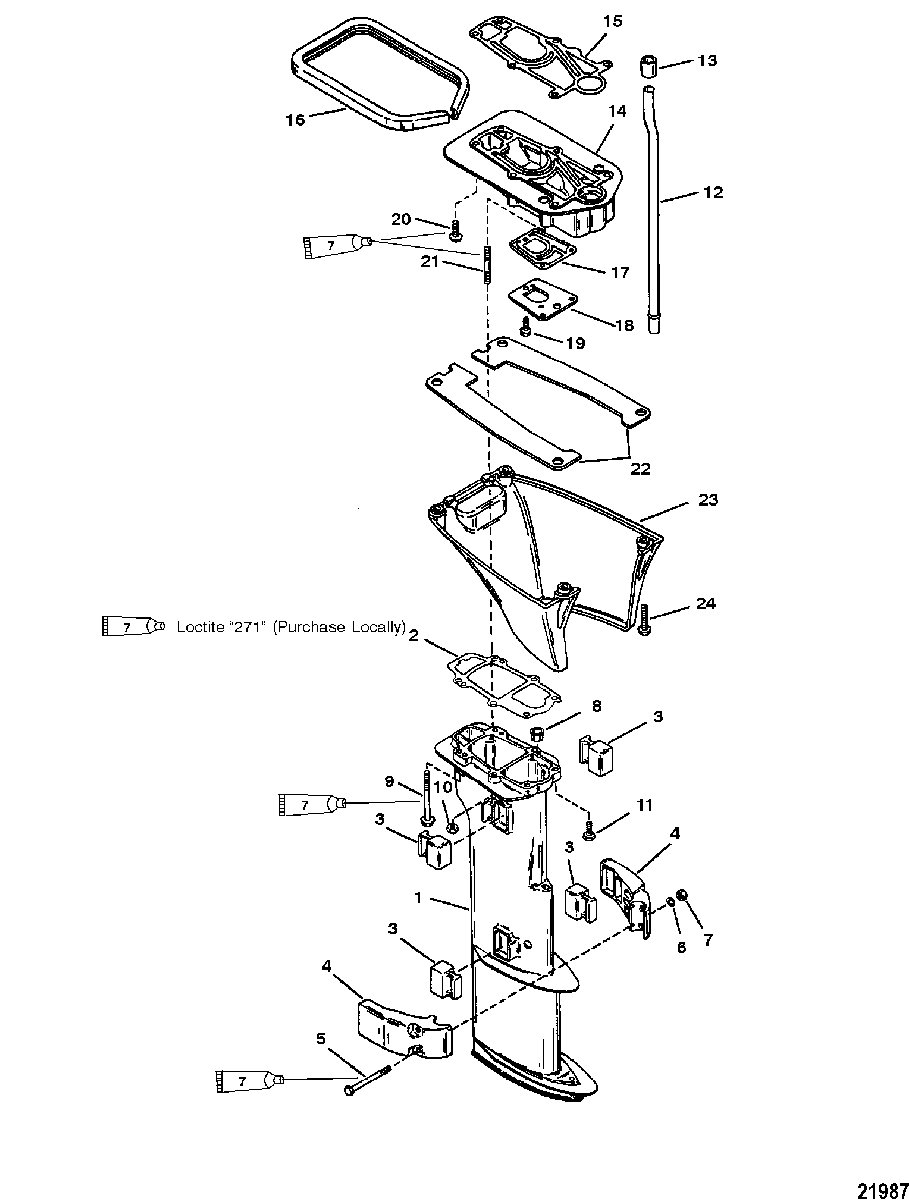

Driveshaft Housing Assembly для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
11596-822154A1 HOUSING ASSEMBLY (SHORT) (BLACK)HOUSING ASSEMBLY (SHORT) (BLACK)
-
11597-822155A1 HOUSING ASSEMBLY (LONG) (BLACK)HOUSING ASSEMBLY (LONG) (BLACK)
-
11596-822154A2 HOUSING ASSEMBLY (SHORT) (GRAY)HOUSING ASSEMBLY (SHORT) (GRAY)
-
11597-822155A2 HOUSING ASSEMBLY (LONG) (GRAY)HOUSING ASSEMBLY (LONG) (GRAY)
-
227-195992 GASKET, Driveshaft HousingGASKET, Driveshaft Housing
-
38M0039074 MOUNTMOUNT
-
442374F6 COVER, Mount (BLACK)COVER, Mount (BLACK)
-
442374F6 COVER, Mount (GRAY)COVER, Mount (GRAY)
-
510-4009238 SCREW, (M6 x 80), Mount CoverSCREW, (M6 x 80), Mount Cover
-
613-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
711-400212 NUT, (M6), Cover ScrewNUT, (M6), Cover Screw
-
8445551 BEARING BLOCK (LONG)BEARING BLOCK (LONG)
-
910-4010775 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
1011-401386 NUT, (M6)NUT, (M6)
-
1110-40011131 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1232-421233 WATER TUBE (SHORT)WATER TUBE (SHORT)
-
1232-421222 WATER TUBE (LONG)WATER TUBE (LONG)
-
1326-42380001 SEAL, Water TubeSEAL, Water Tube
-
148215752 ADAPTOR PLATEADAPTOR PLATE
-
1527-41670006 GASKET, Adaptor PlateGASKET, Adaptor Plate
-
16158664 SEAL, Adaptor PlateSEAL, Adaptor Plate
-
1727-8221531 GASKET, Exhaust TubeGASKET, Exhaust Tube
-
18822152 PLATEPLATE
-
1910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2010-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2116-8161949 STUD (M6 x 1 x 40)STUD (M6 x 1 x 40)
-
228161411 PLATE, Trim CoverPLATE, Trim Cover
-
23821863F2 TRIM COVER (BLACK)TRIM COVER (BLACK)
-
23821863F3 TRIM COVER (GRAY)TRIM COVER (GRAY)
-
2410-40011130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
-27-41670A94 GASKET SETGASKET SET
