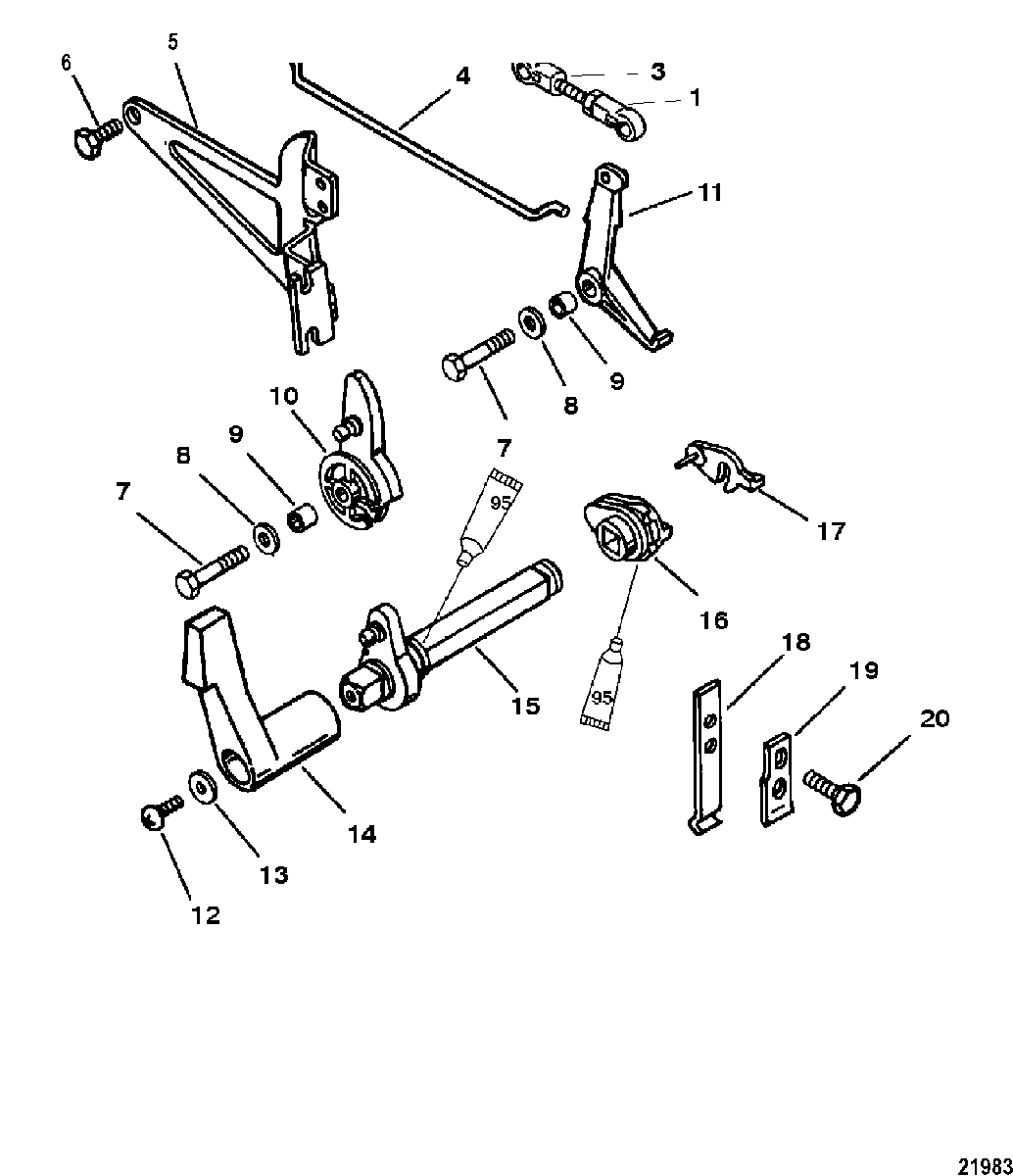

Throttle and Shift Linkage для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
1823857A1 LINK-SPARK ADJUSTMENTLINK-SPARK ADJUSTMENT
-
2817428 SOCKETSOCKET
-
311-45076 NUT, (#10-32)NUT, (#10-32)
-
442161 LINK INTERLOCKLINK INTERLOCK
-
58237581 ANCHOR BRACKET-CABLEANCHOR BRACKET-CABLE
-
610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
812-69056 WASHER, (.255 x .620 x .03)WASHER, (.255 x .620 x .03)
-
923-823806 BUSHINGBUSHING
-
108237571 THROTTLE CAMTHROTTLE CAM
-
118236103 LEVER, Interlock ControlLEVER, Interlock Control
-
1210-40019108 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
1312-4002314 WASHERWASHER
-
148239521 SHIFT HANDLESHIFT HANDLE
-
158236011 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
168235992 LEVER, Horizontal Shift Shaft (PORT)LEVER, Horizontal Shift Shaft (PORT)
-
17823613 LEVER, BackplateLEVER, Backplate
-
1824-826077 SPRING, DetentSPRING, Detent
-
19824994 SPRING, PlateSPRING, Plate
-
2010-40011107 SCREW, (M5 x 16)SCREW, (M5 x 16)
