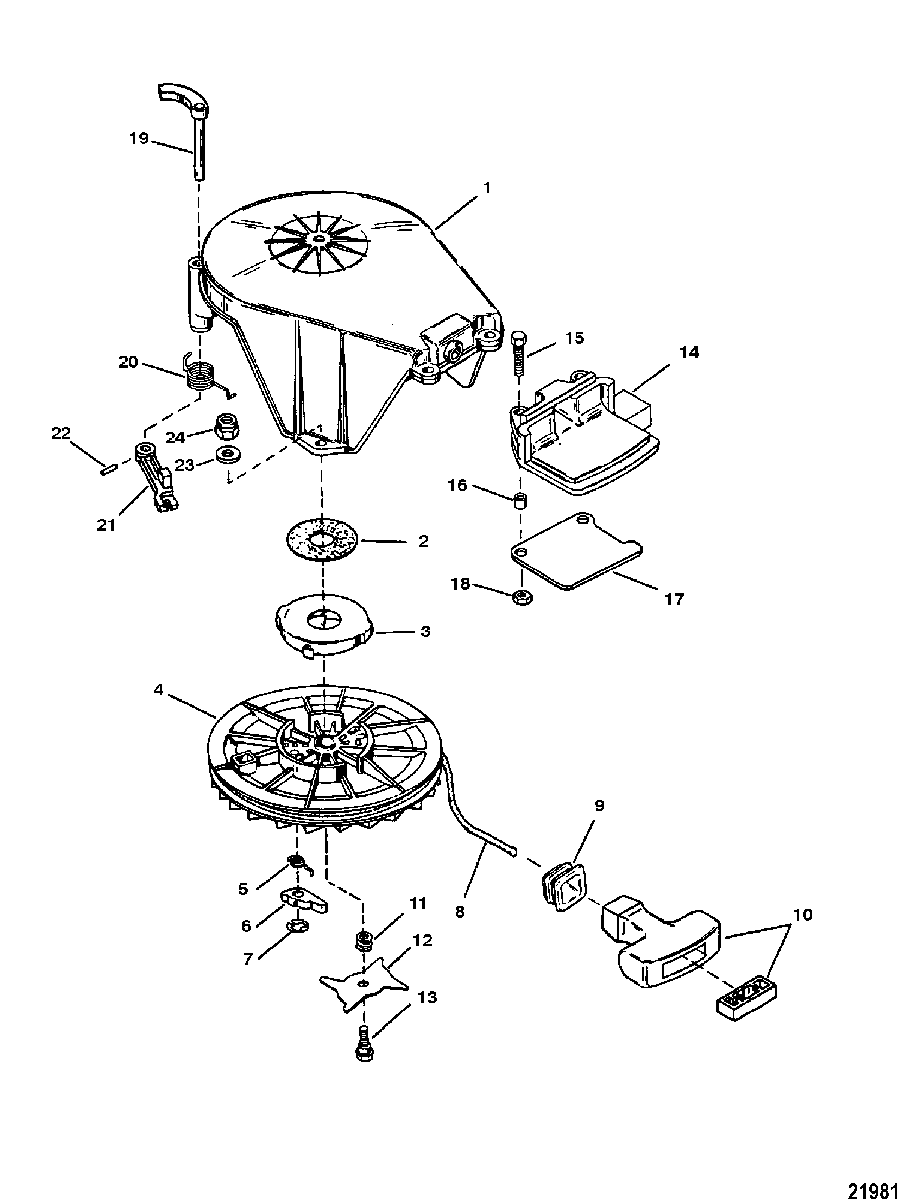

Starter Assembly(Manual) для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
-90906A23 RECOIL STARTER ASSEMBLY, CompleteRECOIL STARTER ASSEMBLY, Complete
-
186689A5 HOUSINGHOUSING
-
2833161T PAD, FeltPAD, Felt
-
324-86857T01 SPRINGSPRING
-
450-825269T01 SHEAVESHEAVE
-
524-86851T02 SPRINGSPRING
-
6868501 CAMCAM
-
753-86849T01 RETAINING RINGRETAINING RING
-
850-12066Q10 ROPE, StarterROPE, Starter
-
944180 BUSHING, RopeBUSHING, Rope
-
1085174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
1124-868523 SPRINGSPRING
-
1286853T01 CAMCAM
-
1310-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
14426264 SUPPORTSUPPORT
-
1510-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1623-309772 SPACERSPACER
-
17856154T01 SUPPORTSUPPORT
-
1811-401385 NUT, (M5)NUT, (M5)
-
19858925 LEVER, Lock (UPPER)LEVER, Lock (UPPER)
-
2024-823778 SPRING, Upper Lock LeverSPRING, Upper Lock Lever
-
2193876T02 LEVER, Lock (LOWER)LEVER, Lock (LOWER)
-
2217-38489 PIN, RollPIN, Roll
-
2312-69056 WASHER, (.255 x .620 x .03)WASHER, (.255 x .620 x .03)
-
2411-401386 NUT, (M6)NUT, (M6)
