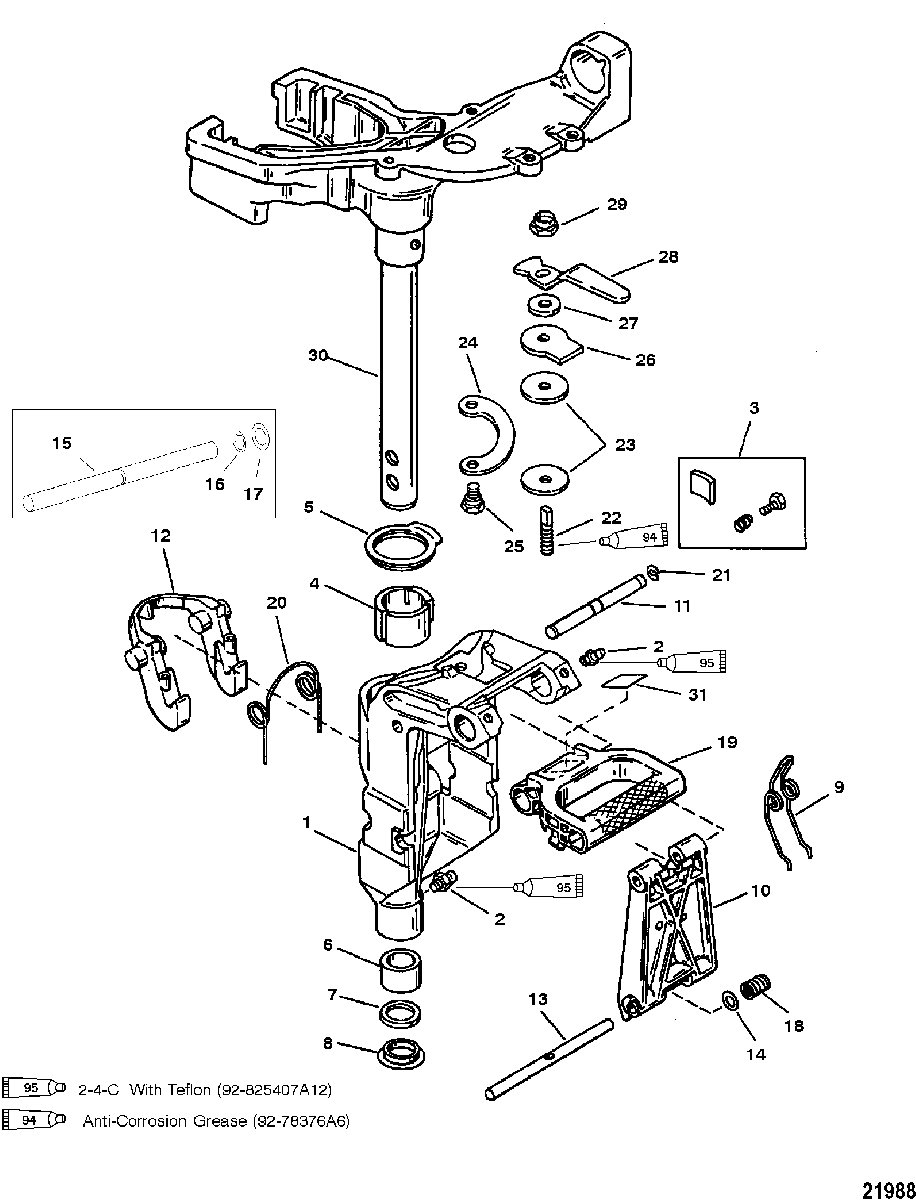

Swivel Bracket Assembly для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
-
13402-8831T08 SWIVEL BRACKET
(BLACK)SWIVEL BRACKET
(BLACK) -
13402-8831T08 SWIVEL BRACKET
(GRAY)SWIVEL BRACKET
(GRAY) -
222-74036 FITTING, GreaseFITTING, Grease
-
342124A2 PLATE ASSEMBLY-CO-PILOTPLATE ASSEMBLY-CO-PILOT
-
423-421402 BEARINGBEARING
-
523-42080T01 THRUST BEARING-UPPERTHRUST BEARING-UPPER
-
623-42139 BUSHING, LowerBUSHING, Lower
-
726-42077 SEALSEAL
-
812-42373 THRUST WASHER, LowerTHRUST WASHER, Lower
-
924-421301 SPRINGSPRING
-
1042082T04 BRACKETBRACKET
-
1117-420811 PINPIN
-
128M0075731 HOOK, Reverse LockHOOK, Reverse Lock
-
1317-830741A1 PIVOT PIN
(DESIGN I)PIVOT PIN
(DESIGN I) -
1491963 WASHER, (.390 x .600 x .032), Pivot Pin
(DESIGN I)WASHER, (.390 x .600 x .032), Pivot Pin
(DESIGN I) -
1517-830741A1 PIVOT PIN
(DESIGN II)PIVOT PIN
(DESIGN II) -
1791963 WASHER, (.390 x .600 x .032)
(DESIGN II)WASHER, (.390 x .600 x .032)
(DESIGN II) -
1824-42128 SPRINGSPRING
-
19420852 CARRYING HANDLE
(BLACK)CARRYING HANDLE
(BLACK) -
16420852 CARRYING HANDLE
(GRAY)CARRYING HANDLE
(GRAY) -
2024-42127 SPRING, Reverse HookSPRING, Reverse Hook
-
2153-13194 RING, RetainingRING, Retaining
-
22821961 RODROD
-
238165621 DISCDISC
-
24821958A1 SWIVEL HEAD PLATESWIVEL HEAD PLATE
-
2510-40011126 SCREW, (M6 x 13)SCREW, (M6 x 13)
-
26821957 BRAKE PLATEBRAKE PLATE
-
2712-29330 WASHERWASHER
-
28821959 HANDLEHANDLE
-
2911-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
3042213A24 SWIVEL HEAD
(BLACK)SWIVEL HEAD
(BLACK) -
3042213A25 SWIVEL HEAD
(GRAY)SWIVEL HEAD
(GRAY) -
3137-8237011 DECAL, Co-PilotDECAL, Co-Pilot
