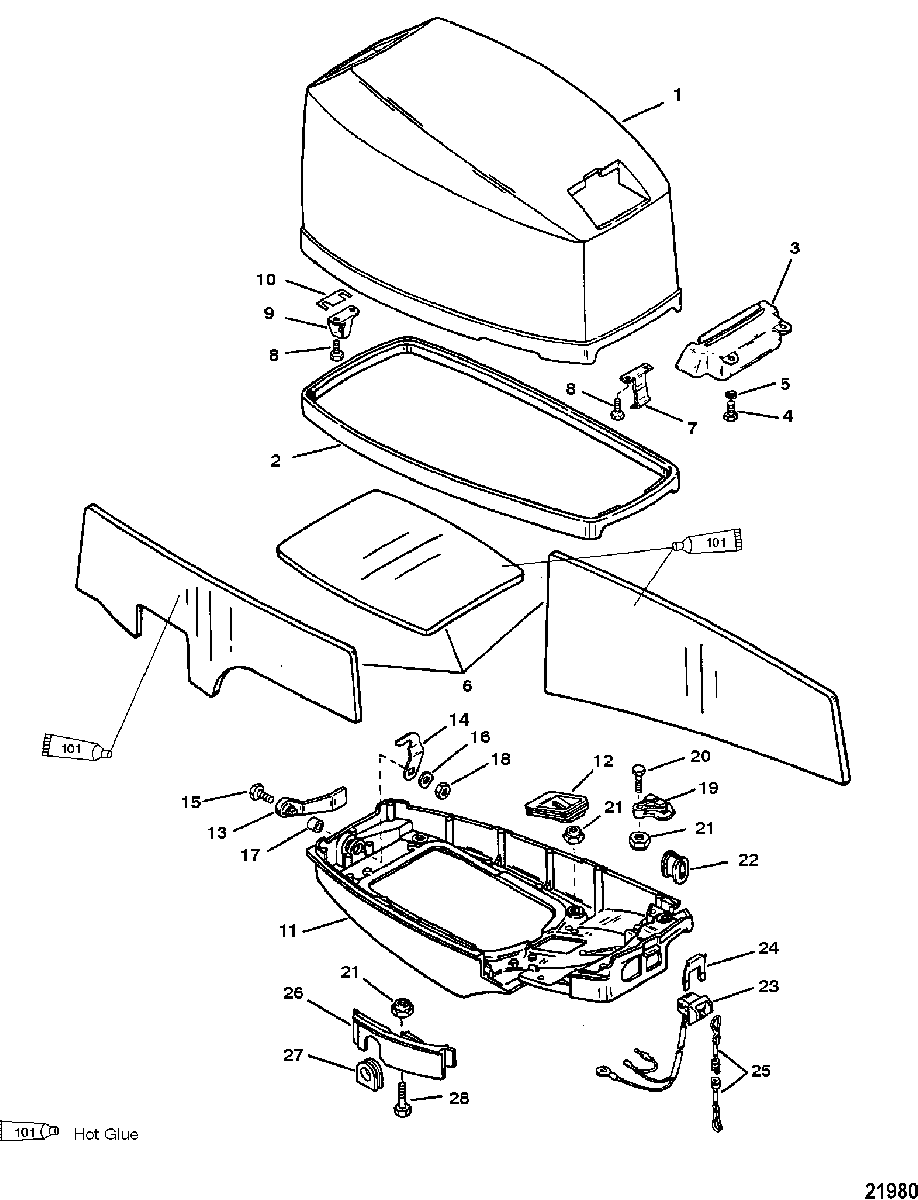

Cowling для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
12190-9163T19 TOP COWL (BLACK)
WITHOUT DECALSTOP COWL (BLACK)
WITHOUT DECALS -
12190-9163T21 TOP COWL (GRAY)
WITHOUT DECALSTOP COWL (GRAY)
WITHOUT DECALS -
12190-9163T21 TOP COWL (SILVER)
WITHOUT DECALSTOP COWL (SILVER)
WITHOUT DECALS -
28M0043411 COWL SEALCOWL SEAL
-
344311F3 SHIELD (BLACK)SHIELD (BLACK)
-
344311F3 SHIELD (GRAY)SHIELD (GRAY)
-
344311F3 SHIELD (SILVER)SHIELD (SILVER)
-
410-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
512-73288 WASHER, (.220 x .500 x .030)WASHER, (.220 x .500 x .030)
-
6815625A02 SOUND BLANKET KITSOUND BLANKET KIT
-
717221 COWL LATCHCOWL LATCH
-
810-400033 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
9812413A1 ROLLER BRACKET ASSEMBLYROLLER BRACKET ASSEMBLY
-
1018517 COWL LATCH SHIMCOWL LATCH SHIM
-
112193-9682A8 BOTTOM COWL (BLACK)BOTTOM COWL (BLACK)
-
112193-9682A9 BOTTOM COWL (GRAY)BOTTOM COWL (GRAY)
-
1225-17231 GROMMET, Shift ShaftGROMMET, Shift Shaft
-
1317220 LEVER, Cowl LatchLEVER, Cowl Latch
-
14816202 HOOK, LatchHOOK, Latch
-
1510-40019130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1613-37642 WAVE WASHERWAVE WASHER
-
1723-812707 BUSHING, NylonBUSHING, Nylon
-
1811-17224 NUT, Latch RetainingNUT, Latch Retaining
-
1917223 COVER, HarnessCOVER, Harness
-
2010-40011131 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2111-401196 NUT, (M6)NUT, (M6)
-
2225-17226 GROMMET, Wire HarnessGROMMET, Wire Harness
-
2387-11083A6 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
248M0032846 RETAINERRETAINER
-
258M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
268M0054857 SIDE COVER (HANDLE - BLACK)SIDE COVER (HANDLE - BLACK)
-
268M0054857 SIDE COVER (HANDLE - GRAY)SIDE COVER (HANDLE - GRAY)
-
2725-824361 GROMMETGROMMET
-
2810-4000329 SCREW, (M6 x 20)SCREW, (M6 x 20)
