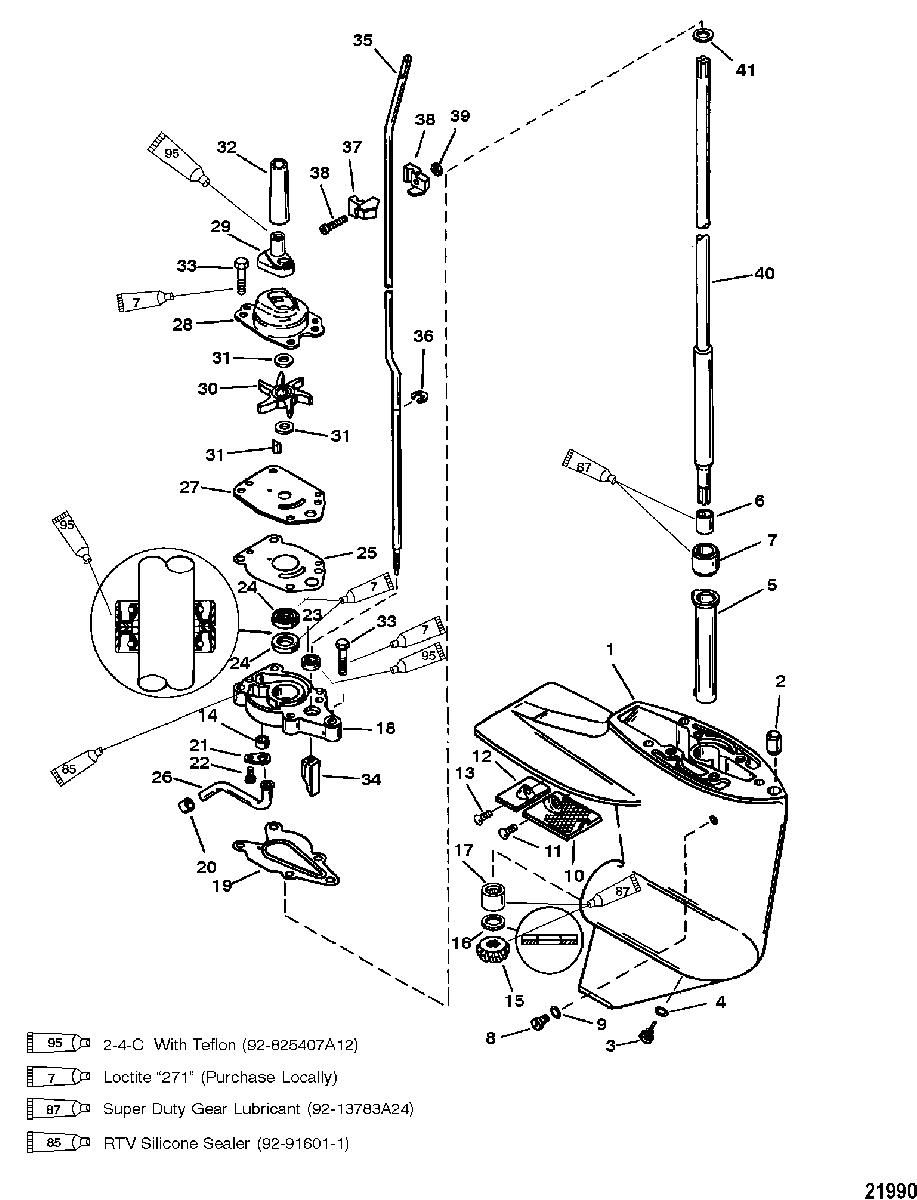

Gear Housing(Driveshaft) для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
-1666-8833T21 GEAR HOUSING, Complete
(SHORT) (BLACK)GEAR HOUSING, Complete
(SHORT) (BLACK) -
-1666-8833T22 GEAR HOUSING, Complete
(LONG) (BLACK)GEAR HOUSING, Complete
(LONG) (BLACK) -
-1666-8833T23 GEAR HOUSING, Complete
(SHORT) (GRAY)GEAR HOUSING, Complete
(SHORT) (GRAY) -
-1666-8833T22 GEAR HOUSING, Complete
(LONG) (GRAY)GEAR HOUSING, Complete
(LONG) (GRAY) -
11600-8M0083312 GEAR HOUSING, Basic
(BLACK)GEAR HOUSING, Basic
(BLACK) -
11600-8M0083312 GEAR HOUSING
(GRAY)GEAR HOUSING
(GRAY) -
223-12009 BUSHING, (.31 x .45 x .50)BUSHING, (.31 x .45 x .50)
-
322-8M0058389 SCREW, MagneticSCREW, Magnetic
-
412-191833 WASHER, FiberWASHER, Fiber
-
5822244A1 SLEEVE ASSEMBLYSLEEVE ASSEMBLY
-
623-823944 SLEEVESLEEVE
-
723-823943 BUSHINGBUSHING
-
810-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
912-191833 WASHER, FiberWASHER, Fiber
-
1035-421991 SCREENSCREEN
-
1110-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1297-42121Q02 ANODE ASSEMBLYANODE ASSEMBLY
-
1310-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1426-42133 SEALSEAL
-
1543-8219251 PINION GEAR, (13-26)PINION GEAR, (13-26)
-
1612-41369 WASHER, ThrustWASHER, Thrust
-
1731-22756 ROLLER BEARINGROLLER BEARING
-
1846-42040T5 WATER PUMP BASEWATER PUMP BASE
-
1927-192043 GASKETGASKET
-
2026-33613 SEALSEAL
-
2142375 RETAINERRETAINER
-
2210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2325-822236 QUAD RINGQUAD RING
-
2426-413651 OIL SEALOIL SEAL
-
2527-19202001 GASKET, Water Pump PlateGASKET, Water Pump Plate
-
2632-42185A1 WATER TUBEWATER TUBE
-
2742200 FACE PLATEFACE PLATE
-
2846-42089A2 COVER ASSEMBLYCOVER ASSEMBLY
-
2926-421021 SEALSEAL
-
3047-42038Q02 IMPELLERIMPELLER
-
3128-42376A2 KEY ASSEMBLYKEY ASSEMBLY
-
32444671 GUIDEGUIDE
-
3310-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3442039 CAM, ShiftCAM, Shift
-
35822249 SHIFT SHAFT
(SHORT)SHIFT SHAFT
(SHORT) -
35822250 SHIFT SHAFT
(LONG)SHIFT SHAFT
(LONG) -
3653-42389 E RINGE RING
-
378M0036770 GUIDEGUIDE
-
3810-40011109 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
3911-401385 NUT, (M5)NUT, (M5)
-
4045-825151 DRIVESHAFT
(SHORT)DRIVESHAFT
(SHORT) -
4045-825152 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
4112-822248 THRUST WASHERTHRUST WASHER
-
-26-41365A3 SEAL KITSEAL KIT
-
-46-42089A5 WATER PUMP KITWATER PUMP KIT
-
-27-41670A94 GASKET SETGASKET SET
