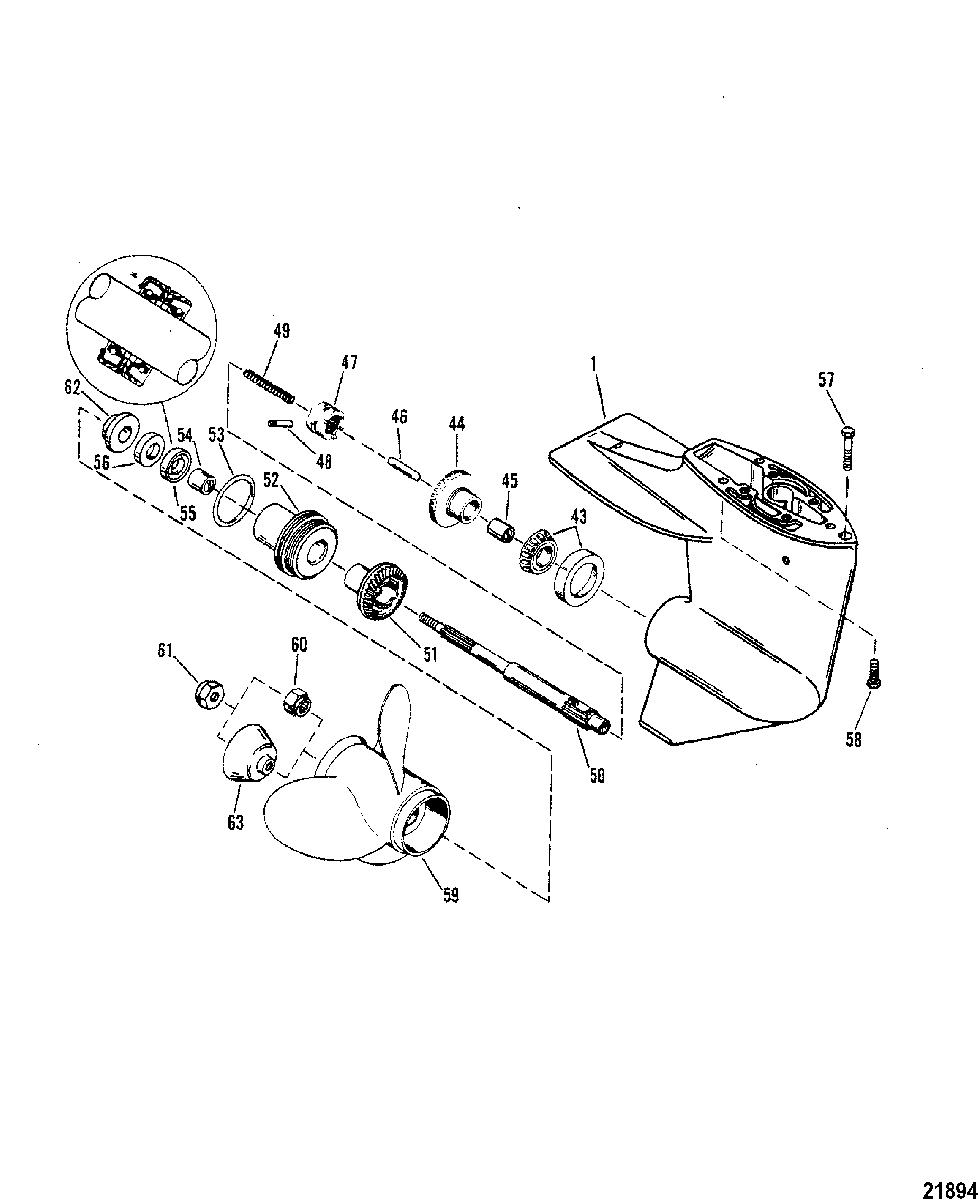

Gear Housing(Propeller Shaft) для Mariner - 15 MARATHON 0G044365 THRU 0G437999
-
№АртикулНазвание
-
-1666-8833T21 GEAR HOUSING, Complete
(SHORT) BLACKGEAR HOUSING, Complete
(SHORT) BLACK -
-1666-8833T22 GEAR HOUSING, Complete
(LONG) BLACKGEAR HOUSING, Complete
(LONG) BLACK -
-1666-8833T23 GEAR HOUSING, Complete
(SHORT) GRAYGEAR HOUSING, Complete
(SHORT) GRAY -
-1666-8833T22 GEAR HOUSING, Complete
(LONG) GRAYGEAR HOUSING, Complete
(LONG) GRAY -
11600-8M0083312 GEAR HOUSING, Basic
(BLACK)GEAR HOUSING, Basic
(BLACK) -
11600-8M0083312 GEAR HOUSING
(GRAY)GEAR HOUSING
(GRAY) -
4331-821321A1 ROLLER BEARINGROLLER BEARING
-
4443-821924A1 FORWARD GEARFORWARD GEAR
-
4523-41367 BUSHINGBUSHING
-
46813139 CAM FOLLOWERCAM FOLLOWER
-
4752-821930A1 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
4817-823951 CROSS PINCROSS PIN
-
4924-42204 SPRINGSPRING
-
5044-821929 PROPELLER SHAFTPROPELLER SHAFT
-
5143-821926T1 REVERSE GEAR, 13-26REVERSE GEAR, 13-26
-
5242144T3 BEARING CARRIERBEARING CARRIER
-
5325-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
5423-821927 BUSHINGBUSHING
-
5526-99325 SEALSEAL
-
5626-821928 OIL SEALOIL SEAL
-
5710-82407110 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
5810-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
5948-828156A12 PROPELLER, (9.00 x 9.00)PROPELLER, (9.00 x 9.00)
-
6023-420911 SPACERSPACER
-
6111-40140 NUT, (M10)NUT, (M10)
-
62821932 THRUST HUB
(1.390 DIA.)THRUST HUB
(1.390 DIA.) -
628219321 THRUST HUB
(1.510 DIA.)THRUST HUB
(1.510 DIA.) -
63822559Q01 HI-REVERSE THRUST CUPHI-REVERSE THRUST CUP
-
-26-41365A3 SEAL KITSEAL KIT
-
-27-41670A94 GASKET SETGASKET SET
