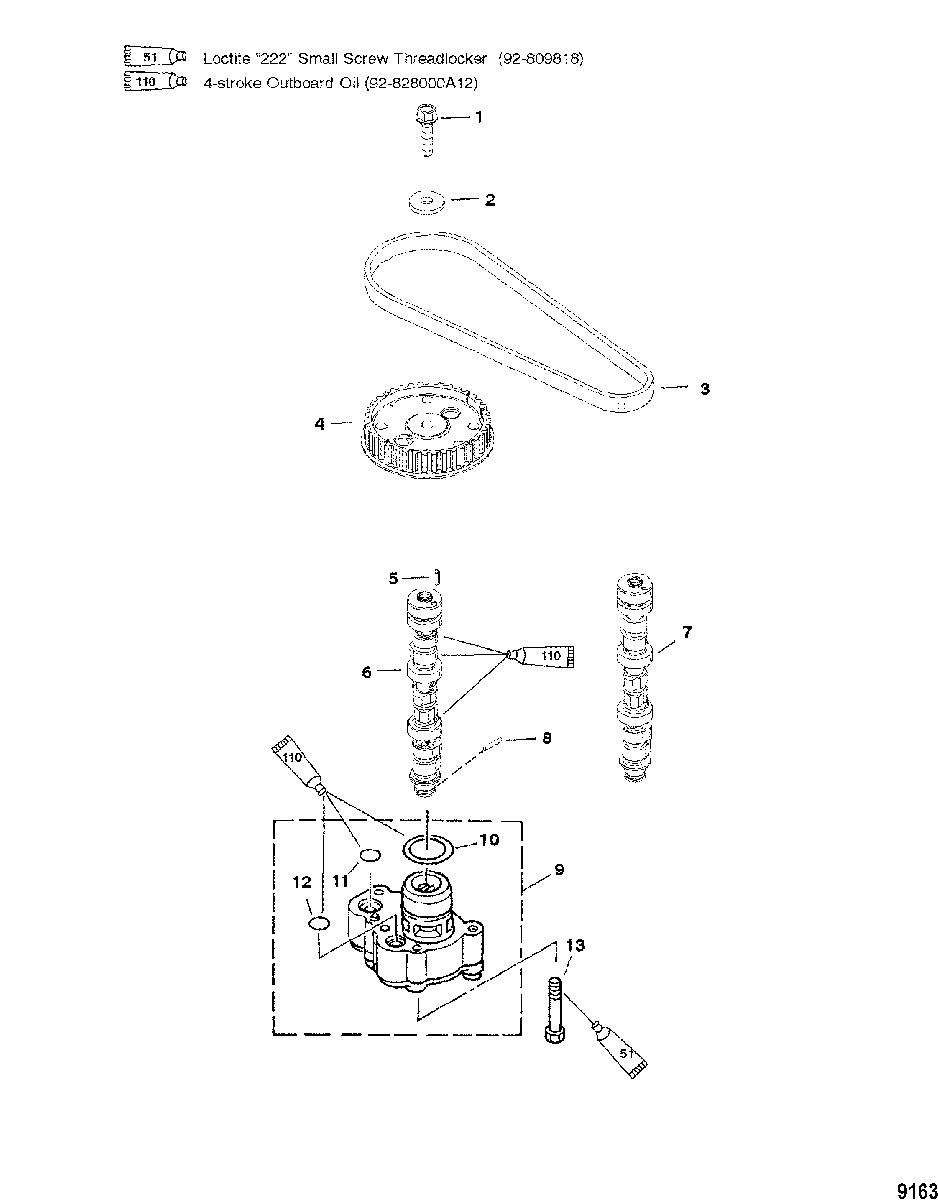

Camshaft/Oil Pump для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
110-82761140 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
212-4002319 WASHERWASHER
-
357-8M0065179 BELTBELT
-
4833104T6 GEAR, DrivenGEAR, Driven
-
517-825956 PIN, DowelPIN, Dowel
-
6400-8M0082064 CAMSHAFT
(MANUAL)CAMSHAFT
(MANUAL) -
7402-834781T1 CAMSHAFT
(ELECTRIC)CAMSHAFT
(ELECTRIC) -
817-826149 PINPIN
-
9825058A1 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
1025-826152 O-RINGO-RING
-
1125-826154 O-RINGO-RING
-
1225-826153 O-RINGO-RING
-
1310-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
-27-825231A99 GASKET SET, EngineGASKET SET, Engine
