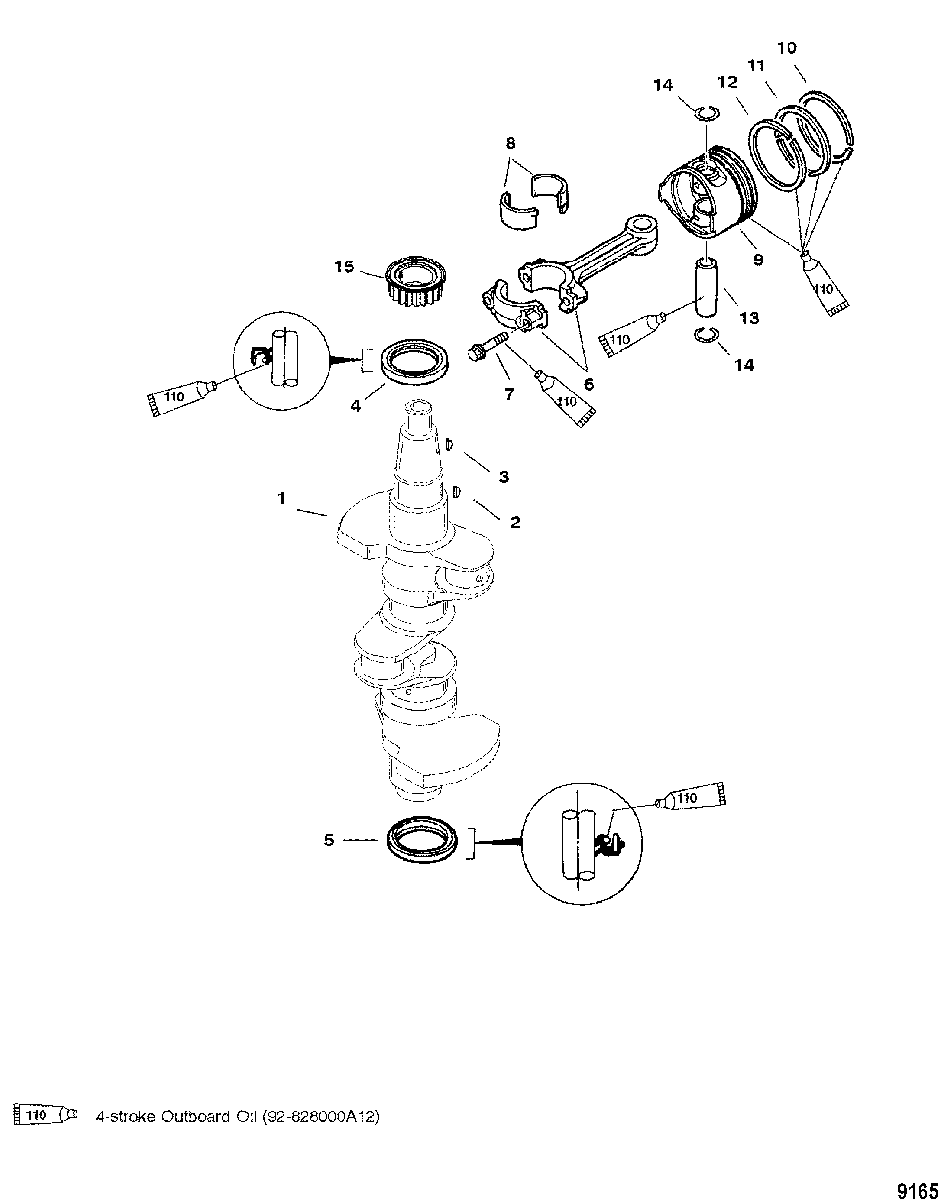

Crankshaft, Piston and Connecting Rods для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499

№

Артикул

Название
1

401-834774T1 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

93 320 ₽
1

401-834774T2 CRANKSHAFT
(BIGFOOT)

CRANKSHAFT
(BIGFOOT)

104 230 ₽
2

28-893761 KEY

KEY

740 ₽
3

28-91800 KEY, Woodruff

KEY, Woodruff

340 ₽
4

26-893949 SEAL

SEAL

2 580 ₽
5

26-893948 SEAL

SEAL

890 ₽
6

600-893530T01 CONNECTING ROD

CONNECTING ROD

22 490 ₽
7

10-8M0049884 BOLT

BOLT

580 ₽
8

23-893630 BEARING, Brown

BEARING, Brown

1 180 ₽
8

23-893630001 BEARING, Black

BEARING, Black

1 270 ₽
8

23-893630002 BEARING, Blue

BEARING, Blue

1 170 ₽
9

700-893524T08 PISTON ASSEMBLY
(STANDARD)

PISTON ASSEMBLY
(STANDARD)

6 740 ₽
9

700-8M0057775 PISTON
(.25 O/S)(BARE PISTON)

PISTON
(.25 O/S)(BARE PISTON)

8 690 ₽
9

700-8M0057776 PISTON
(.50 O/S)(BARE PISTON)

PISTON
(.50 O/S)(BARE PISTON)

8 690 ₽
10

39-893525A01 RING SET, Piston (TOP)
(STANDARD)

RING SET, Piston (TOP)
(STANDARD)

4 430 ₽
10

39-893525A02 RING, Piston (TOP)
(.25MM O/S)

RING, Piston (TOP)
(.25MM O/S)

1 810 ₽
10

39-893525A03 RING, Piston (TOP)
(.50MM O/S)

RING, Piston (TOP)
(.50MM O/S)

1 750 ₽
11

NSS NOT SOLD SEPARATE, Piston Ring (Second)
(STANDARD)

NOT SOLD SEPARATE, Piston Ring (Second)
(STANDARD)

0 ₽
11

NSS NOT SOLD SEPARATE, Piston Ring (Second)
(.25MM O/S)

NOT SOLD SEPARATE, Piston Ring (Second)
(.25MM O/S)

0 ₽
11

39-893525A03 RING, Piston (Second)
(.50MM O/S)

RING, Piston (Second)
(.50MM O/S)

1 750 ₽
12

39-893950 RING, Oil

RING, Oil

800 ₽
13

41-893863 PIN, Piston

PIN, Piston

1 290 ₽
14

40-893529 RETAINER

RETAINER

200 ₽
15

833102T GEAR, Drive

GEAR, Drive

3 320 ₽
-

27-825231A99 GASKET SET, Engine

GASKET SET, Engine

30 010 ₽
-

61-803017T01 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY

150 480 ₽
-

61-803016T01 POWERHEAD ASSEMBLY
(BIGFOOT)

POWERHEAD ASSEMBLY
(BIGFOOT)

220 710 ₽
