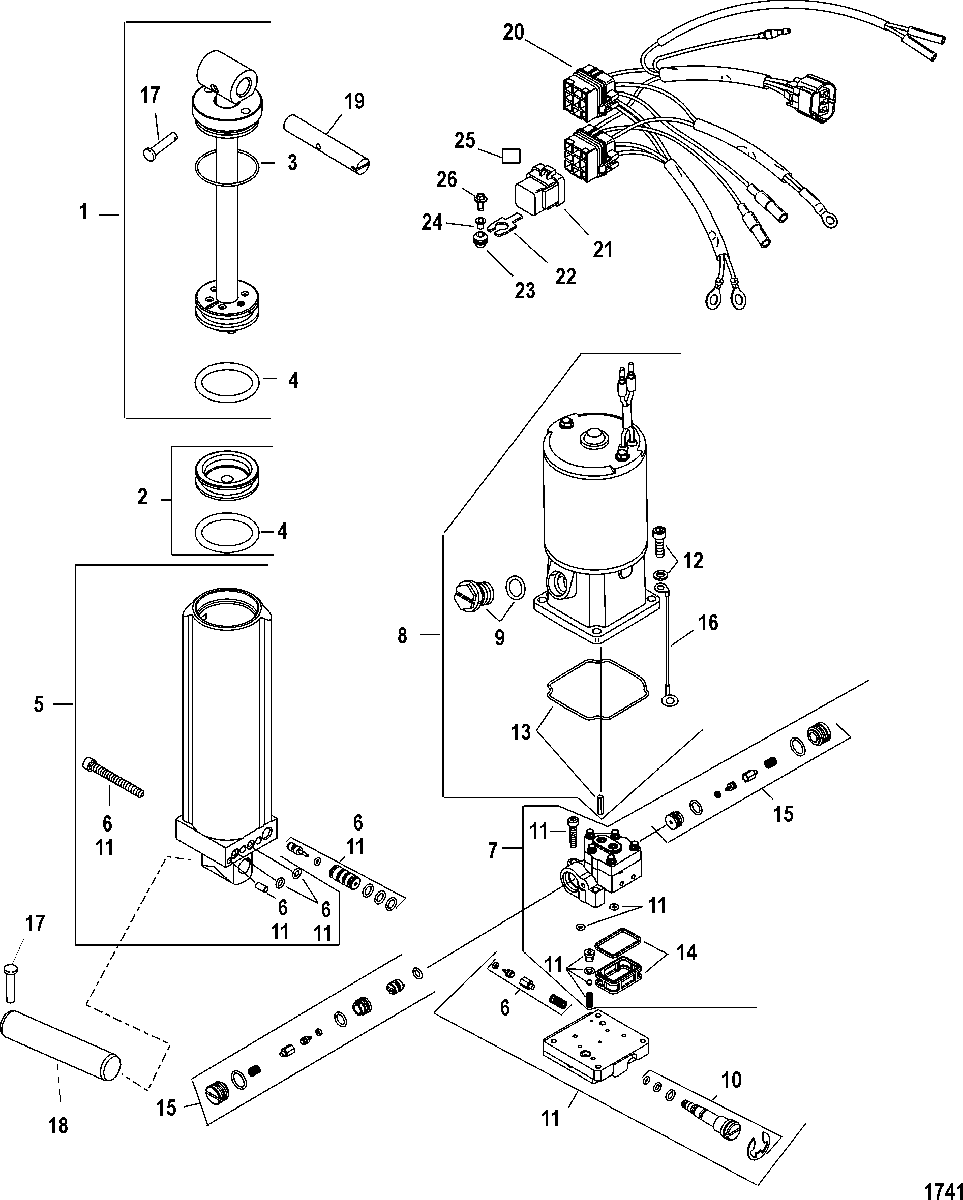

Power Trim для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
-8M0055006 PUMP/MOTOR ASSEMBLY
(NON-BIGFOOT)PUMP/MOTOR ASSEMBLY
(NON-BIGFOOT) -
-8M0055011 PUMP/MOTOR ASSEMBLY
(BIGFOOT)PUMP/MOTOR ASSEMBLY
(BIGFOOT) -
1893943A01 SHOCK ROD KITSHOCK ROD KIT
-
2810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
325-893902A01 O-RING KIT, RebuildO-RING KIT, Rebuild
-
4NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
58M0055016 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
68M0090404 VALVE KIT, Trim Limit
(NON-BIGFOOT)VALVE KIT, Trim Limit
(NON-BIGFOOT) -
6893944A01 VALVE KIT, Trim Limit
(BIGFOOT)VALVE KIT, Trim Limit
(BIGFOOT) -
78M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
8893907A02 MOTOR KITMOTOR KIT
-
922-8134351 PLUGPLUG
-
10893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
118M0055018 MANIFOLD KITMANIFOLD KIT
-
1210-809876A1 SCREW KIT (MOTOR)SCREW KIT (MOTOR)
-
13809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 POPPET KITPOPPET KIT
-
1688238A18 CABLE ASSEMBLYCABLE ASSEMBLY
-
-25-8M0089947 O-RING KIT (COMPLETE TRIM)O-RING KIT (COMPLETE TRIM)
-
1717-821539 PIN, TrilobePIN, Trilobe
-
1817-19607 PINPIN
-
1917-822869001 PINPIN
-
-84-826802T21 HARNESS ASSEMBLY, Trim
SN# 0T178500 & UpHARNESS ASSEMBLY, Trim
SN# 0T178500 & Up -
-84-826802A15 HARNESS/RELAY ASSEMBLY
SN# 0T178499 & BelowHARNESS/RELAY ASSEMBLY
SN# 0T178499 & Below -
2084-826802T19 HARNESS ASSEMBLY, Trim
SN# 0T178500 & UpHARNESS ASSEMBLY, Trim
SN# 0T178500 & Up -
2084-826802A12 HARNESS ASSEMBLY
SN# 0T178499 & BelowHARNESS ASSEMBLY
SN# 0T178499 & Below -
21882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
22828102 BRACKETBRACKET
-
2325-818967 GROMMETGROMMET
-
2423-818968 BUSHINGBUSHING
-
25NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
2610-82684430 SCREW, (M6 x 30)
SN# 0T294064 & BelowSCREW, (M6 x 30)
SN# 0T294064 & Below
