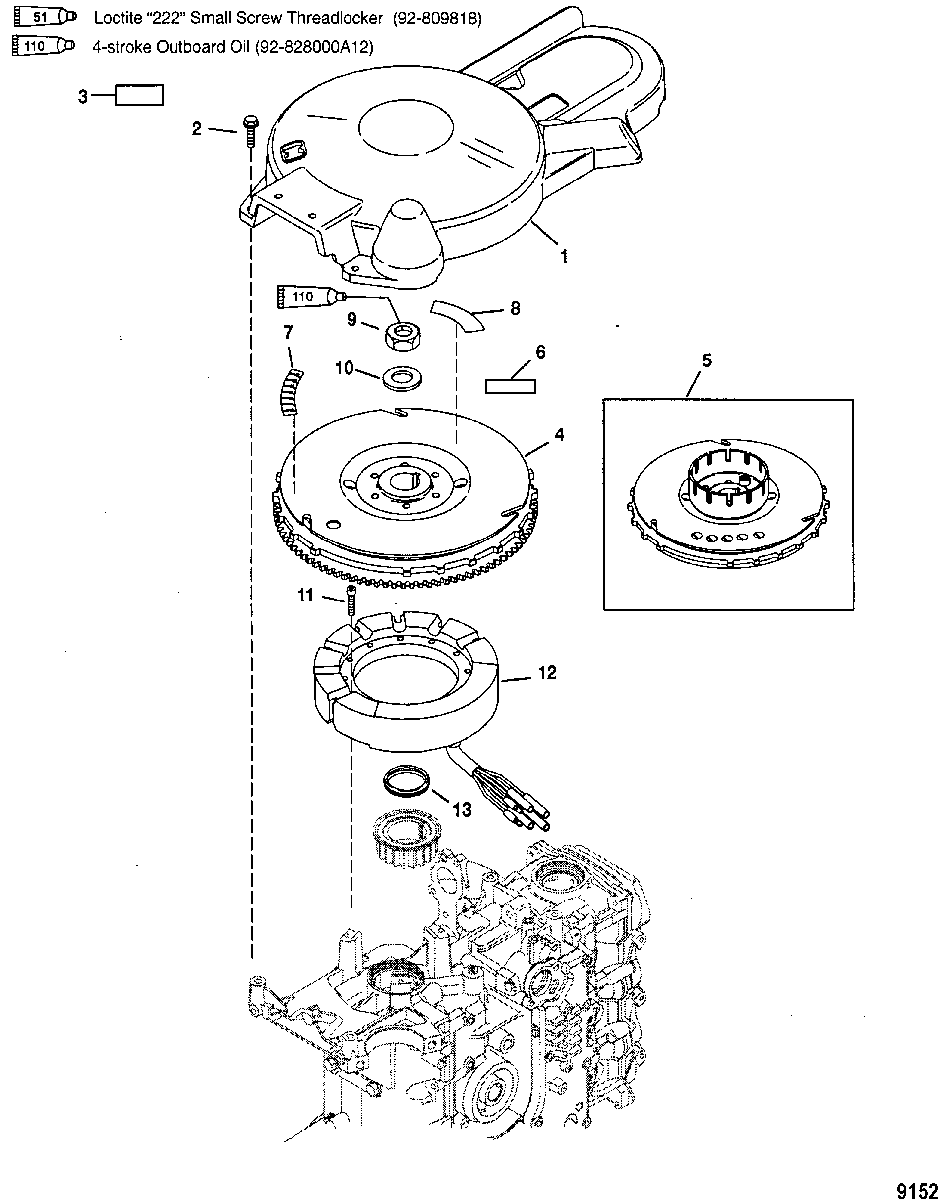

Flywheel для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
1859284T2 FLYWHEEL COVER
(ELECTRIC)FLYWHEEL COVER
(ELECTRIC) -
210-8248326 SCREW, (M6 x 25 MM)
(ELECTRIC)SCREW, (M6 x 25 MM)
(ELECTRIC) -
337-856985A22 DECAL, EPA Label Information
(ELECTRIC)(1999)DECAL, EPA Label Information
(ELECTRIC)(1999) -
337-804654A00 DECAL, EPA Label Information
(ELECTRIC)(2000)DECAL, EPA Label Information
(ELECTRIC)(2000) -
337-804654A01 DECAL, EPA Label Information
(ELECTRIC)(2001)DECAL, EPA Label Information
(ELECTRIC)(2001) -
4284-832010T32 FLYWHEEL
(ELECTRIC)FLYWHEEL
(ELECTRIC) -
5200-8M0118174 FLYWHEEL
(MANUAL)FLYWHEEL
(MANUAL) -
6NSS NOT SOLD SEPARATE, Decal-Warning Spinning FlywheelNOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
-
7NSS NOT SOLD SEPARATE, Decal-Timing MarksNOT SOLD SEPARATE, Decal-Timing Marks
-
8NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
911-893789 NUTNUT
-
1012-893762 WASHERWASHER
-
1110-4007325 SCREW, (M5 x 25)
SN# 0G960499 & BelowSCREW, (M5 x 25)
SN# 0G960499 & Below -
1110-4007325 SCREW, (M5 x 25)
(Manual) SN# 0G960500 & UpSCREW, (M5 x 25)
(Manual) SN# 0G960500 & Up -
1110-4013930 SCREW, (M5 x 30)
(Electric) SN# 0G960500 & UpSCREW, (M5 x 30)
(Electric) SN# 0G960500 & Up -
12398-852387T7 STATOR
(Electric) SN# 0G960500 & UpSTATOR
(Electric) SN# 0G960500 & Up -
12398-852386T6 STATOR
(Manual) SN# 0G960500 & UpSTATOR
(Manual) SN# 0G960500 & Up -
12398-852387T9 STATOR
(Electric) SN# 0G960499 & BelowSTATOR
(Electric) SN# 0G960499 & Below -
12398-852386T8 STATOR
(Manual) SN# 0G960499 & BelowSTATOR
(Manual) SN# 0G960499 & Below -
13834838 LOAD RINGLOAD RING
