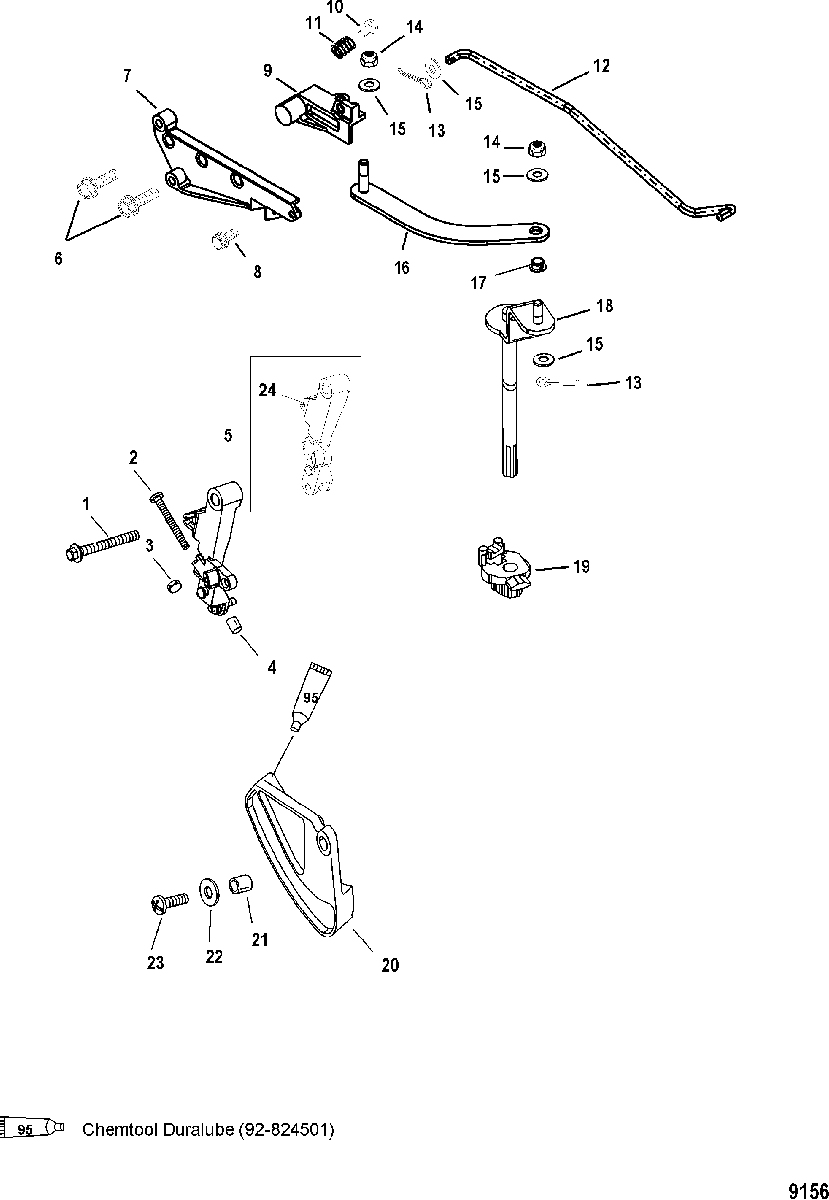

Linkage(Manual Bigfoot-0G960500 and Up) для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, Throttle
(DESIGN II)LEVER ASSEMBLY, Throttle
(DESIGN II) -
610-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
7858245 SHIFT GUIDESHIFT GUIDE
-
810-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
9858246 SHIFT SLIDESHIFT SLIDE
-
108M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12858247 SHIFT RODSHIFT ROD
-
1318-210711 COTTER PINCOTTER PIN
-
1411-401386 NUT, (M6)NUT, (M6)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
16858248 SHIFT LINKSHIFT LINK
-
1723-48475 BUSHINGBUSHING
-
18850166T2 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
1923-850165 BUSHINGBUSHING
-
208535853 CAM, ThrottleCAM, Throttle
-
2123-309772 SPACERSPACER
-
2212-4002314 WASHERWASHER
-
2310-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
24822682A4 LEVER, Throttle
(DESIGN I)LEVER, Throttle
(DESIGN I)
