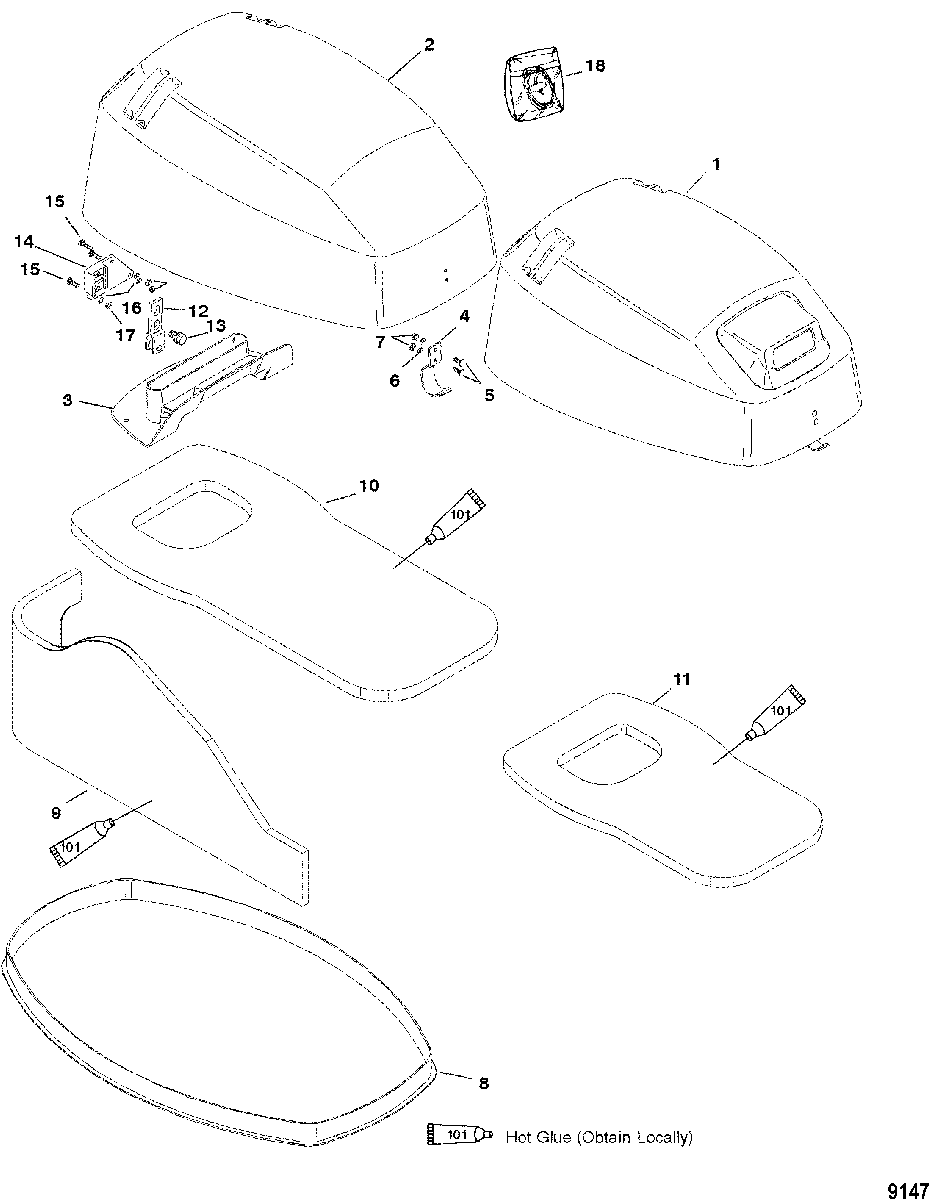

Top Cowl для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
1102-834785T17 TOP COWL ASSEMBLY
(MANUAL - BLACK)TOP COWL ASSEMBLY
(MANUAL - BLACK) -
1102-834785T6 TOP COWL ASSEMBLY
(MANUAL - SILVER)TOP COWL ASSEMBLY
(MANUAL - SILVER) -
2102-834785T22 TOP COWL ASSEMBLY
(ELECTRIC - BLACK)TOP COWL ASSEMBLY
(ELECTRIC - BLACK) -
2102-834785T8 TOP COWL ASSEMBLY
(ELECTRIC - SILVER)TOP COWL ASSEMBLY
(ELECTRIC - SILVER) -
3NSS NOT SOLD SEPARATE, Induction InsertNOT SOLD SEPARATE, Induction Insert
-
4826291F1 LATCH
(BLACK)LATCH
(BLACK) -
4826291F1 LATCH
(SILVER)LATCH
(SILVER) -
510-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
613-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
711-8237515 NUT, (M4)NUT, (M4)
-
88M0043388 SEALSEAL
-
9834786A04 SOUND BLANKET KITSOUND BLANKET KIT
-
10NSS NOT SOLD SEPARATE, Sound Blanket-Top
(ELECTRIC)NOT SOLD SEPARATE, Sound Blanket-Top
(ELECTRIC) -
11NSS NOT SOLD SEPARATE, Sound Blanket-Top
(MANUAL)NOT SOLD SEPARATE, Sound Blanket-Top
(MANUAL) -
12893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
1310-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
148M0038412 BRACKETBRACKET
-
1510-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1613-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1711-8237515 NUT, (M4)NUT, (M4)
-
1847341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
