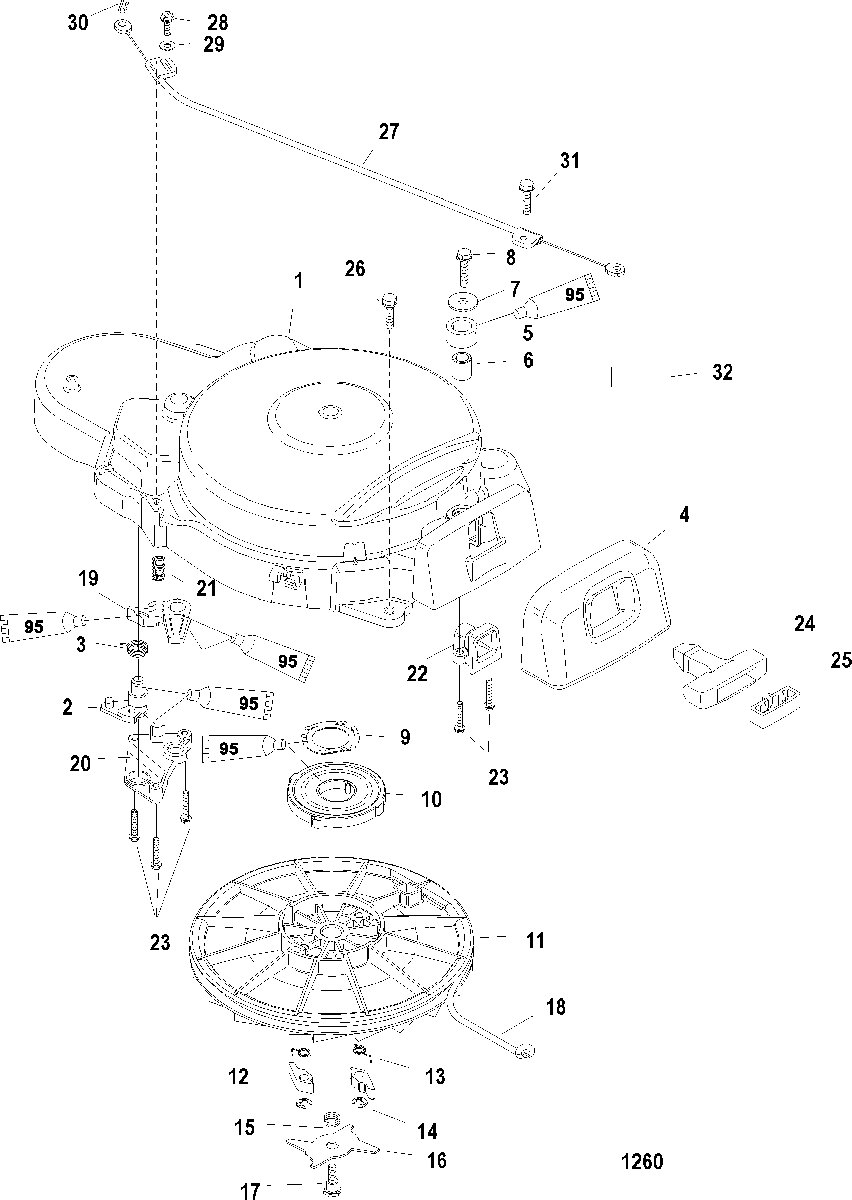

Manual Starter для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
-835253A13 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
1835253A12 HOUSING ASSEMBLY, RecoilHOUSING ASSEMBLY, Recoil
-
28167122 CAMCAM
-
324-8267911 SPRINGSPRING
-
48M0026455 SEALSEAL
-
5835256T ROLLERROLLER
-
623-852987T BUSHINGBUSHING
-
7826414T WASHERWASHER
-
810-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
913-826229 LOCKWASHERLOCKWASHER
-
1024-86857T01 SPRINGSPRING
-
1150-854317T5 SHEAVE ASSEMBLY, StarterSHEAVE ASSEMBLY, Starter
-
12868501 CAMCAM
-
1324-86851T02 SPRINGSPRING
-
1453-86849T01 RING, RetainingRING, Retaining
-
1524-868523 SPRINGSPRING
-
1686853T01 CAMCAM
-
1710-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1850-12066Q10 ROPEROPE
-
19856073 LEVER, InterlockLEVER, Interlock
-
20856072T RETAINERRETAINER
-
2124-856138T03 SPRINGSPRING
-
22854779T BUSHINGBUSHING
-
2310-8182491 SCREW, (#10-16 x 1.00)SCREW, (#10-16 x 1.00)
-
2485174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
25NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
2610-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
27856754 CABLE, InterlockCABLE, Interlock
-
2810-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
2912-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
3018-26811 COTTER PINCOTTER PIN
-
3110-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
3237-856985A22 DECAL, EPA Label Information
(1999)DECAL, EPA Label Information
(1999) -
3237-804654A00 DECAL, EPA Label Information
(2000)DECAL, EPA Label Information
(2000) -
3237-804654A01 DECAL, EPA Label Information
(2001)DECAL, EPA Label Information
(2001)
