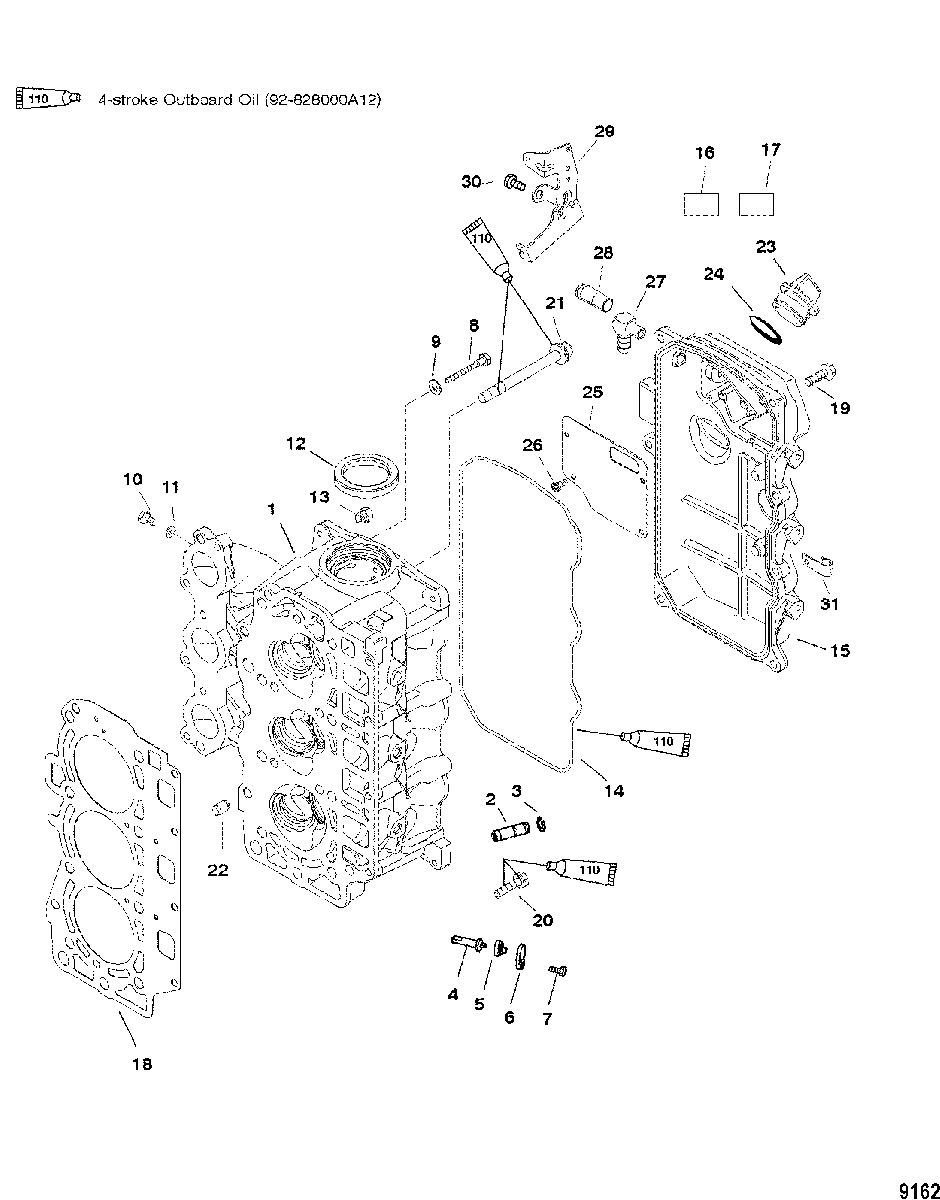

Cylinder Head для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
-893504T01 CYLINDER HEAD
(ELECTRIC)CYLINDER HEAD
(ELECTRIC) -
-893504T02 CYLINDER HEAD
(MANUAL)CYLINDER HEAD
(MANUAL) -
1834778T2 CYLINDER HEADCYLINDER HEAD
-
28M0054272 GUIDEGUIDE
-
353-825038 CIRCLIPCIRCLIP
-
4826887M ANODEANODE
-
525-825040 GROMMETGROMMET
-
6826888M COVERCOVER
-
710-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
810-827607 BOLTBOLT
-
927-827610 GASKETGASKET
-
1010-84088M SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1127-827610 GASKETGASKET
-
1226-825048 SEAL, OilSEAL, Oil
-
1322-822644 PIPE PLUGPIPE PLUG
-
1425-893898 O-RINGO-RING
-
15893693A04 COVERCOVER
-
16NSS NOT SOLD SEPARATE, Decal-Servicing ReferralNOT SOLD SEPARATE, Decal-Servicing Referral
-
17NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve ClearanceNOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
-
1827-8M0118180 GASKETGASKET
-
1910-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
2010-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2110-82503395 SCREW, (M9 x 95)SCREW, (M9 x 95)
-
2217-825010 PIN, DowelPIN, Dowel
-
23859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
24NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
25855236 PLATE, BafflePLATE, Baffle
-
2610-4005785 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
2722-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
2822-825054 BREATHER PIPEBREATHER PIPE
-
29830294T1 BRACKET
(HANDLE)BRACKET
(HANDLE) -
3010-40011126 SCREW, (M6 x 13) Stainless Steel
(HANDLE)SCREW, (M6 x 13) Stainless Steel
(HANDLE) -
3154-65292 J CLIP
(USE WHERE APPLICABLE)J CLIP
(USE WHERE APPLICABLE) -
-27-825231A99 GASKET SET, EngineGASKET SET, Engine
-
-61-803017T01 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-803016T01 POWERHEAD ASSEMBLY
(BIGFOOT)POWERHEAD ASSEMBLY
(BIGFOOT)
