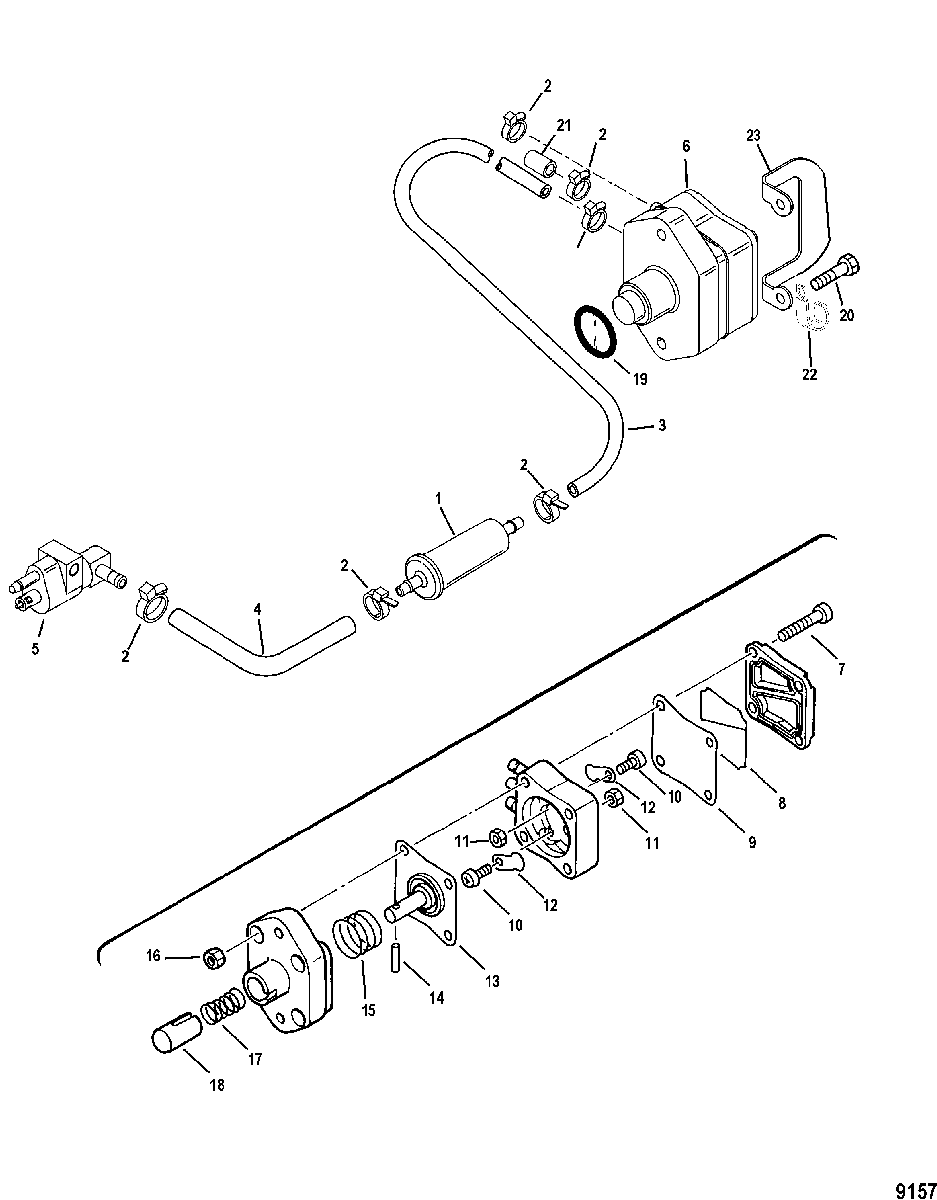

Fuel Pump для Mariner - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
135-877565T1 FILTER, FuelFILTER, Fuel
-
254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
332-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)
-
432-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)
-
522-816856A4 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
-25-16524 O-RING, Fuel ConnectorO-RING, Fuel Connector
-
6826398T3 PUMP, FuelPUMP, Fuel
-
710-809564 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
8809565 COVERCOVER
-
98095611 DIAPHRAGMDIAPHRAGM
-
1010-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
1111-82537M NUTNUT
-
1221-41888M CHECK VALVECHECK VALVE
-
138095612 DIAPHRAGMDIAPHRAGM
-
1417-8095661 PINPIN
-
1524-809562 SPRINGSPRING
-
1611-82388M NUT, (M5)NUT, (M5)
-
1724-8095621 SPRINGSPRING
-
188095631 PLUNGERPLUNGER
-
1925-8M0052669 O-RINGO-RING
-
2010-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2119-854310 PLUGPLUG
-
2254-55098 J CLIPJ CLIP
-
238M0007776 DEFLECTOR, CowlDEFLECTOR, Cowl
-
-27-825231A99 GASKET SET, EngineGASKET SET, Engine
