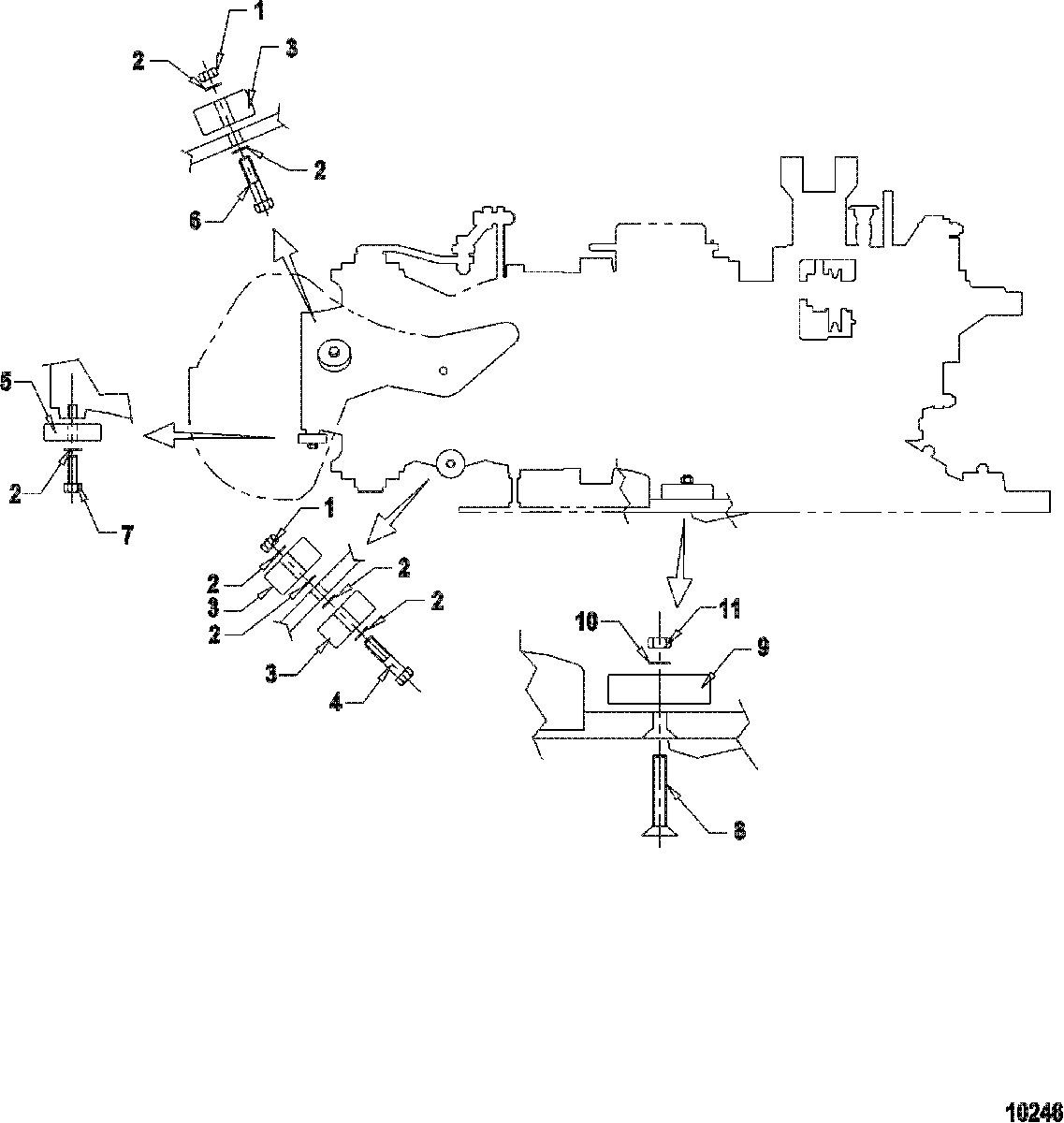

Anode для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
111-887266 NUT, (M8)NUT, (M8)
-
213-887267 WASHER, (M8)WASHER, (M8)
-
3886914 ANODE, Discharge NozzleANODE, Discharge Nozzle
-
3886915 ANODE, Reverse BucketANODE, Reverse Bucket
-
410-887265 BOLT, (M8 x Coarse @ 65)BOLT, (M8 x Coarse @ 65)
-
5886916 ANODE, Steering NozzleANODE, Steering Nozzle
-
610-887295 BOLT, (M8 x Coarse @ 45)BOLT, (M8 x Coarse @ 45)
-
710-887269 SET SCREW, (M8 Coarse) 20 Per PackageSET SCREW, (M8 Coarse) 20 Per Package
-
810-886860 SCREW, (.375 x 2.500)SCREW, (.375 x 2.500)
-
9848653T ANODEANODE
-
1013-886951 WASHER, (0.375)WASHER, (0.375)
-
1111-886921 NUT, (.375)NUT, (.375)
