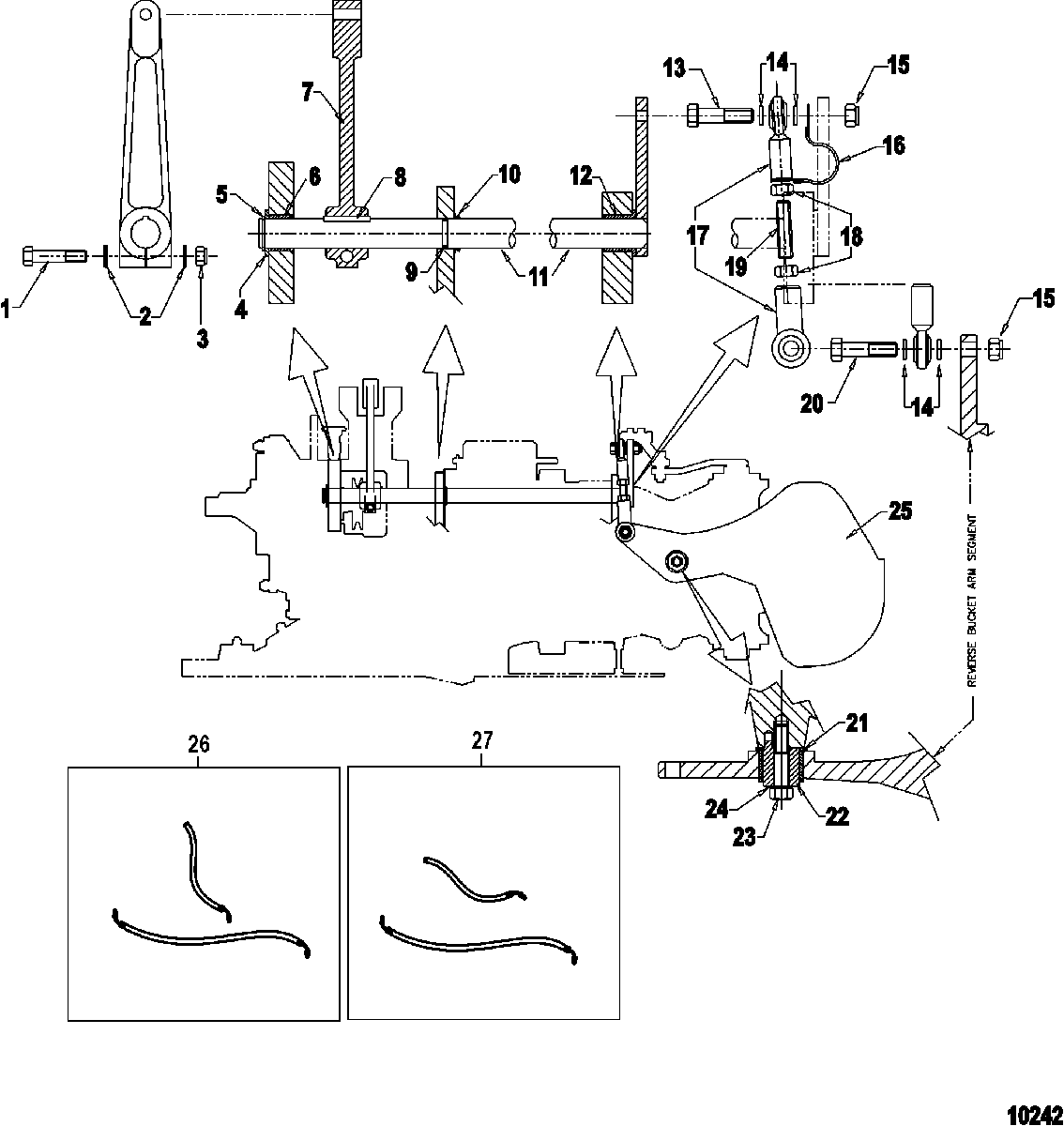

Reverse Detail для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
110-887260 BOLT, (M10 x Coarse @ 60)BOLT, (M10 x Coarse @ 60)
-
212-896379 WASHER, (M10)WASHER, (M10)
-
311-887223 LOCKNUT, (M10)LOCKNUT, (M10)
-
412-886894 WASHERWASHER
-
553-886893 CIRCLIPCIRCLIP
-
623-886892 BUSHING, BronzeBUSHING, Bronze
-
764-886901 INPUT TILLER , ReverseINPUT TILLER , Reverse
-
828-886902 KEYKEY
-
925-886891 O-RING, Steering Shaft SealO-RING, Steering Shaft Seal
-
1026-887255 SEALSEAL
-
1164-886900 SHAFT AND TILLER, ReverseSHAFT AND TILLER, Reverse
-
1223-887276 BUSHING, FlangedBUSHING, Flanged
-
1310-886906 BOLT, (.500 x 2.00)BOLT, (.500 x 2.00)
-
1423-886897 SPACERS ROD ENDSSPACERS ROD ENDS
-
1511-886908 LOCKNUT, (.50)LOCKNUT, (.50)
-
1684-896723A01 BONDING WIREBONDING WIRE
-
17887253 ROD ENDROD END
-
1811-886909 NUT, (.50)NUT, (.50)
-
19887264 THREADED ROD, (.500)THREADED ROD, (.500)
-
2010-886907 BOLT, (.500 x 2.250)BOLT, (.500 x 2.250)
-
2123-886903 BUSHING, Reverse GateBUSHING, Reverse Gate
-
2217-886895 PIN, Reverse GatePIN, Reverse Gate
-
2310-887256 BOLT, (M12 x Coarse @ 70)BOLT, (M12 x Coarse @ 70)
-
2412-887257 WASHER, (M12)WASHER, (M12)
-
25886899 GATE, ReverseGATE, Reverse
-
2632-80622136 HOSE
1.7HOSE
1.7 -
2632-80622216 HOSE
1.7HOSE
1.7 -
2732-8M0063021 HOSE, Pressure
2.8, 4.2HOSE, Pressure
2.8, 4.2 -
2732-865390068 HOSE, Return
2.8, 4.2HOSE, Return
2.8, 4.2
