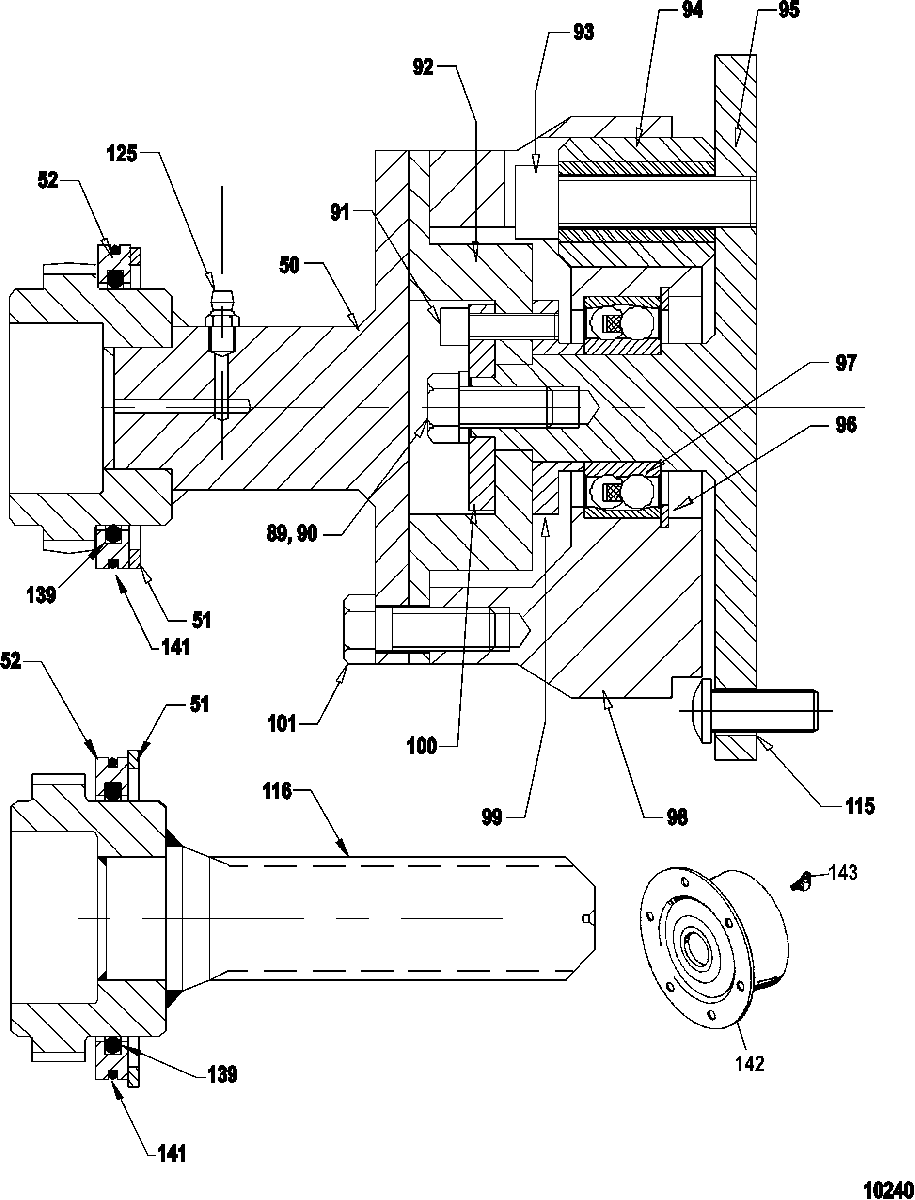

Drive Input(Cross Section D) для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
50887327 DRIVE PLATE, Input Gear, 1.7L DieselDRIVE PLATE, Input Gear, 1.7L Diesel
-
5127-887222 GASKET, AllGASKET, All
-
5225-890404 SEAL, Gear Coupling, NLA Order Kit 890404SEAL, Gear Coupling, NLA Order Kit 890404
-
8910-887340 SCREW, (M10) 25 Per Package, 1.7L DieselSCREW, (M10) 25 Per Package, 1.7L Diesel
-
9012-887337 WASHER, (M10), 1.7L DieselWASHER, (M10), 1.7L Diesel
-
9110-887338 SCREW, (M6) 20 Per Package, 1.7L DieselSCREW, (M6) 20 Per Package, 1.7L Diesel
-
92887324 COUPLER, 1.7L DieselCOUPLER, 1.7L Diesel
-
9310-887335 SCREW, 1.7L DieselSCREW, 1.7L Diesel
-
94821625 SNUBBER, 1.7L DieselSNUBBER, 1.7L Diesel
-
95200-887325 FLYWHEEL PLATE, 1.7L DieselFLYWHEEL PLATE, 1.7L Diesel
-
9654-887331 CIRCLIP, 1.7L DieselCIRCLIP, 1.7L Diesel
-
9731-887330 BEARING, 1.7L DieselBEARING, 1.7L Diesel
-
98887326 ALLY HUB, 1.7L DieselALLY HUB, 1.7L Diesel
-
99887329 BACKING RING, 1.7L DieselBACKING RING, 1.7L Diesel
-
10012-887328 DRIVE WASHER, 1.7L DieselDRIVE WASHER, 1.7L Diesel
-
10110-887336 BOLT, (M10 @ 25), 1.7L DieselBOLT, (M10 @ 25), 1.7L Diesel
-
11510-887341 SCREW, (M10) 25 Per package, 1.7L DieselSCREW, (M10) 25 Per package, 1.7L Diesel
-
11643-887200 SPLINED SHAFT, Input Gear, Except 1.7L DieselSPLINED SHAFT, Input Gear, Except 1.7L Diesel
-
125887334 GREASE NIPPLE, 1.7L DieselGREASE NIPPLE, 1.7L Diesel
-
13925-890404 O-RING, (55 mm x 3.5 mm), NLA Order Kit 890404O-RING, (55 mm x 3.5 mm), NLA Order Kit 890404
-
14125-890404 O-RING, (70 mm x 2.0), NLA Order Kit 890404O-RING, (70 mm x 2.0), NLA Order Kit 890404
-
14218311A21 COUPLER, 2.8, 4.2L DieselCOUPLER, 2.8, 4.2L Diesel
-
14322-49099 FITTINGFITTING
-
-25-890404 SEAL/RING KITSEAL/RING KIT
