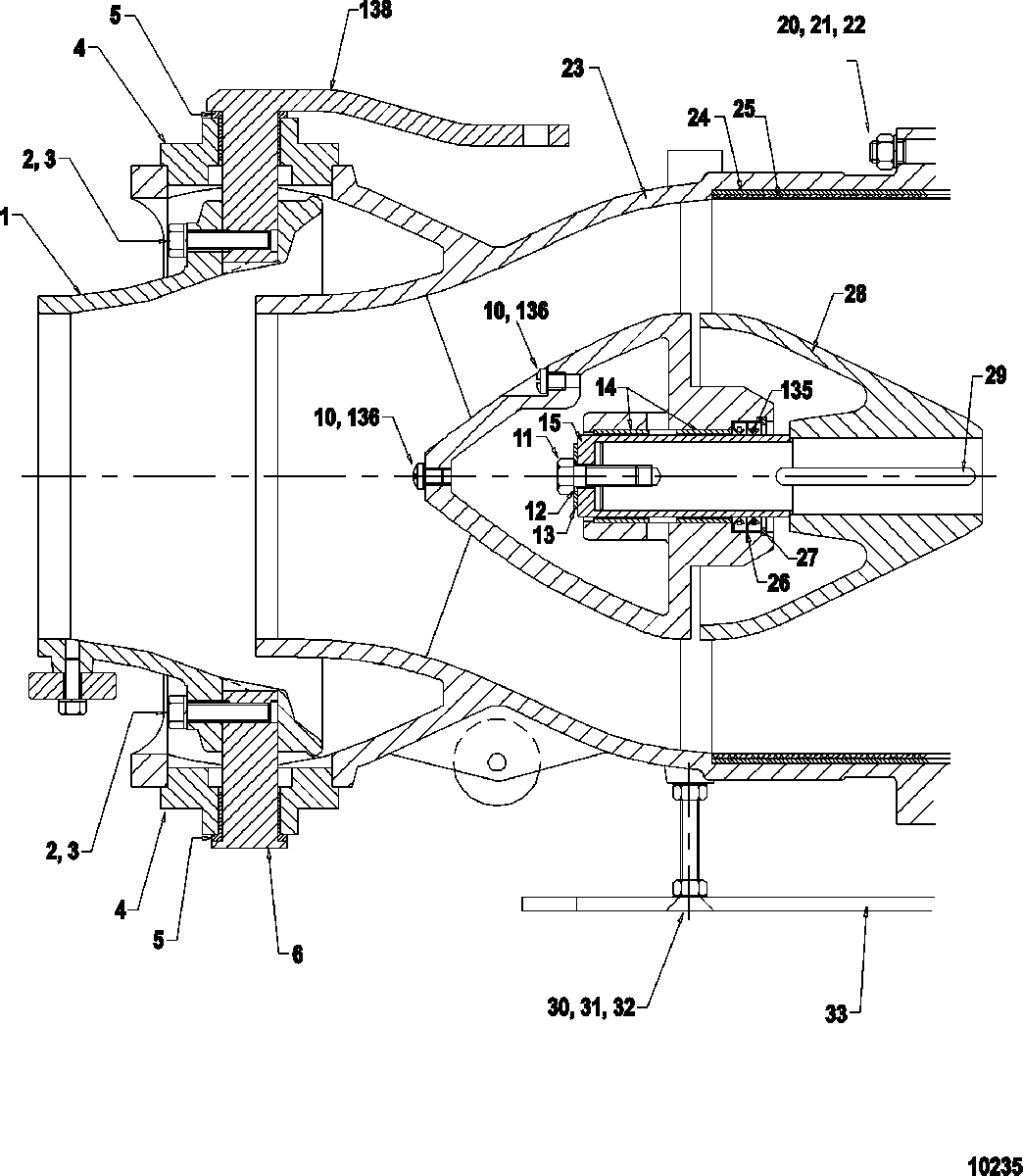

Nozzle Assembly(Cross Section A) для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
164-886927 NOZZLE, SteeringNOZZLE, Steering
-
210-887282 SET SCREW, (M10 Coarse) 40 Per PackageSET SCREW, (M10 Coarse) 40 Per Package
-
312-887281 WASHER, (M10)WASHER, (M10)
-
423-886931 BUSHING, Steering PivotBUSHING, Steering Pivot
-
523-887276 BUSHING, FlangedBUSHING, Flanged
-
664-887275 PIN, Tiller - Upper PivotPIN, Tiller - Upper Pivot
-
1010-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
1110-887216 BOLT, (M10 x 30)BOLT, (M10 x 30)
-
1225-887201 O-RING, Shaft Sleeve BoltO-RING, Shaft Sleeve Bolt
-
1312-887217 WASHER, (M14)WASHER, (M14)
-
1430-886877 BEARINGBEARING
-
1523-886830 SHAFT SLEEVESHAFT SLEEVE
-
2016-887250 STUD, (M10)STUD, (M10)
-
2112-896379 WASHER, (M10)WASHER, (M10)
-
2211-887223 LOCKNUT, (M10)LOCKNUT, (M10)
-
23886883 DISCHARGE NOZZLEDISCHARGE NOZZLE
-
24886880 LINER PLASTICLINER PLASTIC
-
25886881 LINER STAINLESS STEELLINER STAINLESS STEEL
-
2626-886875 SEALSEAL
-
2753-886878 CIRCLIPCIRCLIP
-
2847-887494 IMPELLER, SteelIMPELLER, Steel
-
2928-887249 KEYKEY
-
3010-887224 SCREW, (M10 x 70)SCREW, (M10 x 70)
-
3112-887281 WASHER, (M10)WASHER, (M10)
-
3212-887257 WASHER, (M12)WASHER, (M12)
-
33886853 TRIM PLATETRIM PLATE
-
13525-886876 O-RING, Lip Seal SpringO-RING, Lip Seal Spring
-
13612-191833 WASHERWASHER
-
13817-886929 PIN, Lower PivotPIN, Lower Pivot
