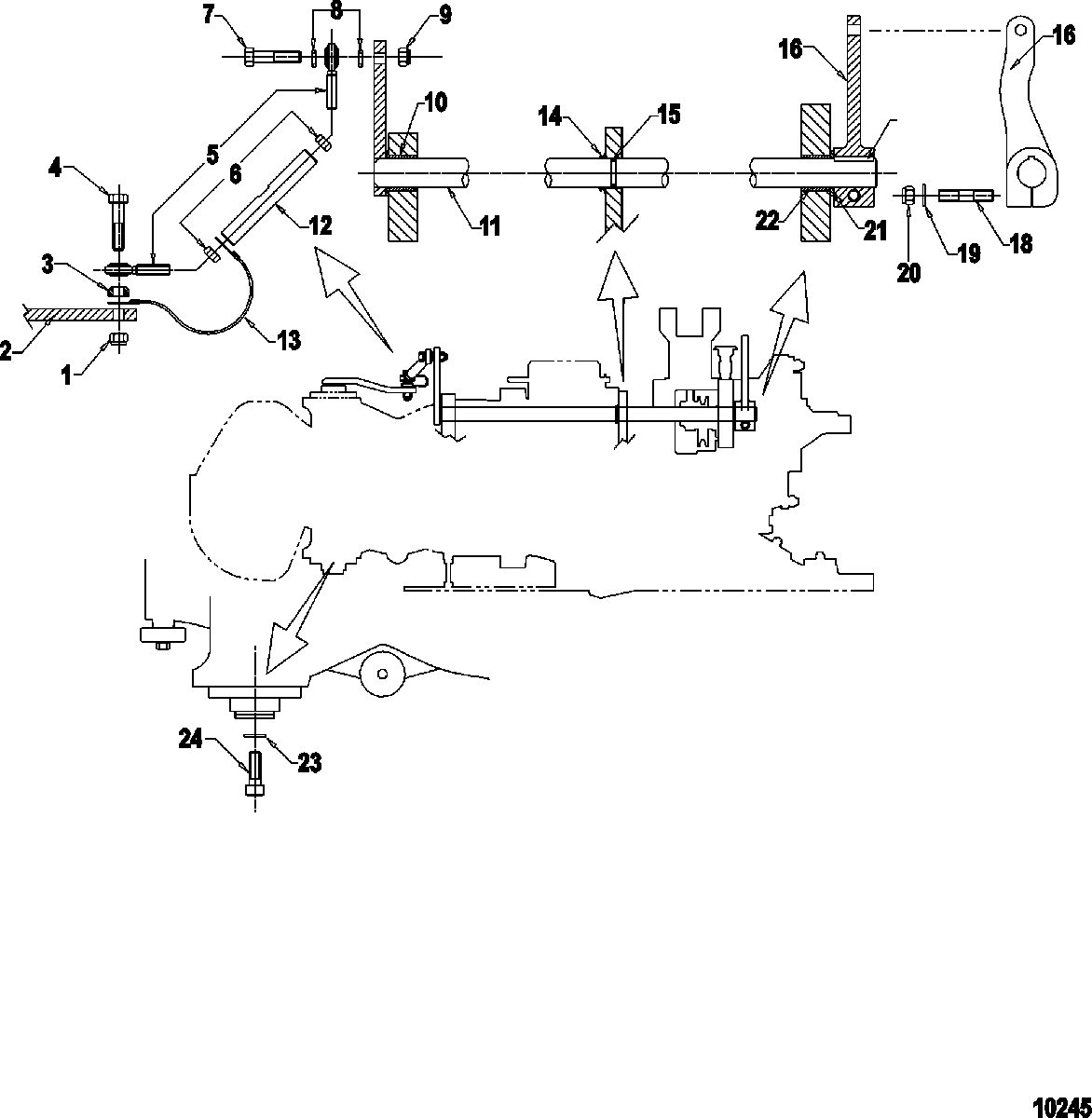

Steering для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
111-886959 NUT, (.375)NUT, (.375)
-
264-887275 PIN, Tiller - Upper PivotPIN, Tiller - Upper Pivot
-
323-887272 SPACER, Rod EndSPACER, Rod End
-
410-887284 BOLT, (.375 x 1.750)BOLT, (.375 x 1.750)
-
5887270 ROD ENDROD END
-
611-887285 NUT, (.375)NUT, (.375)
-
710-887283 BOLT, (.375 x 1.500)BOLT, (.375 x 1.500)
-
823-887273 SPACER, Rod EndSPACER, Rod End
-
911-886959 NUT, (.375)NUT, (.375)
-
1023-887276 BUSHING, FlangedBUSHING, Flanged
-
1164-886930 SHAFT AND TILLER, SteeringSHAFT AND TILLER, Steering
-
12887271 TIE RODTIE ROD
-
1384-896723A01 BONDING WIREBONDING WIRE
-
1426-887255 SEALSEAL
-
1525-886891 O-RING, Steering Shaft SealO-RING, Steering Shaft Seal
-
1664-886933 INPUT TILLER, SteeringINPUT TILLER, Steering
-
1728-886932 KEYKEY
-
1816-887278 STUD, (M10)STUD, (M10)
-
1912-896379 WASHER, (M10)WASHER, (M10)
-
2011-887223 LOCKNUT, (M10)LOCKNUT, (M10)
-
2112-886894 WASHERWASHER
-
2223-886892 BUSHING, BronzeBUSHING, Bronze
-
2312-887281 WASHER, (M10)WASHER, (M10)
-
2410-887280 SCREW, (M10 Coarse) Socket Head - 30 Per packageSCREW, (M10 Coarse) Socket Head - 30 Per package
