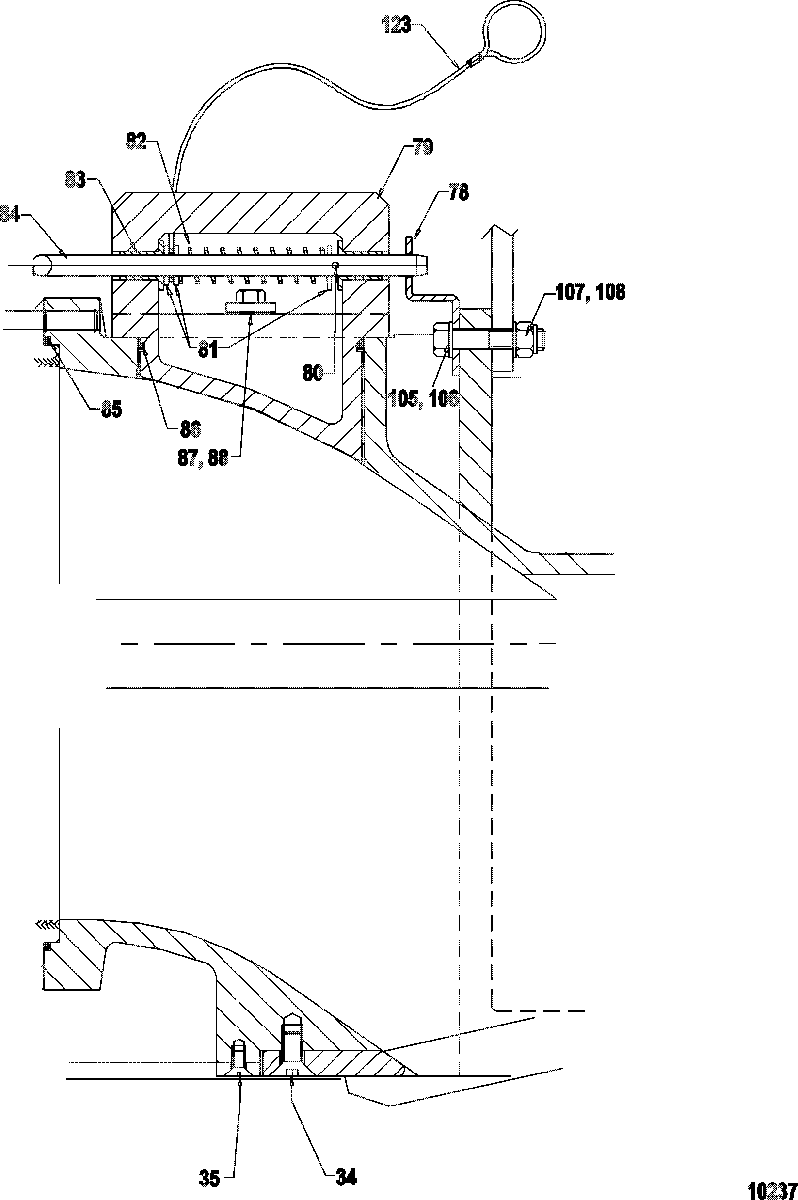

Inspection Cover and Trim Plate(Cross Section B) для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
3410-887228 SCREW, (M10 x 20)SCREW, (M10 x 20)
-
3510-887227 SCREW, (M6 Coarse) 15 Per PackageSCREW, (M6 Coarse) 15 Per Package
-
7838-887242 STRIKER PLATESTRIKER PLATE
-
79887240 INSPECTION COVERINSPECTION COVER
-
8017-887248 PIN, Split (M3 x 25)PIN, Split (M3 x 25)
-
8112-896379 WASHER, (M10)WASHER, (M10)
-
8224-887243 SPRINGSPRING
-
8323-887245 BUSHING, FlangedBUSHING, Flanged
-
8410-887241 LOCK BOLTLOCK BOLT
-
8525-886879 O-RING, Flange SealO-RING, Flange Seal
-
8625-887239 O-RING, Inspection CoverO-RING, Inspection Cover
-
8717-887244 PIN, FlangedPIN, Flanged
-
8810-887246 BOLT, (M10 x Coarse @ 35)BOLT, (M10 x Coarse @ 35)
-
10510-887235 BOLT, (M10 x 50)BOLT, (M10 x 50)
-
10612-896379 WASHER, (M10)WASHER, (M10)
-
10712-887230 WASHER, (M10)WASHER, (M10)
-
10811-887223 LOCKNUT, (M10)LOCKNUT, (M10)
-
123886870 TETHERTETHER
