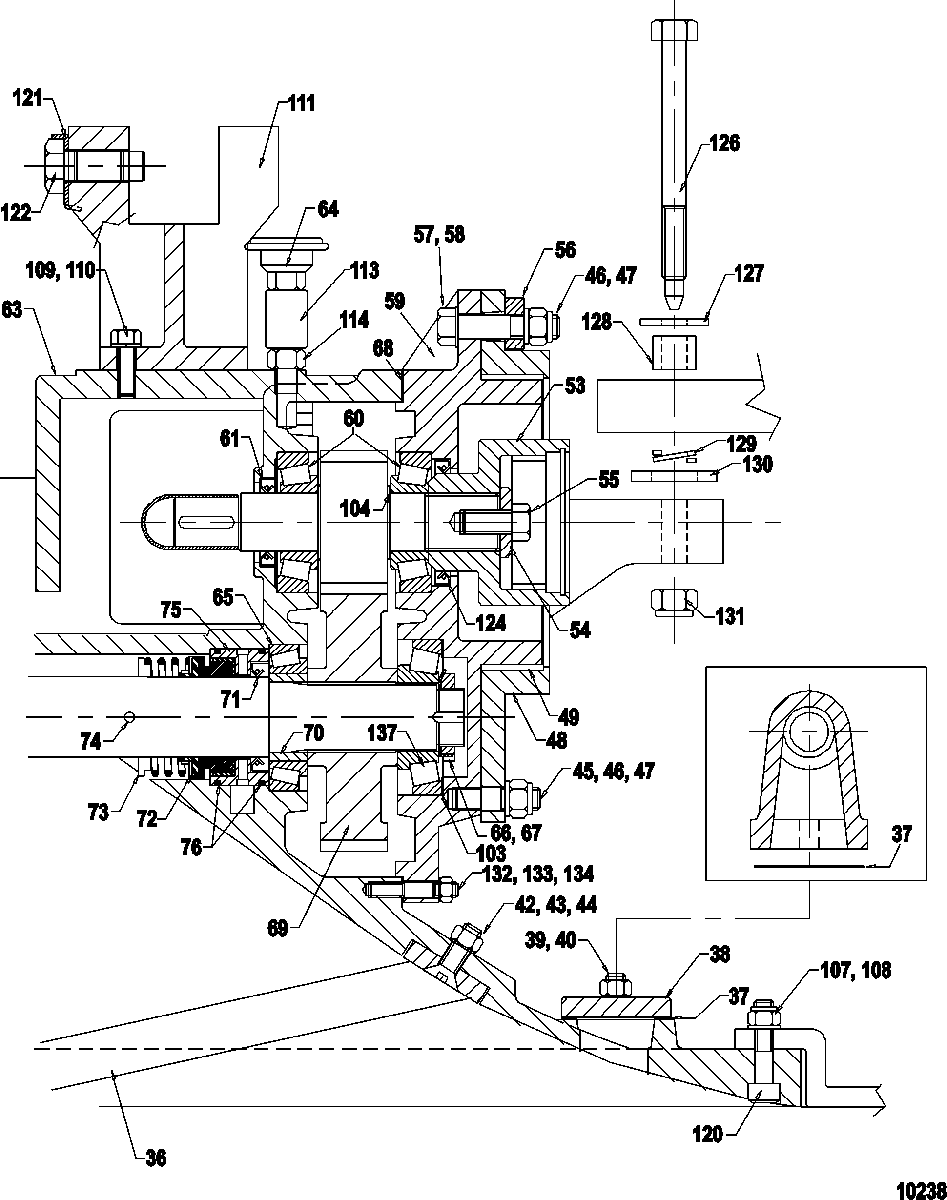

Drive Reduction(Cross Section C) для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
36886854 GRATE, IntakeGRATE, Intake
-
3727-887222 GASKETGASKET
-
38887221 BLANKING PLATE, Water Take OffBLANKING PLATE, Water Take Off
-
3916-896379001 STUD, (M10)STUD, (M10)
-
4012-896379 WASHER, (M10)WASHER, (M10)
-
4210-887229 SCREW, (M10 Coarse) 40 Per PackageSCREW, (M10 Coarse) 40 Per Package
-
4312-887230 WASHER, (M10)WASHER, (M10)
-
4411-896379002 NUT, (M10)NUT, (M10)
-
4411-887223 LOCKNUT, (M10)LOCKNUT, (M10)
-
4516-886847 STUD, (M12)STUD, (M12)
-
4612-886846 WASHER, (.500 x 1.00 x .125)WASHER, (.500 x 1.00 x .125)
-
4711-886843 LOCKNUT, (M12)LOCKNUT, (M12)
-
48886828 PLATE, Engine MountPLATE, Engine Mount
-
4985-886832 BEARING, Engine MountBEARING, Engine Mount
-
5343-887198 GEAR COUPLINGGEAR COUPLING
-
5412-887199 WASHER, Gear CouplingWASHER, Gear Coupling
-
5510-887212 SET SCREW, (M12 x 25)SET SCREW, (M12 x 25)
-
56887202 WASHER PLATEWASHER PLATE
-
5710-887210 BOLT, (M12 x 50)BOLT, (M12 x 50)
-
5812-887257 WASHER, (M12)WASHER, (M12)
-
591100-886825 END COVEREND COVER
-
6031-887181 BEARINGBEARING
-
6126-886804 SEAL, (46 x 30 x 7)SEAL, (46 x 30 x 7)
-
63886852 BODY, IntakeBODY, Intake
-
64887182 BREATHERBREATHER
-
6531-887180 BEARINGBEARING
-
6611-886835 NUT, (M30 x 1.50)NUT, (M30 x 1.50)
-
6713-886836 LOCKING WASHERLOCKING WASHER
-
6827-886831 GASKETGASKET
-
6943-887489 GEAR SET, (27/36) (1.33:1 Ratio)GEAR SET, (27/36) (1.33:1 Ratio)
-
6943-887484 GEAR SET, (22/41) (1.86:1 Ratio)GEAR SET, (22/41) (1.86:1 Ratio)
-
6943-887485 GEAR SET, (23/40) (1.73:1 Ratio)GEAR SET, (23/40) (1.73:1 Ratio)
-
6943-887486 GEAR SET, (24/39) (1.62:1 Ratio)GEAR SET, (24/39) (1.62:1 Ratio)
-
6943-887487 GEAR SET, (25/38) (1.52:1 Ratio)GEAR SET, (25/38) (1.52:1 Ratio)
-
6943-887488 GEAR SET, (26/37) (1.42:1 Ratio)GEAR SET, (26/37) (1.42:1 Ratio)
-
7023-886833 SLEEVE, BearingSLEEVE, Bearing
-
7126-886802 SEAL, (2.250 x 1.625 x .375)SEAL, (2.250 x 1.625 x .375)
-
7226-886839 SEALSEAL
-
7318-886806 RETAINER, SpringRETAINER, Spring
-
7418-887206 PIN, Split (M4 x 50)PIN, Split (M4 x 50)
-
7526-886829 CARRIER, SealCARRIER, Seal
-
7625-886837 O-RING, Seal CarrierO-RING, Seal Carrier
-
10315-887204 SHIM, Driven GearSHIM, Driven Gear
-
10415-887203 SHIM, Pinion GearSHIM, Pinion Gear
-
10712-887230 WASHER, (M10)WASHER, (M10)
-
10811-887223 LOCKNUT, (M10)LOCKNUT, (M10)
-
10910-887258 SET SCREW, (M10 Coarse) 30 Per PackageSET SCREW, (M10 Coarse) 30 Per Package
-
11012-896379 WASHER, (M10)WASHER, (M10)
-
111886898 MOUNT, Power CylinderMOUNT, Power Cylinder
-
11322-887184 SOCKET, (0.375)SOCKET, (0.375)
-
11422-887183 HEX NIPPLE, (0.375)HEX NIPPLE, (0.375)
-
12010-887234 SCREW, (M10 Coarse)SCREW, (M10 Coarse)
-
12110-8M0113173 BOLTBOLT
-
12214-42254 WASHERWASHER
-
12426-886803 SEAL, (65 x 50 x 8)SEAL, (65 x 50 x 8)
-
12610-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
12712-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
12823-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
12913-33734 LOCKWASHER, (.500)LOCKWASHER, (.500)
-
13012-32834 WASHER, (.9375 x 1.750 x .172)WASHER, (.9375 x 1.750 x .172)
-
13111-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
13216-887207 STUD, (M8)STUD, (M8)
-
13312-887208 WASHER, (M8)WASHER, (M8)
-
13411-887297 LOCKNUT, (M8)LOCKNUT, (M8)
-
13731-887205 BEARINGBEARING
