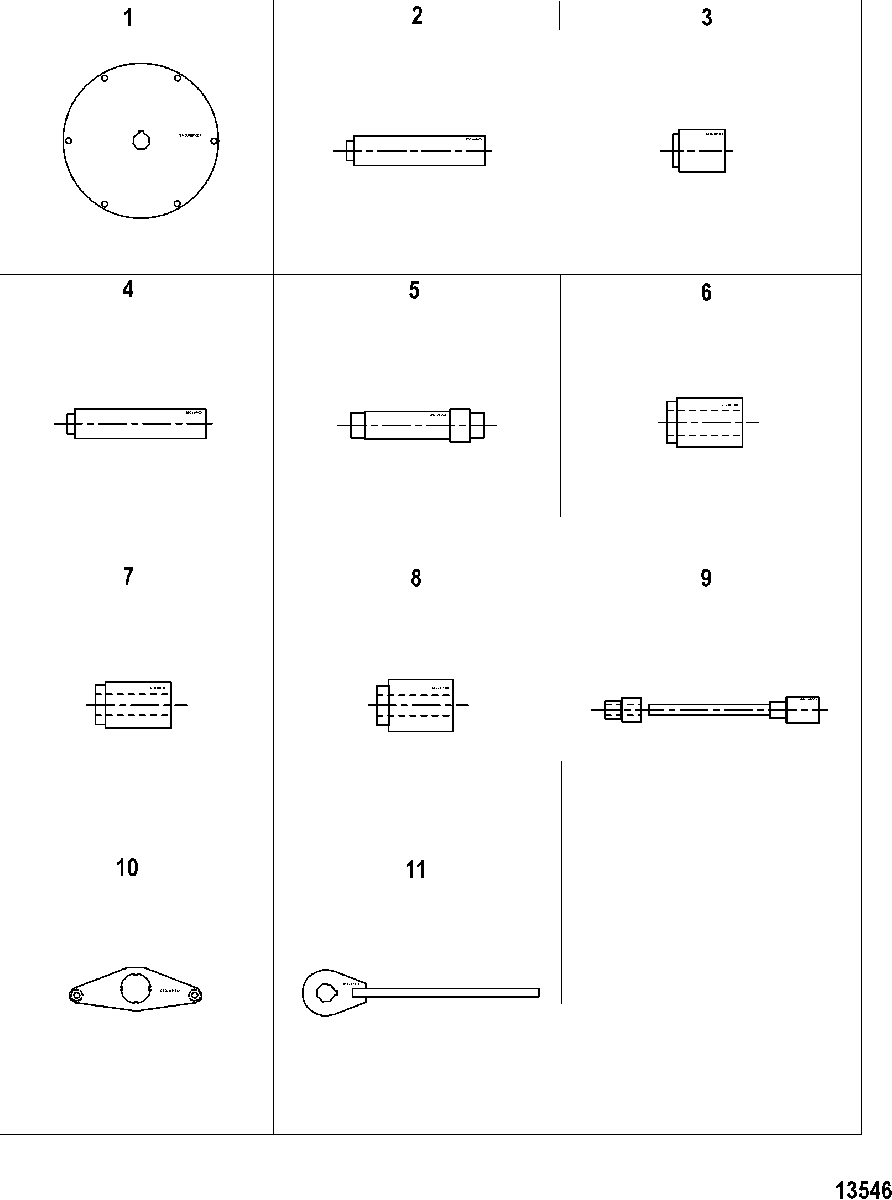

Special Tools для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
91-887532 TOOL KIT
(MCR Jet)TOOL KIT
(MCR Jet) -
191-890036 TOOL, Shaft SupportTOOL, Shaft Support
-
291-887499 TOOL, Carrier Assembly Seal InstallationTOOL, Carrier Assembly Seal Installation
-
391-887500 TOOL, Bearing Driver
(INTAKE BODY)TOOL, Bearing Driver
(INTAKE BODY) -
491-887501 TOOL, Bearing Driver
(GEARBOX)TOOL, Bearing Driver
(GEARBOX) -
591-887502 TOOL, Bearing Driver
(REAR BEARING, DISCHARGE NOZZLE)TOOL, Bearing Driver
(REAR BEARING, DISCHARGE NOZZLE) -
691-887503 TOOL, Bearing Driver
(GEARBOX TAPER ROLLER BEARING)TOOL, Bearing Driver
(GEARBOX TAPER ROLLER BEARING) -
791-887504 TOOL, Bearing Driver
(PINION GEAR OUTER RACE)TOOL, Bearing Driver
(PINION GEAR OUTER RACE) -
891-887505 TOOL, Bearing Driver
(PINION GEAR INNER RACE)TOOL, Bearing Driver
(PINION GEAR INNER RACE) -
991-887506 TOOL, Bushing DriverTOOL, Bushing Driver
-
1091-887508 TOOL, Main Shaft Lock Nut RemovalTOOL, Main Shaft Lock Nut Removal
-
1191-887509 TOOL, Main Shaft Lock Nut HolderTOOL, Main Shaft Lock Nut Holder
