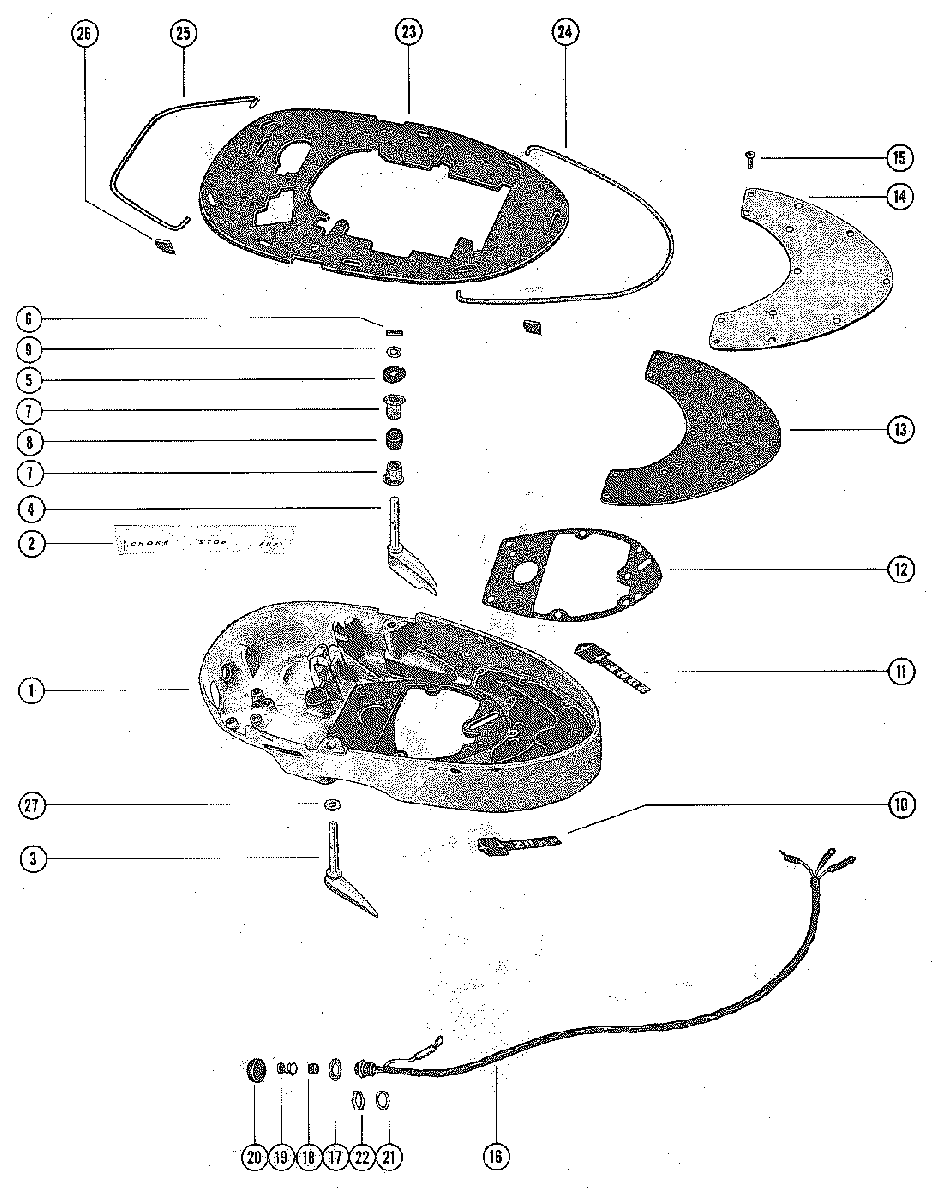

BOTTOM COWL ASSEMBLY для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
1199-2092A2 BOTTOM COWL ASSEMBLY (SEE NOTE BELOW)BOTTOM COWL ASSEMBLY (SEE NOTE BELOW)
-
237-33751 DECAL, CHOKE - STOP - FUELDECAL, CHOKE - STOP - FUEL
-
237-35746 DECAL, CHOKE - STOP - FUELDECAL, CHOKE - STOP - FUEL
-
334046 LEVER, CLAMPING - PORTLEVER, CLAMPING - PORT
-
434045 LEVER, CLAMPING - STARBOARDLEVER, CLAMPING - STARBOARD
-
511-30428 FASTENER, CLAMPING LEVERFASTENER, CLAMPING LEVER
-
617-29077 PIN, ROLL - CLAMPING LEVERPIN, ROLL - CLAMPING LEVER
-
723-26819 BUSHING, NYLON - CLAMPING LEVER SHAFTBUSHING, NYLON - CLAMPING LEVER SHAFT
-
723-26819 BUSHING, NYLON - CLAMPING LEVER SHAFTBUSHING, NYLON - CLAMPING LEVER SHAFT
-
823-31293 BUSHING, RUBBER - CLAMPING LEVER SHAFTBUSHING, RUBBER - CLAMPING LEVER SHAFT
-
912-38744 WASHER, CLAMPING LEVERWASHER, CLAMPING LEVER
-
1037-37793 DECAL, BOTTOM COWL - PORTDECAL, BOTTOM COWL - PORT
-
1137-37792 DECAL, BOTTOM COWL - STARBOARDDECAL, BOTTOM COWL - STARBOARD
-
1227-33515 GASKET, POWERHEAD TO BOTTOM COWLGASKET, POWERHEAD TO BOTTOM COWL
-
1327-33499 GASKET, EXHAUST RELIEF COVER TO BOTTOM COWLGASKET, EXHAUST RELIEF COVER TO BOTTOM COWL
-
1433498 COVER, EXHAUST RELIEFCOVER, EXHAUST RELIEF
-
1510-35519 SCREW, EXHAUST RELIEF COVER FASTENINGSCREW, EXHAUST RELIEF COVER FASTENING
-
--33474A1 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
1633474 HARNESS, STOP SWITCHHARNESS, STOP SWITCH
-
1712-30856 WASHER, SEALING - STOP SWITCHWASHER, SEALING - STOP SWITCH
-
1830859 INSULATOR, SLEEVE - INNER SWITCH TERMINALSINSULATOR, SLEEVE - INNER SWITCH TERMINALS
-
1924-30858A1 SPRING AND CONTACT ASSEMBLYSPRING AND CONTACT ASSEMBLY
-
2038950A1 COVER, STOP SWITCHCOVER, STOP SWITCH
-
2113-21972 LOCKWASHER, STOP SWITCH CONNECTORLOCKWASHER, STOP SWITCH CONNECTOR
-
2211-21971 NUT, STOP SWITCH CONNECTOR TO BOTTOM COWLNUT, STOP SWITCH CONNECTOR TO BOTTOM COWL
-
2335774 SEAL, SOUND - BOTTOM COWLSEAL, SOUND - BOTTOM COWL
-
2335774 SEA, SOUND - BOTTOM COWLSEA, SOUND - BOTTOM COWL
-
2428899 RETAINER, SOUND SEAL - REARRETAINER, SOUND SEAL - REAR
-
2533728 RETAINER, SOUND SEAL - FORWARDRETAINER, SOUND SEAL - FORWARD
-
2654-28901 FASTENER, SOUND SEAL TO BOTTOM COWLFASTENER, SOUND SEAL TO BOTTOM COWL
-
2712-20546 WASHER, PORT CLAMPING LEVER (NO LONGER REQUIRED)WASHER, PORT CLAMPING LEVER (NO LONGER REQUIRED)
