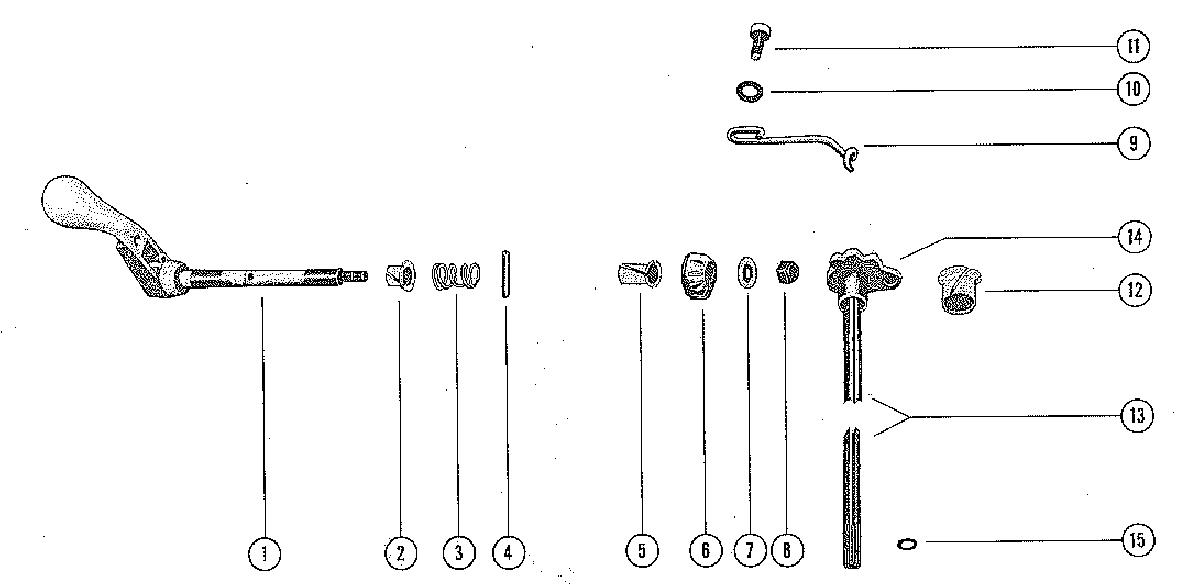

SHIFT CONTROL LINKAGE для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
133510 HANDLE, SHIFT CONTROLHANDLE, SHIFT CONTROL
-
223-30678 BUSHING, NYLON - SHIFT CONTROL HANDLEBUSHING, NYLON - SHIFT CONTROL HANDLE
-
324-30817 SPRING, TENSION - SHIFT CONTROL HANDLESPRING, TENSION - SHIFT CONTROL HANDLE
-
417-31224 PIN, DOWEL - TENSION SPRING TO HANDLEPIN, DOWEL - TENSION SPRING TO HANDLE
-
523-33462 BUSHING, NYLON - SHIFT CONTROL HANDLEBUSHING, NYLON - SHIFT CONTROL HANDLE
-
643-30802 GEAR, HORIZONTAL - SHIFT CONTROL HANDLEGEAR, HORIZONTAL - SHIFT CONTROL HANDLE
-
712-29245 WASHER, SHIFT CONTROL HANDLEWASHER, SHIFT CONTROL HANDLE
-
811-8267089 NUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLENUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLE
-
924-30816 SPRING, DETENT - SECTOR GEARSPRING, DETENT - SECTOR GEAR
-
1012-29245 WASHER, DETENT SPRING SCREWWASHER, DETENT SPRING SCREW
-
1110-55336 SCREW, DETENT SPRING TO BOTTOM COWLSCREW, DETENT SPRING TO BOTTOM COWL
-
1223-30677 BUSHING, NYLON - SHIFT CONTROL SHAFTBUSHING, NYLON - SHIFT CONTROL SHAFT
-
1333496A3 SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 00000000-00708178SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 00000000-00708178 -
1433496A3 GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 00000000-00708178GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 00000000-00708178 -
1333496A2 SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 01708179-01906565SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 01708179-01906565 -
1443-36423 GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 01708179-01906565GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 01708179-01906565 -
1333496A4 SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 01906566-09999999SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 01906566-09999999 -
1443-38729 GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 01906566-09999999GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 01906566-09999999 -
1525-38933 "O" RING - SHIFT CONTROL SHAFT
SERIAL 01906566-09999999"O" RING - SHIFT CONTROL SHAFT
SERIAL 01906566-09999999
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND THROTTLE CONTROL LINKAGE
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MAGNETO ASSEMBLY
- MISCELLANEOUS PARTS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- • SHIFT CONTROL LINKAGE
- STATOR PLATE ASSEMBLY
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY (MERC 200)
- TOP COWL AND STARTER ASSEMBLY (MERC 200-1 AND MERC 200-2)
