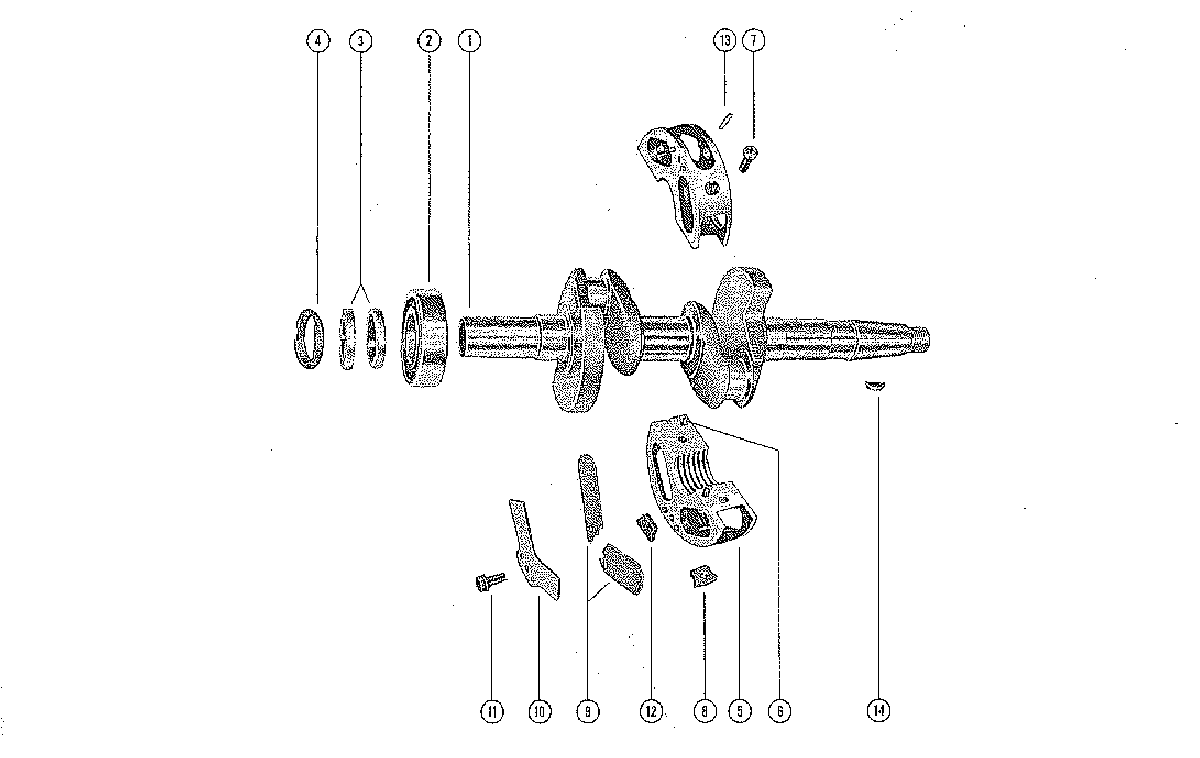

CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
1415-2295 CRANKSHAFT
SERIAL 00000000-01592567CRANKSHAFT
SERIAL 00000000-01592567 -
1415-2295 CRANKSHAFT
SERIAL 01592568-09999999CRANKSHAFT
SERIAL 01592568-09999999 -
230-63326T BEARING, BALL - CRANKCASE (LOWER)BEARING, BALL - CRANKCASE (LOWER)
-
326-16977 OIL SEAL, CRANKCASE (LOWER)OIL SEAL, CRANKCASE (LOWER)
-
423-33736 SPACER, PROTECTOR - CRANKSHAFTSPACER, PROTECTOR - CRANKSHAFT
-
5534-3267T25 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
617-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
710-25313 SCREW, CENTER MAIN BEARING CLAMPING (9/16)SCREW, CENTER MAIN BEARING CLAMPING (9/16)
-
811-29469 NUT, CENTER MAIN BEARING CLAMPING SCREWNUT, CENTER MAIN BEARING CLAMPING SCREW
-
934-88498A1 REED SET, CENTER MAIN BEARING (MATCHED)REED SET, CENTER MAIN BEARING (MATCHED)
-
1034-64632 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1110-77280 SCREW, REED SOTP MOUNTINGSCREW, REED SOTP MOUNTING
-
1211-29469 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
1317-20032 DOWEL PIN, MAIN BEARING TO CYLINDER BLOCKDOWEL PIN, MAIN BEARING TO CYLINDER BLOCK
-
1428-20094 KEY, FLYWHEELKEY, FLYWHEEL
