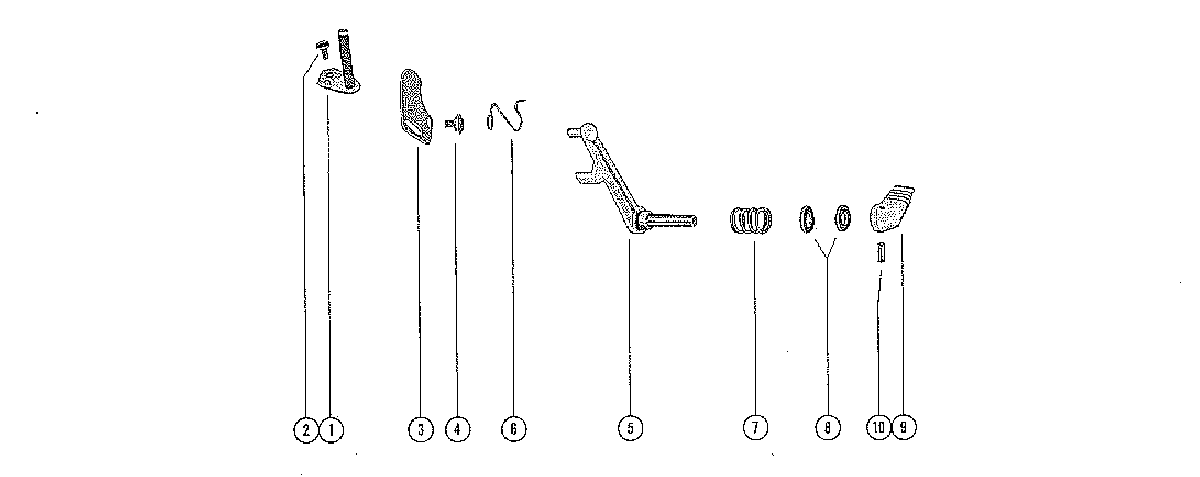

CARBURETOR CHOKE LINKAGE для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
122931A3 THROTTLE LEVER ASSEMBLYTHROTTLE LEVER ASSEMBLY
-
210-20597 SCREW, THROTTLE LEVER TO CARBURETORSCREW, THROTTLE LEVER TO CARBURETOR
-
328087 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
410-20578 SCREW, CHOKE SHUTTER TO CARBURETORSCREW, CHOKE SHUTTER TO CARBURETOR
-
533519 LEVER ASSEMBLY, CHOKE SHUTTERLEVER ASSEMBLY, CHOKE SHUTTER
-
624-20579 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
724-33517 SPRING, TENSION - CHOKE KNOBSPRING, TENSION - CHOKE KNOB
-
812-34437 WASHER, CHOKE SHUTTER LEVERWASHER, CHOKE SHUTTER LEVER
-
930822 KNOB, CHOKEKNOB, CHOKE
-
1017-22896 PIN, ROLL - CHOKE KNOB TO SHAFTPIN, ROLL - CHOKE KNOB TO SHAFT
