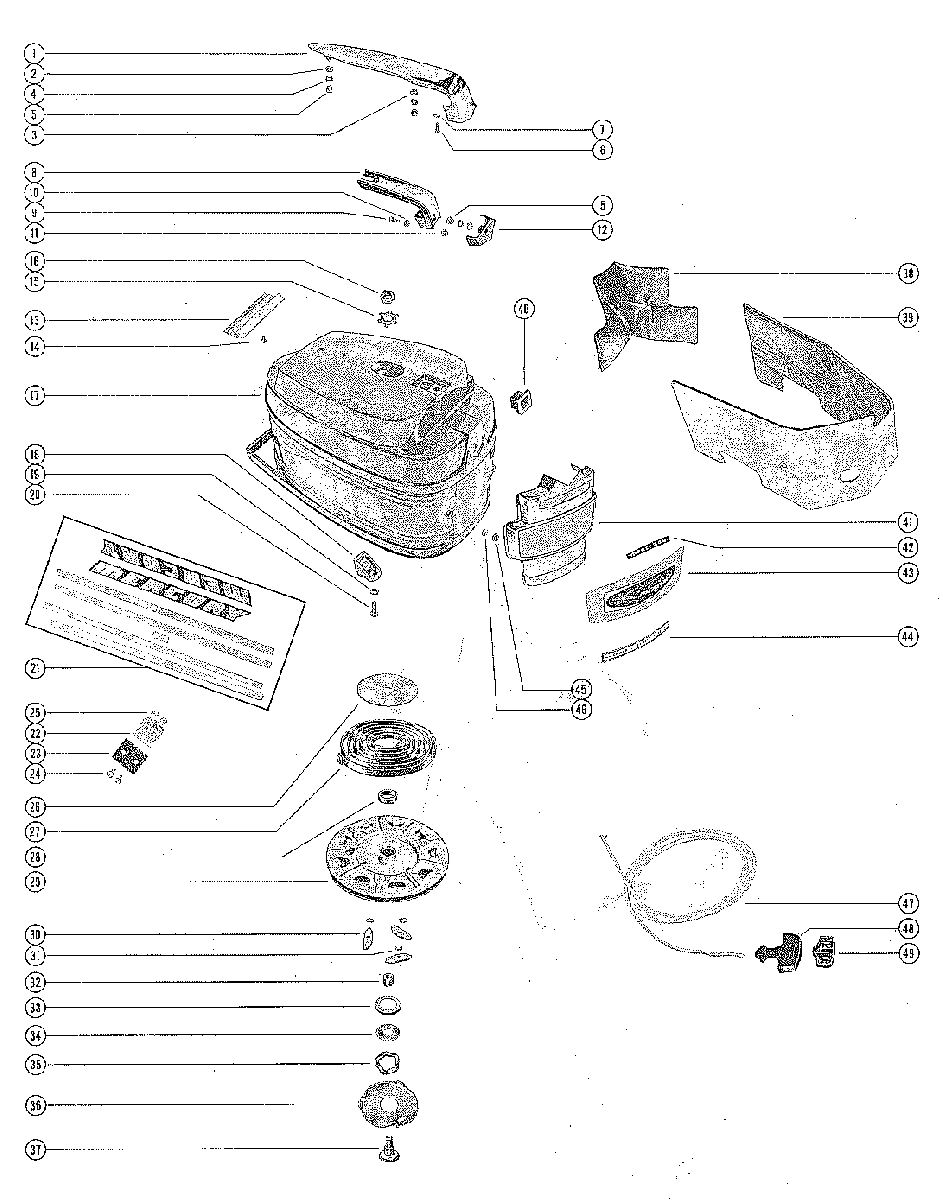

TOP COWL AND STARTER ASSEMBLY (MERC 200-1 AND MERC 200-2) для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
135655 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
212-22937 WASHER, CHROME HANDLE STUDWASHER, CHROME HANDLE STUD
-
312-29245 WASHER, INSIDE HANDLE TO CHROME HANDLE STUDWASHER, INSIDE HANDLE TO CHROME HANDLE STUD
-
413-26992 LOCKWASHER, CHROME HANDLE STUDLOCKWASHER, CHROME HANDLE STUD
-
511-20088 NUT, INSIDE HANDLE TO CHROME HANDLE STUDNUT, INSIDE HANDLE TO CHROME HANDLE STUD
-
610-28636 SCREW, INSIDE HANDLE TO CHROME HANDLESCREW, INSIDE HANDLE TO CHROME HANDLE
-
713-26992 LOCKWASHER, INSIDE HANDLE TO CHROME HANDLE SCREWLOCKWASHER, INSIDE HANDLE TO CHROME HANDLE SCREW
-
835661 HANDLE, INSIDE - TOP COWLHANDLE, INSIDE - TOP COWL
-
910-21091 SCREW, INSIDE HANDLE TO CHROME HANDLESCREW, INSIDE HANDLE TO CHROME HANDLE
-
1012-29245 WASHER, INSIDE HANDLE TO CHROME HANDLE SCREWWASHER, INSIDE HANDLE TO CHROME HANDLE SCREW
-
1111-24652 NUT, INSIDE HANDLE TO CHROME HANDLE SCREWNUT, INSIDE HANDLE TO CHROME HANDLE SCREW
-
1235384 KEY, TOP COWL HANDLEKEY, TOP COWL HANDLE
-
1335660 SCREEN, VENT - TOP COWLSCREEN, VENT - TOP COWL
-
1410-62568 SCREW, VENT SCREEN TO TOP COWLSCREW, VENT SCREEN TO TOP COWL
-
1514-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
1611-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
172112-2391 TOP COWLTOP COWL
-
1835659 BRACKET, FRONT - TOP COWL MOUNTINGBRACKET, FRONT - TOP COWL MOUNTING
-
1913-26993 LOCKWASHER, FRONT BRACKET MOUNTING SCREWLOCKWASHER, FRONT BRACKET MOUNTING SCREW
-
2010-35386 SCREW, FRONT BRACKET TO TOP COWLSCREW, FRONT BRACKET TO TOP COWL
-
2137-89323A80 DECAL SET, TOP COWL (NOT AS SHOWN)DECAL SET, TOP COWL (NOT AS SHOWN)
-
2137-89323A80 DECAL SET, TOP COWLDECAL SET, TOP COWL
-
2228113 BRACKET, TOP COWL FASTENINGBRACKET, TOP COWL FASTENING
-
2327-28448 GASKET, TOP COWL FASTENING BRACKETGASKET, TOP COWL FASTENING BRACKET
-
2410-29072 SCREW, BRACKET TO TOP COWLSCREW, BRACKET TO TOP COWL
-
2410-37656 SCREW, BRACKET TO TOP COWLSCREW, BRACKET TO TOP COWL
-
2511-27164 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
2620155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
2724-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2823-20159 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2950-64008A1 STARTER SHEAVE ASSEMBLYSTARTER SHEAVE ASSEMBLY
-
3020162 PAWL, STARTERPAWL, STARTER
-
3113-29402 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
3223-20158 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3326179 RETAINER, STARTER SHEAVE TO PLATERETAINER, STARTER SHEAVE TO PLATE
-
3412-26180 WASHER, STARTER SHEAVE RETAINERWASHER, STARTER SHEAVE RETAINER
-
3513-20160 WASHER, WAVE - STARTER SHEAVE TENSIONWASHER, WAVE - STARTER SHEAVE TENSION
-
3620164 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
3720157 SHAFT, SHEAVESHAFT, SHEAVE
-
3835776 BLANKET, SOUND ABSORBING - TOP COWL (REAR)BLANKET, SOUND ABSORBING - TOP COWL (REAR)
-
3935775 BLANKET, SOUND ABSORBING - TOP COWLBLANKET, SOUND ABSORBING - TOP COWL
-
4057821 INSERT, NYLON - ROPE GUIDE
NOTE: ORDER A-37938 ROPE GUIDE INSERT FOR ALL MERC 200-1 AND MERC 200L-1 ENGINES.INSERT, NYLON - ROPE GUIDE
NOTE: ORDER A-37938 ROPE GUIDE INSERT FOR ALL MERC 200-1 AND MERC 200L-1 ENGINES. -
412111-2388A3 COVER ASSEMBLY, FRONTCOVER ASSEMBLY, FRONT
-
412111-2388A3 COVER ASSEMBLY, FRONTCOVER ASSEMBLY, FRONT
-
4237-35678 DECAL, FRONT COVER ("MERC 200")DECAL, FRONT COVER ("MERC 200")
-
4237-37788 DECAL, FRONT COVER ("MERC 200")DECAL, FRONT COVER ("MERC 200")
-
4337-35697 DECAL, FRONT COVERDECAL, FRONT COVER
-
4337-37789 DECAL, FRONT COVERDECAL, FRONT COVER
-
4437-37787 DECAL, FRONT COVER ("CHOKE - STOP - FUEL")DECAL, FRONT COVER ("CHOKE - STOP - FUEL")
-
4512-29245 WASHER, FRONT COVER STUDWASHER, FRONT COVER STUD
-
4611-8267089 NUT, FRONT COVER TO TOP COWLNUT, FRONT COVER TO TOP COWL
-
4750-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
4828747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
4979470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINGGLUE, ADHESIVE - BLANKET FASTENING
